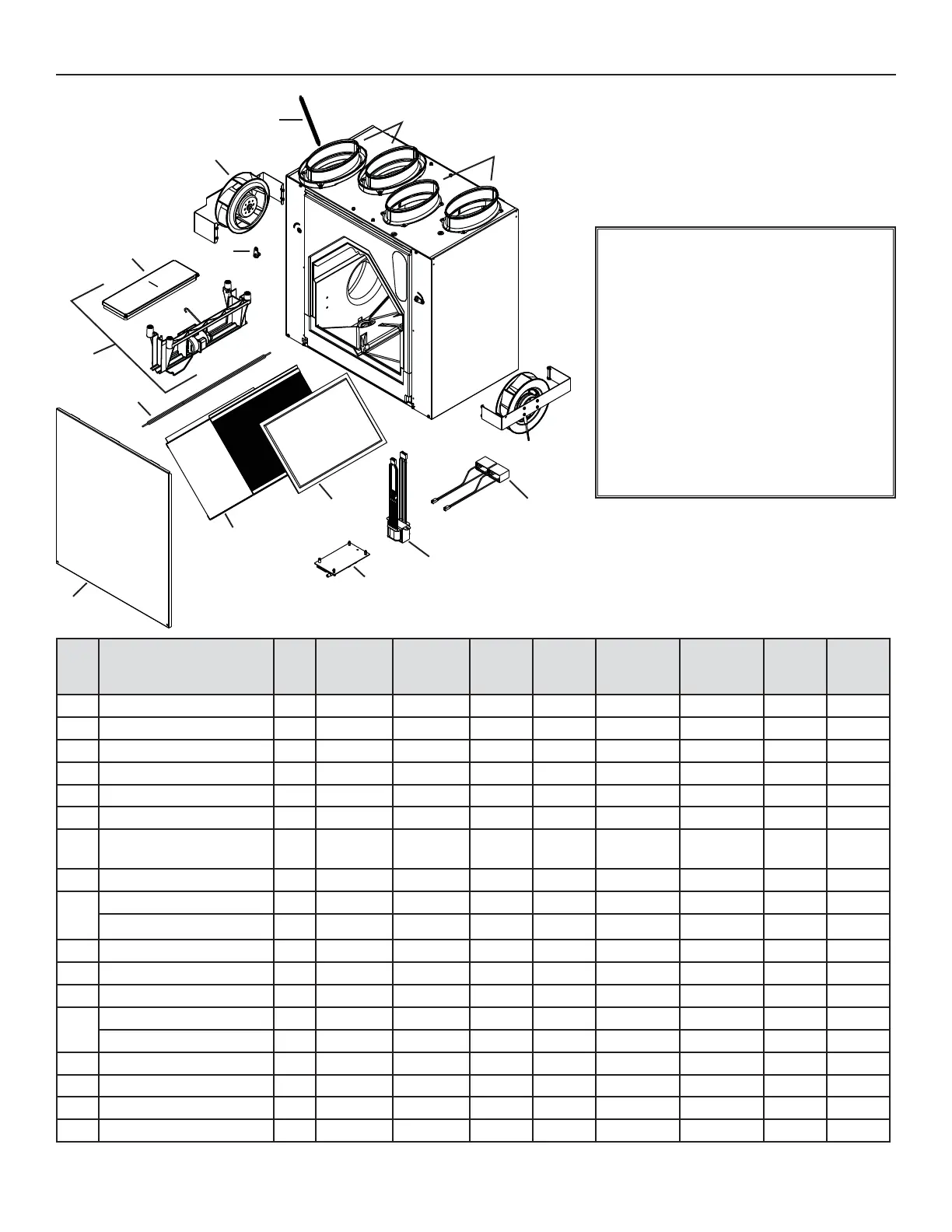

8. SERVICE PARTS
VL0036
1
2
3
4
6
7
8
10
9
8
11
12
13
5
REPLACEMENT PARTS AND REPAIR
In order to ensure your ventilation unit remains
in good working condition, you must use the
manufacturer genuine replacement parts only.
The manufacturer genuine replacement parts
are specially designed for each unit and are
manufactured to comply with all the applicable
certification standards and maintain a high
standard of safety. Any third party replacement
part used may cause serious damage and
drastically reduce the performance level of
your unit, which will result in premature failing.
The manufacturer recommends to contact
a certified service depot for all replacement
parts and repairs.
ITEM DESCRIPTION QTY.
AVS E15
ECM ERV
AVS E15
ECM HRV
AVS
E15
HRV
AVS
E10
HRV
90H-V
ECM ERV
90H-V
ECM HRV
90H-V+ 60H-V+
1O
VAL PORT 2 -- 18206 18206 18206 18206 18206 18206 18206
2D
OUBLE COLLAR OVAL PORT 2* 18207 18207 18207 18207 18207 18207 18207 18207
3E
XHAUST DAMPER SPRING 1 18221 18221 18221 18221 18221 18221 18221 18221
4M
OTOR ASSEMBLY 2 18198 18198 18197 18197 18198 18198 18197 18197
5B
ALANCING TOOL 2 18220 18220 18220 18220 18220 18220 18220 18220
6D
EFROST DAMPER 1 18200 18200 18200 18200 18200 18200 18200 18200
7
D
AMPER SYSTEM ASS’Y
(INCLUDING ITEM 6)
1 18199 18199 18199 18199 18199 18199 18199 18199
8C
ORE FILTER 2 18204 18205 18204 18204 18204 18205 18204 18204
9
HEAT RECOVERY CORE 1 -- 18202 62178 62178 -- 18202 62178 62178
E
NERGY RECOVERY CORE 1 18042 -- --
--
18042 -- -- --
10 D
OOR ASSEMBLY 1 18209 18209 18209 18209 18208 18208 18208 18208
11 PCB 1 18216 18216 62255 62255 18216 18216 62255 62255
12 T
RANSFORMER 1 18218 18218 18219 18219 18218 18218 18219 18219
13
CAPACITOR 5 μF 2 -- -- 16042 -- -- -- 16042 --
C
APACITOR 6 μF 2 -- -- -- 61550 -- -- -- 61550
14** T
HERMISTOR KIT 1 15749 15749 15749 15749 15749 15749 15749 15749
15** H
ARDWARE KIT 1 08917 08304 08304 08304 08917 08304 08304 08304
16** C
APACITOR 17 μF 1 -- -- -- 62177 -- -- -- 62177
17** PCB C
ONNECTOR 1 16416 16416 16416 16416 16416 16416 16416 16416
* Quantity of 4 for E15 ECM ERV units only.
** Not shown.
