Venmar AVS E15 ECM ERV - 1 Technical Data; Air Distribution; Defrost Cycles; Dimensions

4

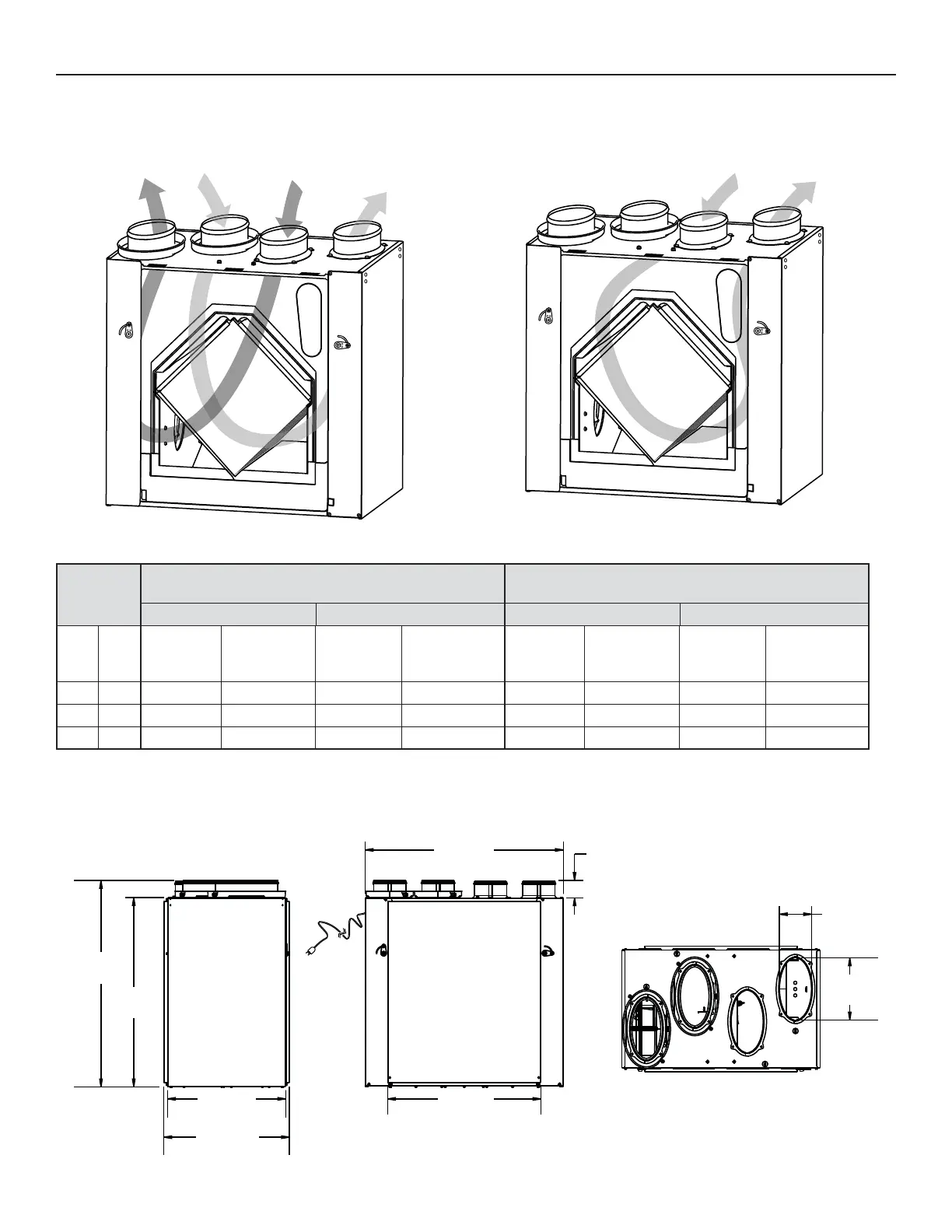

1. TECHNICAL DATA
1.1 AIR DISTRIBUTION
NORMAL OPERATION DEFROST OR RECIRCULATION
VF0045
VF0046
STALE AIR
TO OUTDOORS
FRESH AIR
FROM OUTDOORS
STALE AIR
FROM
BUILDING
FRESH AIR
TO
BUILDING
STALE AIR
FROM
BUILDING
FILTERED AIR
TO
BUILDING
1.2 DEFROST CYCLES
OUTDOOR
TEMPERATURE
AVS E15 ECM ERV, AVS E15 ECM HRV,
90H-V ECM ERV AND 90H-V ECM HRV UNITS
AVS E15 HRV, AVS E10 HRV, 90H-V+ AND 60H-V+ UNITS
NORMAL DEFROST CYCLE (MIN)EXTENDED DEFROST CYCLE (MIN)NORMAL DEFROST CYCLE (MIN)EXTENDED DEFROST CYCLE (MIN)
°C °F D
EFROSTING
OPERATION
BETWEEN EACH
DEFROST
DEFROSTING
OPERATION
BETWEEN EACH
DEFROST
DEFROSTING
OPERATION
BETWEEN EACH
DEFROST
DEFROSTING
OPERATION
BETWEEN EACH
DEFROST
-5 23 7 25 9 23 5 40 9 30
-15 5 7 25 9 23 5 25 9 23
-27 -17 10 22 10 22 8 22 10 15
In a cold region, (outdoor temperature -27°C [-17°F] and lower), it may be necessary to setup EXTENDED DEFROST.
See Section 4.3 or 4.4, according to the unit model.
1.3 DIMENSIONS
24
9
/16”
(624 mm)
22 ½”
(572 mm)
14
1
/16”
(358 mm)
14
15
/16”
(380 mm)
18 ¼”
(464 mm)
2 ¹/
16”
(53 mm)
23
9
/16”
(599 mm)
3
13
/16”
(97 mm)
7
7
/16”
(189 mm)
VK0066A
NOTE: Every port fits 6” round duct.
