INSTALLATION MANUAL
INSTALLATION
21

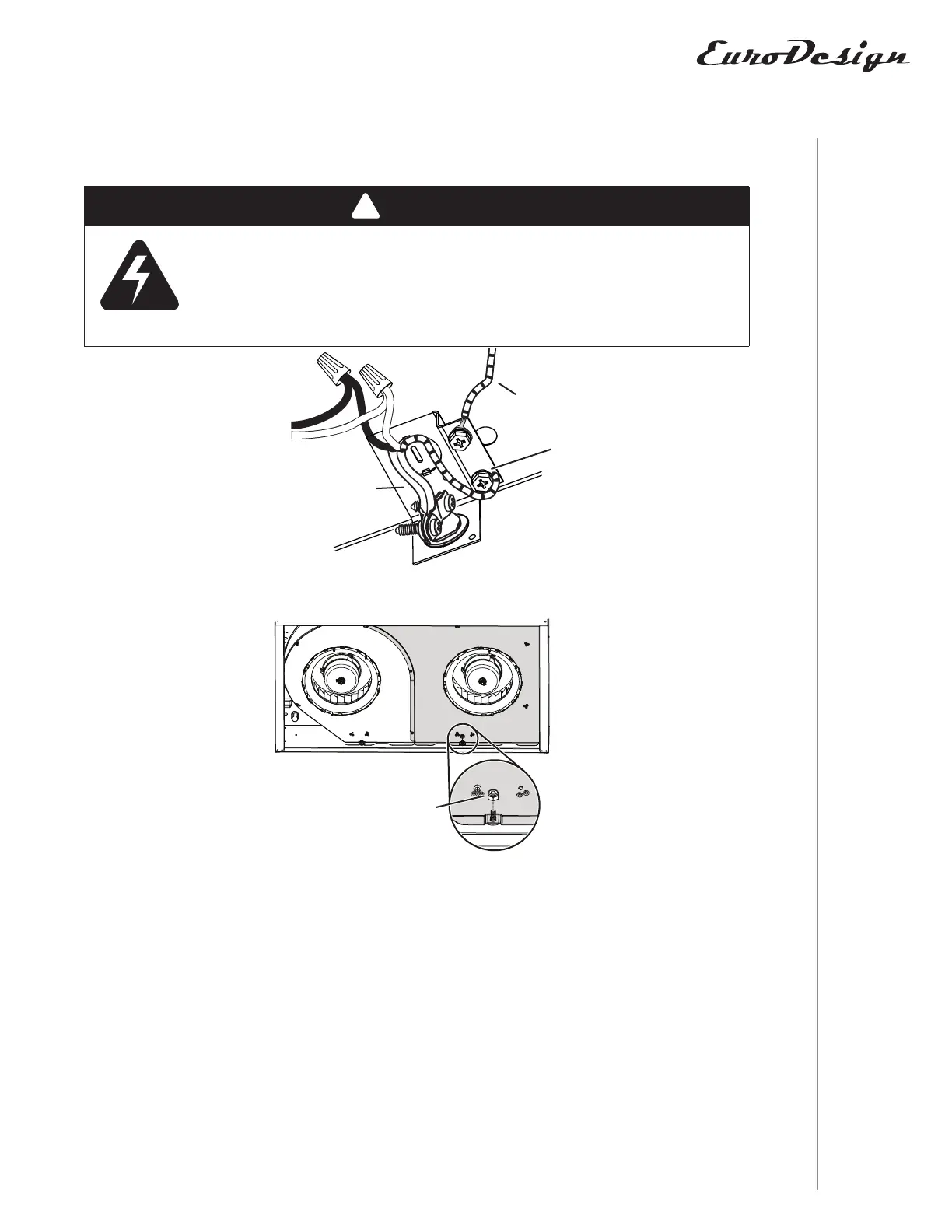

Connect the Wiring
1 ] Connect House Power Cable to range hood wiring: BLACK to BLACK, WHITE to WHITE and
GREEN or bare wire under GREEN ground screw.
2 ] Reinstall the blower cover plate (shaded part on illustration above) using the lock nut and
the 7 screws previously removed in step 4 on page 10. Pay attention to screw 1 location;
from back of hood point of view, it must be located on left side of the lock nut (see inset).
!
WARNING
Risk of electric shock. Electrical wiring must be done by qualifi ed
personnel in accordance with all applicable codes and standards.
Before connecting wires, switch power off at service panel and lock
service disconnecting means to prevent power from being switched
on accidentally.
MOTORS
GROUND
WIRE
HOUSE
POWER CABLE
GROUND
SCREW
1
2
3
45
6
7
Install the Filters
Ducted Installation Only:
Re-install grease filters removed in step 3 , page 10, under “Prepare the Hood”.
Non-ducted Installation Only:
Purchase two non-ducted filters from your local distributor or retailer (see product specification
label for filter type). Attach the non-ducted filters following instructions packed with the
non-ducted filters.
BACK OF HOOD
1
LOCK NUT
To Next Page
