INSTALLATION MANUAL
INSTALLATION
10
B
C
Prepare the Hood
1 ] If present, remove all protective polyfilm from the hood and/or parts.

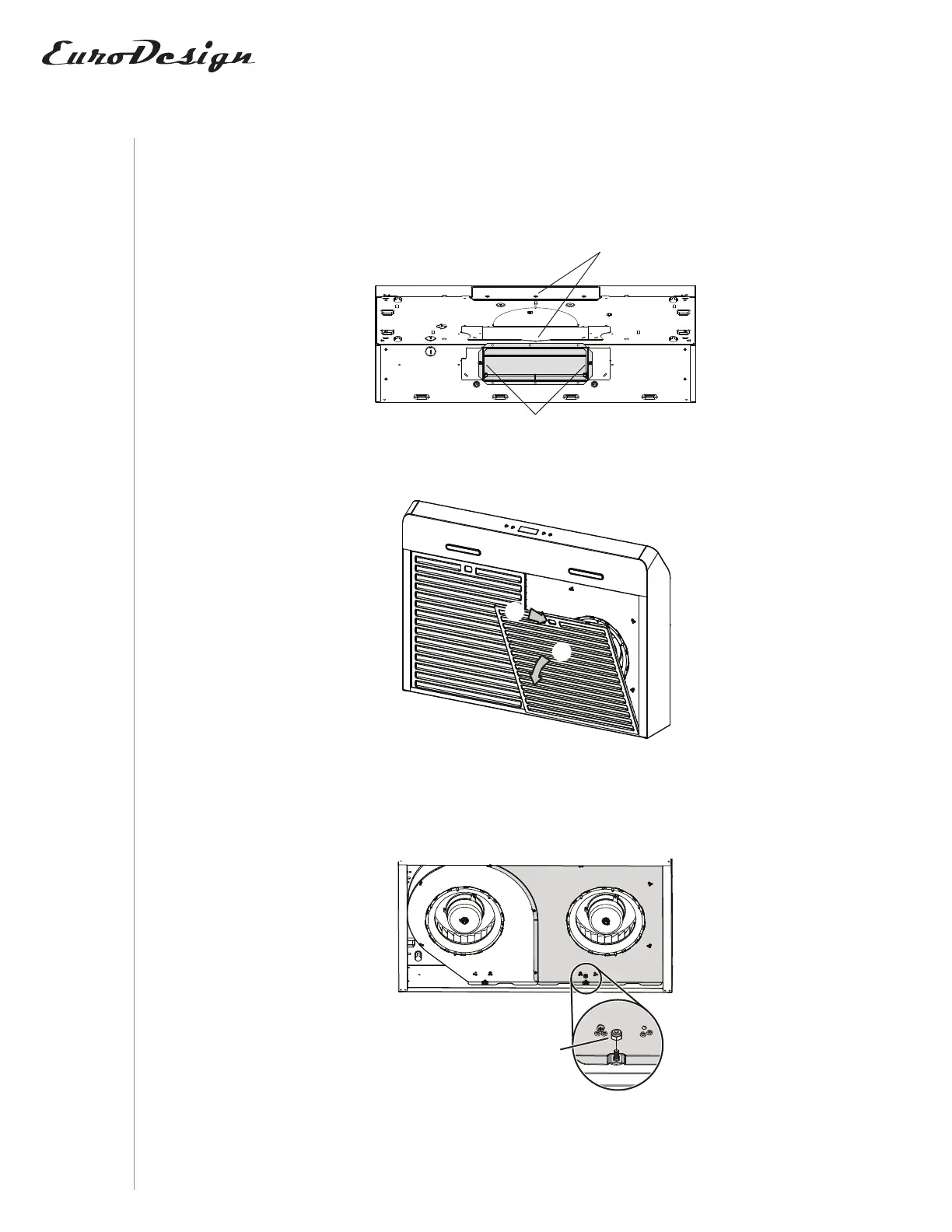

2 ] Remove 2 screws from top of hood. Remove the adapter/damper from back of hood (see
illustration below). Keep the screws for further use.
3 ] Using the finger cup, remove the grease filters from the hood by pushing down and tilting
filters out .
4 ] Using a 11/32” nutdriver or socket, remove the lock nut retaining the flange of the right cover
plate (shaded part on illustration below) to the inner back of hood (see insets). Remove the
right cover plate retaining screws (7 screws), then set the blower cover along with its screws
and lock nut aside.
1
2
3
45
6
7
BACK OF HOOD
LOCK NUT
2 SCREWS
2 SCREWS
