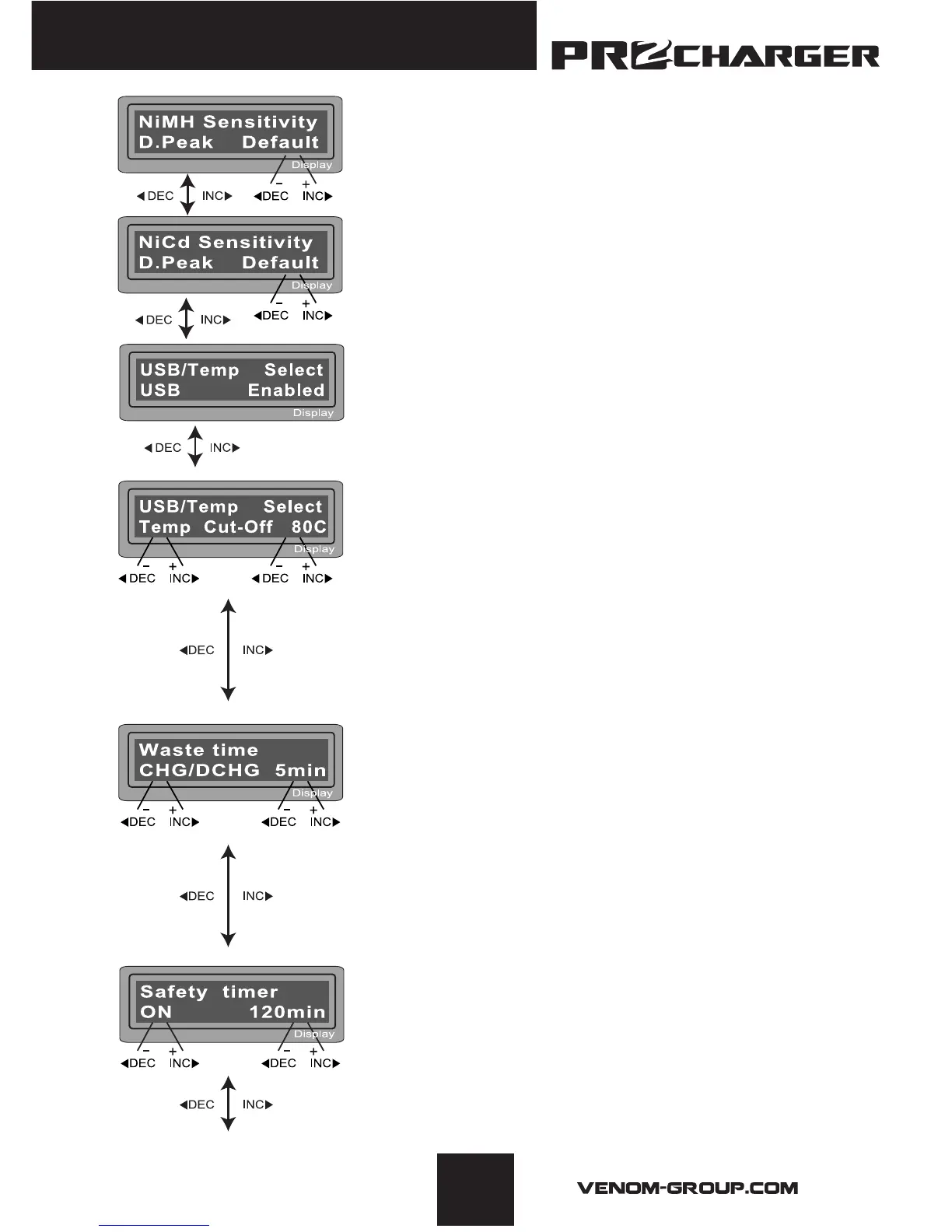

This shows the trigger voltage for automatic peak
detection of NiMH and NiCd battery. The effective
value ranges from 5 to 20mV per cell. If the trigger
voltage is set higher, there is a danger of overcharging
the battery; if it is set lower, there is a possibility of
premature termination. Please refer the technical
specication of the battery.(NiCd default:12mV, NiMH
default:7mV)
You can select the function of the 3-pin port on the
left side of the unit. It can be used as a temperature
sensor port, selected at this screen. If the port is
assigned as a temp. port, an optional temperature
probe contacting the surface of battery can be used.
You can set the maximum temperature at which the
charger should allow battery to reach during charge.
Once a battery reaches this temperature during
charge, the process will be terminated to protect the
battery. This charger does not connect to your PC.
When performing a charge/discharge or discharge/
charge cycle, your battery can often become warm
after the charge or discharge period. The “waste
time” setting will insert a time delay to occur after
each charge and discharge process to allow the
battery adequate time to cool down before being
starting the next process. The value ranges from 1 to
60 minutes.
Every charge is monitored by a safety timer. The
default setting is 120 minutes or 2 hours. Once this
time limit is reached the charger will stop charging
regardless if the charge is complete. This is
programmed to prevent overcharging of the battery if it
proves to be faulty, or if the termination circuit cannot
detect the battery is full. The value for the safety timer
should be long enough to allow a full charge of the
battery. When your charge completes, if the charger
says “TIME” in the upper right corner of the screen,
your charge was terminated due to the safety timer.
