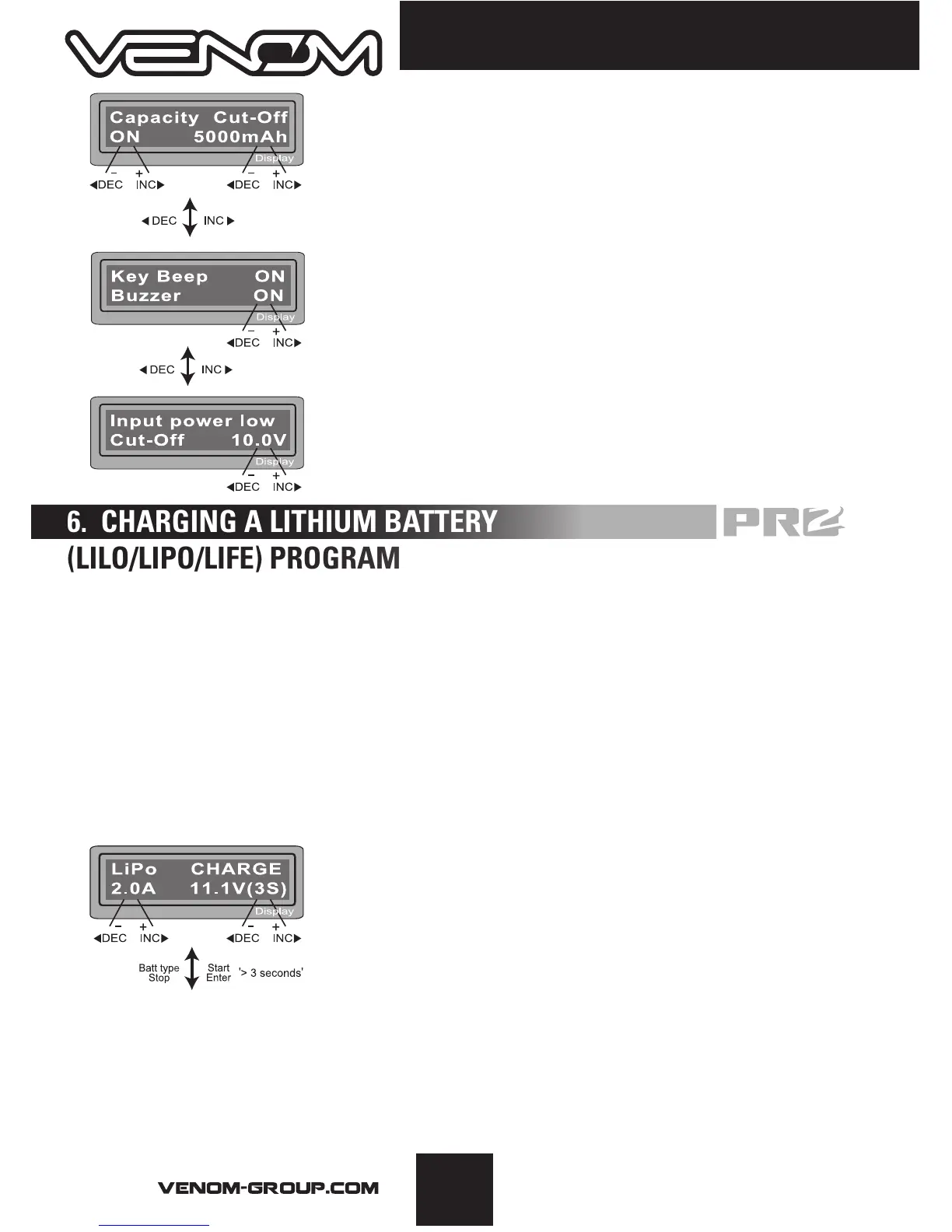

Use these programs only when charging a lithium battery (Lilo/LiPo/LiFe) with a nominal voltage of 3.3V, 3.6V
or 3.7V per cell, respectively. The charge current going into the battery will vary depending on the chemistry
type so it is VERY IMPORTANT that you select the correct type for your battery. The ending voltage of the
charge is also important as it varies for all three types: 4.2V for LiPo, 4.1V for Lilo and 3.6V for LiFe. The charge
current (how many Amps you are putting into the pack) and nominal voltage (Proper voltage for the cell count
of the battery you are charging.) must be correct for the battery to be charged. To change these settings,
press the START/ENTER key to make the selected value blink. Using the increase and decrease buttons, set
your desired amperage, then press START/ENTER to save the setting. You will then be asked to select your
nominal voltage/cell count. Again, use the increase/decrease buttons to reach your desired setting and Press
the START/ENTER button to confirm and save.
Now, double check the charge settings. The upper left corner of the
screen should read the specific battery chemistry you are trying to
charge. In the case of the example, LiPo. The value underneath the
chemistry type is the charge current. Check your batteries specications
for proper charge rating, but with all Venom batteries, we recommend a 1C
charge rate. If your battery is a 5000mAh, your charge current should be
5.0. If using a 2200mAh pack, the charge rate would be 2.2. Simply placing
a decimal point after the first number in your capacity rating will give
the correct 1C charge rating. To further elaborate, a 2C charge rate on a
5000mAh pack would be 10.0.
The information on the right side of the screen will tell you which type of charge you are using and the voltage
and cell count you are attempting to charge. Remember, THIS VALUE MUST BE SET TO PROPERLY CHARGE
YOUR BATTERY.
When you are ready to charge, press and HOLD the START/ENTER button for 3 seconds.
This setting allows you to change the maximum capacity that
will be supplied to the battery during charge. If the nominal
pack voltage is not detected and the safety timer does not
expire for any reason, this feature will automatically stop the
process at the selected capacity value.
The Key beep/buzzer settings allow you to turn off the indi-
vidual button “beep” as well as the musical tone that is used
to alert different mode changes.
When connecting the charger to a 12volt power source
(lead acid battery) in the eld, this setting will allow you to
monitor the incoming voltage. Should the voltage drop below
the value selected, the charger will terminate operation to
protect the input battery.
