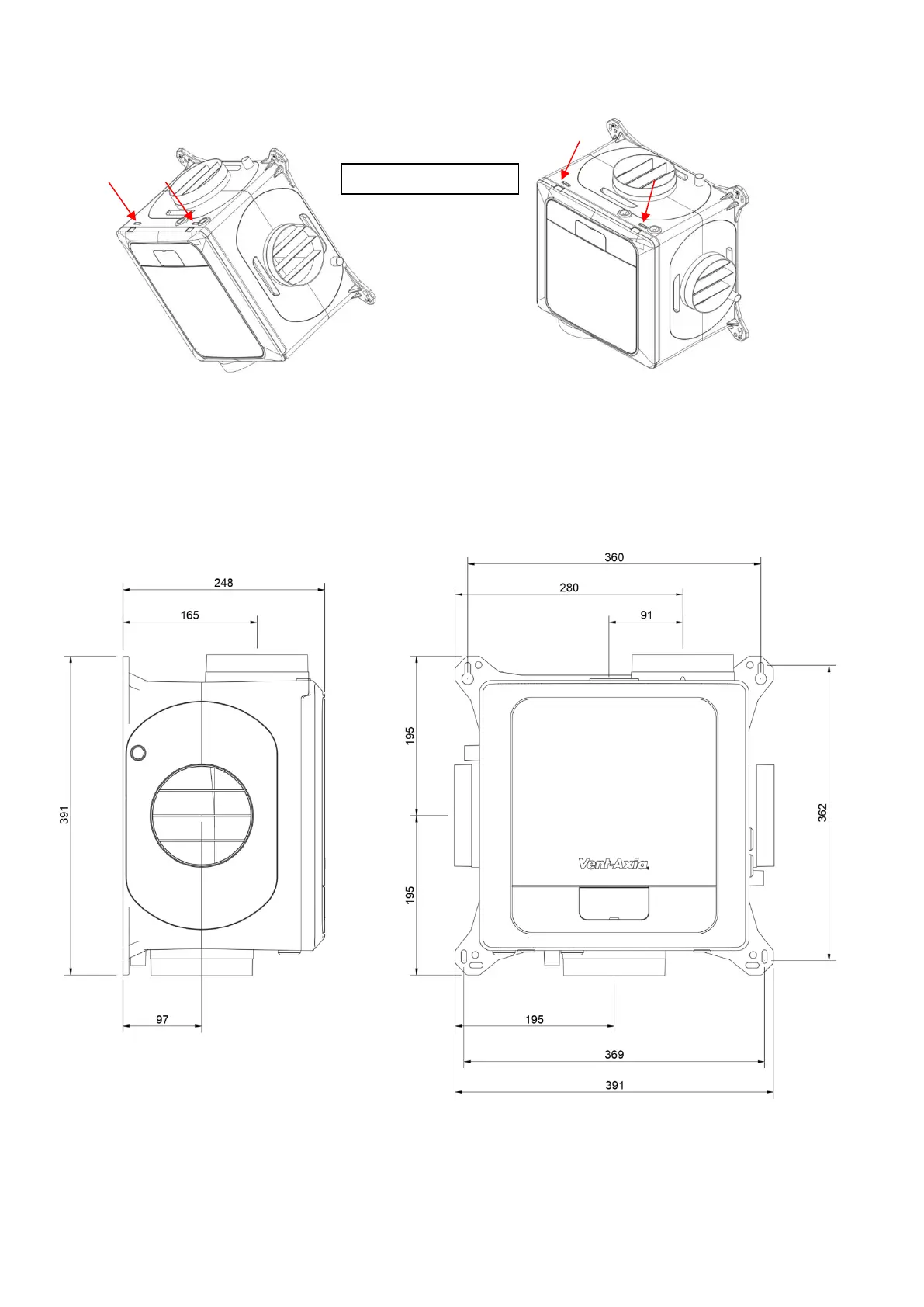

To maintain the IPx2 rating of the unit, the unit must not be mounted with the cover removal slots
facing upwards, or at an angle where they are visible from above.
All other orientations are acceptable.
See the dimensional details below for the mounting hole positions.
-Spigot diameters are 125mm
