Vent-Axia SOLO Plus - Page 6

6

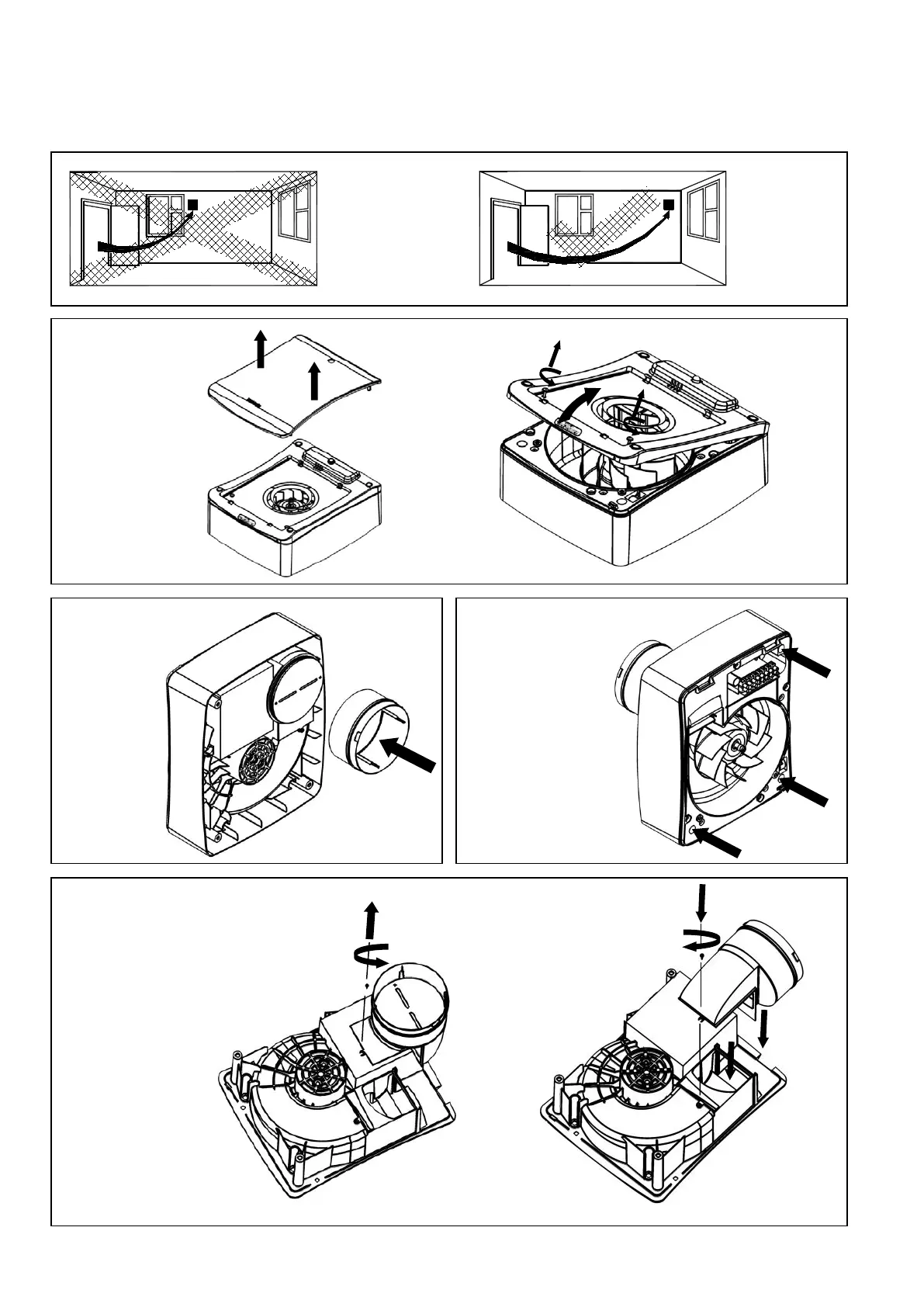

Fig. 4.
Converting outlet
spigot for side exit
and recess mounting.
Fig. 1.
Removing the grille
Fig. 2.
Attaching the
Spigot.
Fig. 3.
Surface mounting
screw hole locations
2. If a filter is fitted, remove the filter and wash in warm soapy water.
3. Wipe the inlets and front face with a damp cloth until clean.
4. Once the filter is dry it can be replaced.
The fan has sealed for life bearings, which do not require lubrication.


