Installation and Operation Manual - HE250R
ENGLISH

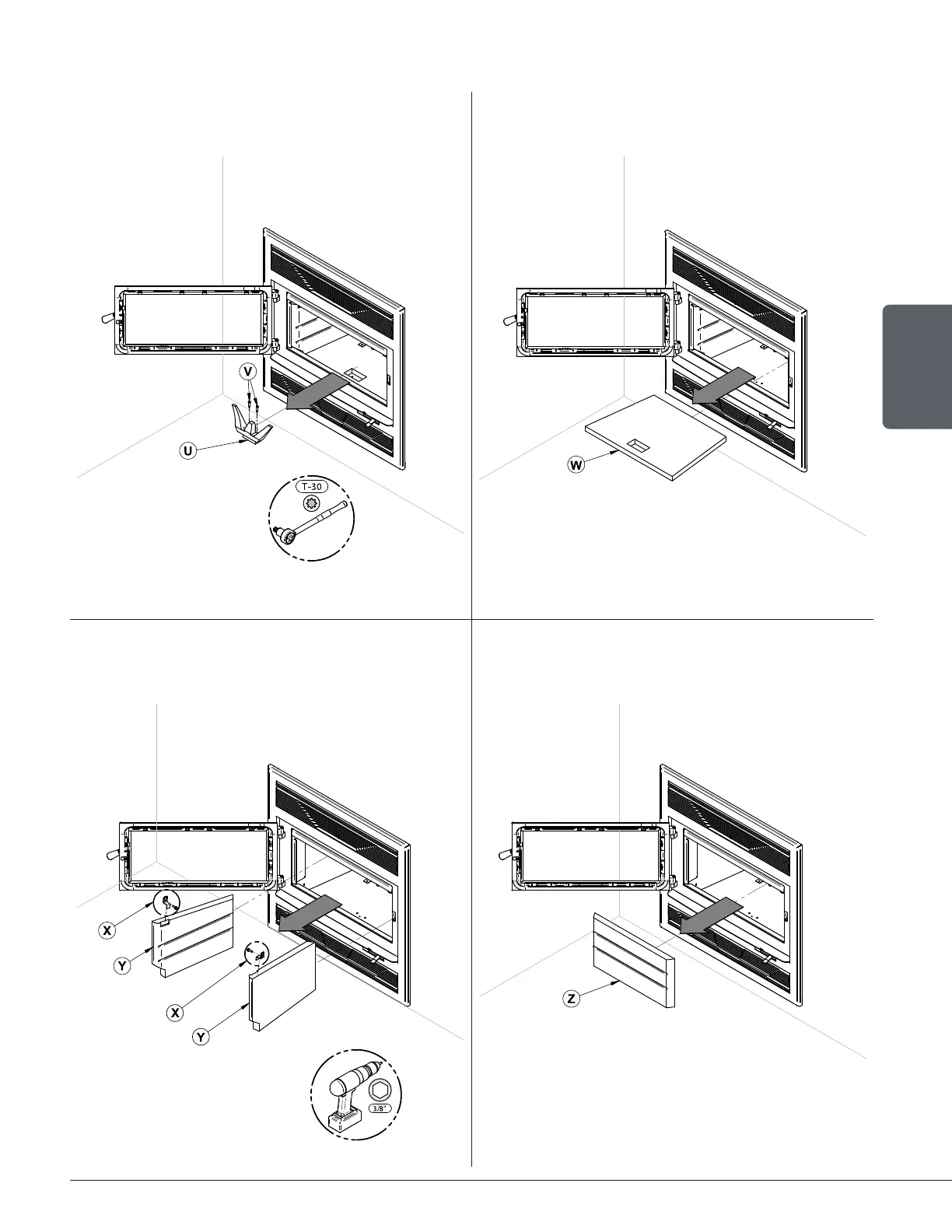

APPENDIX 7: REFRACTORY PANELS REPLACEMENT
1. Using a ratchet and a Torx (T-30) bit , unscrew
the two screws (V) holding the andiron (U).
2. Remove the floor refractory panel (W).
3. Using a power driver, remove the refractory
panels brackets (X) and the side refractory
panels (Y).
4. Remove the back refractory panel (Z).
