Page 67
Installation and Operation Manual - HE250R
ENGLISH
APPENDIX 9: BLOWER REPLACEMENT
To facilitate the blower replacement, it is recommended to remove the faceplate first. Refer
to the faceplate installation manual for more details.

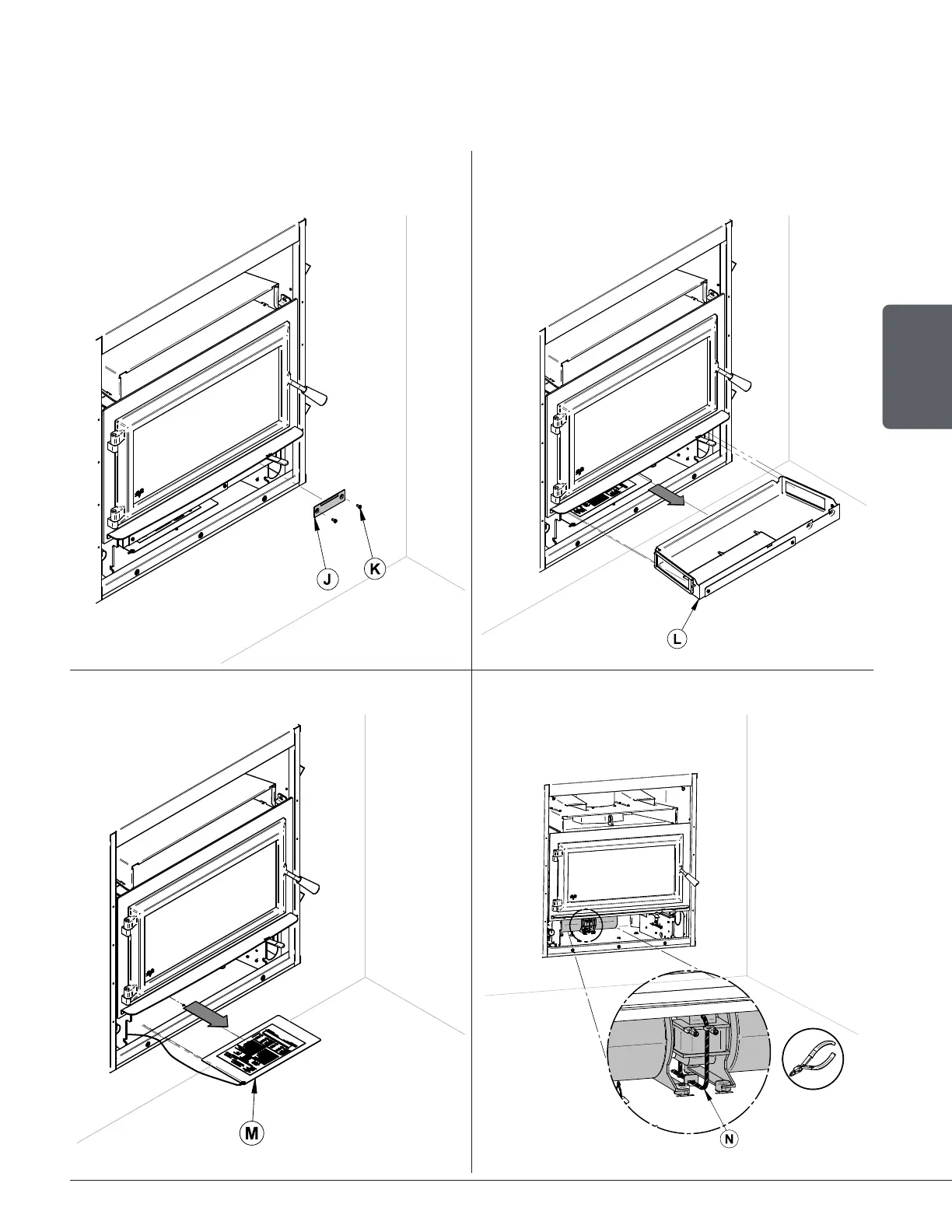

1. Remove the air control decorative panel (J)
by removing the screws (K).
2. Remove the air control housing (L) by
pulling on it.
3. Remove the certification plate (M). 4. Cut the tie wrap (N).
