Page 68
Installation and Operation Manual - HE250R
ENGLISH

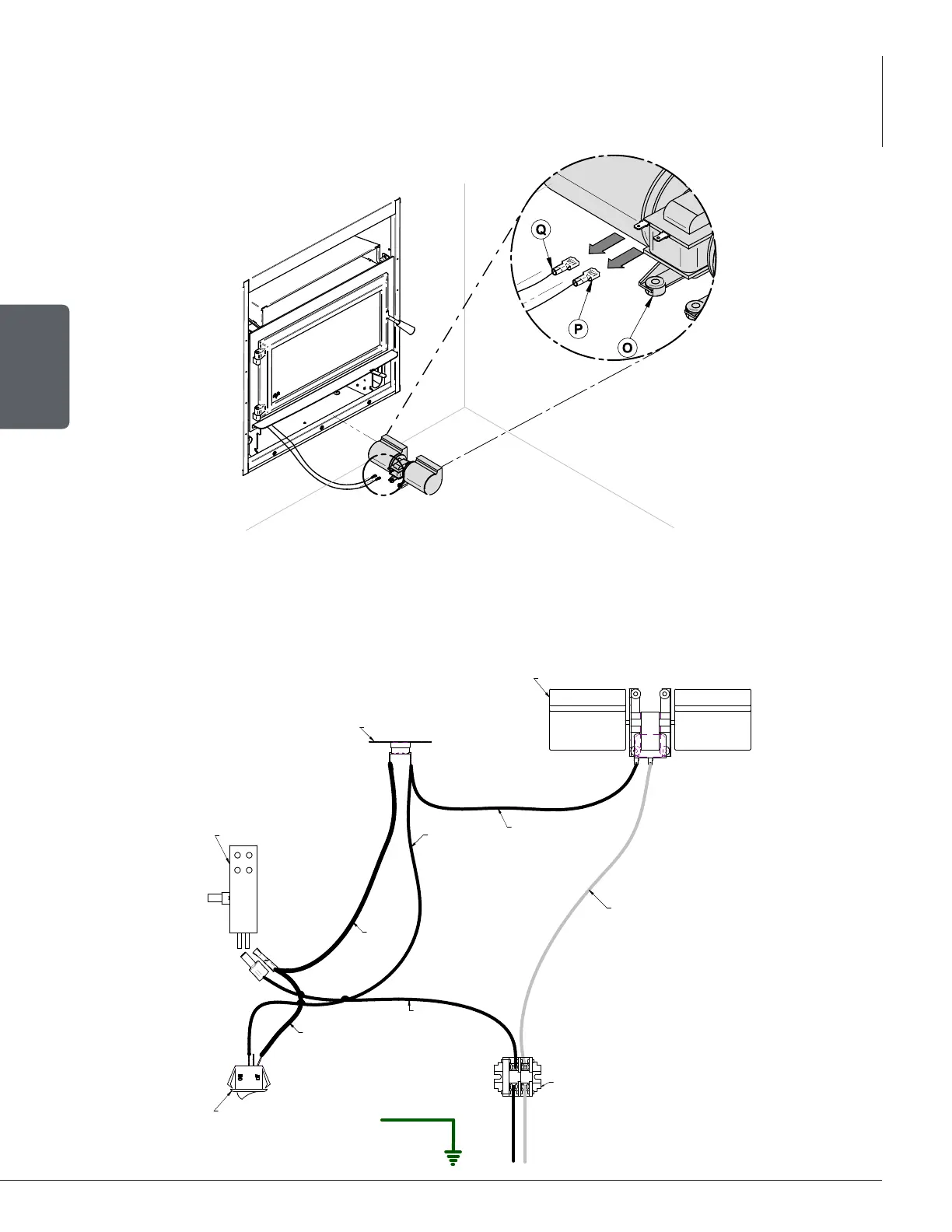

5. Unplug the blower’s electric wires (P) and (Q). Lift the blower (O) located under the firebox
towards the back. Turn 90° to pull out.
6. Repeat the steps in reverse order to reinstall the blower.
Blower connection
The wiring should be done by a qualified electrician. Connect the wires from the power outlet to the
terminal block, making sure that the white wire matches the white wire on the terminal. Connect
the black wire with the black wire of the terminal block. The ground (green or skinned wire) must be
attached to the fireplace metal frame.
WHITE / BLANC
BLACK
NOIR
BLACK / NOIR
BLACK
NOIR
BLACK / NOIR
BLACK / NOIR
THERMODISC / THERMODISQUE
BLOWER / VENTILATEUR
2 POSITIONS ROCKER SWITCH
INTERRUPTEUR
2 POSITIONS
RHEOSTAT / RHÉOSTAT
TERMINAL / BORNIER
GREEN GROUND
VERT MISE À LA TERRE
BLACK / NOIR
WHITE / BLANC
