Torque Sequence

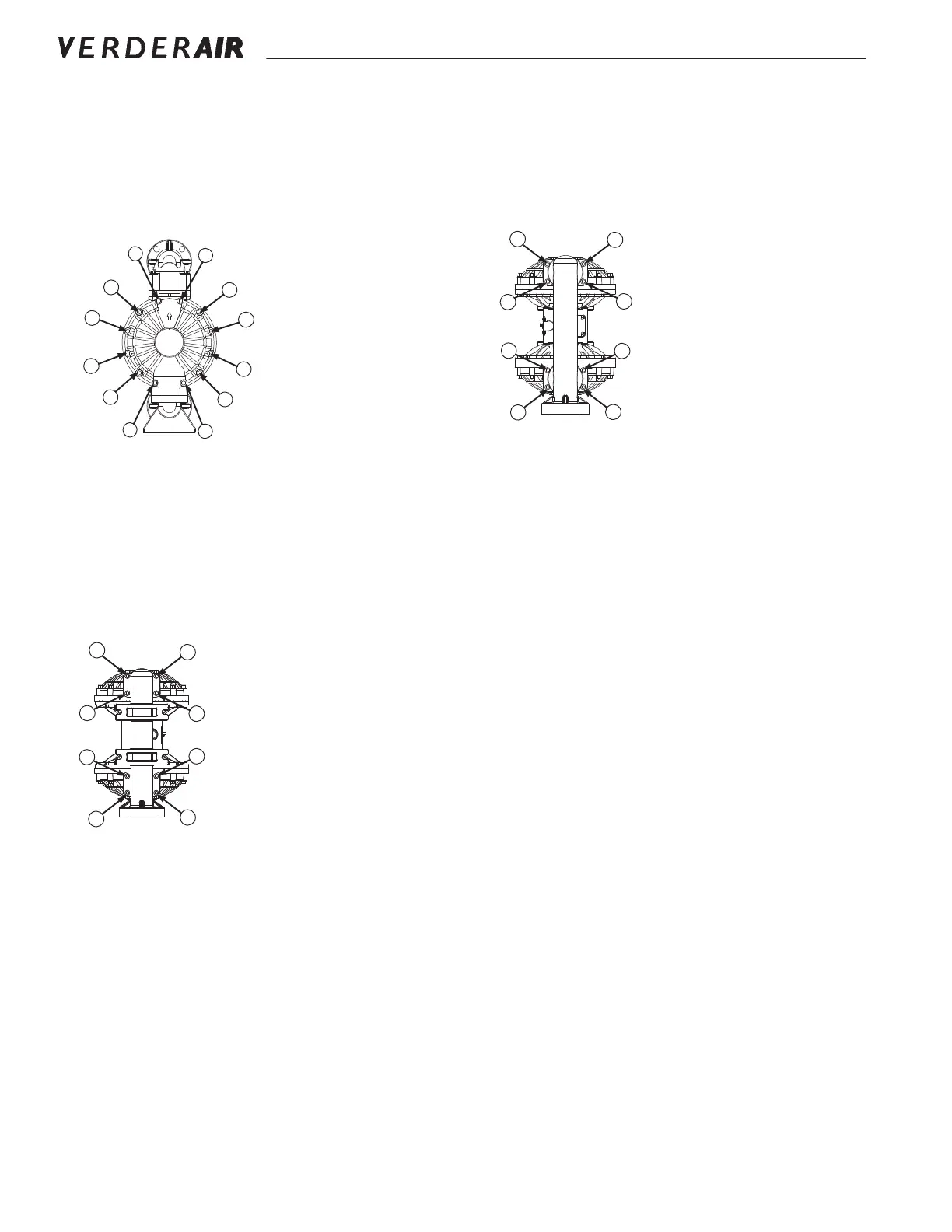

Always follow torque sequence when instructed to torque fasteners.
1. Left/Right Fluid Covers
Torque bolts to 22–25 N•m.
SIDE VIEW
2. Inlet Manifold
Torque bolts to 17–18 N•m
BOTTOM VIEW
3. Outlet Manifold
Torque bolts to 17–18 N•m
BOTTOM VIEW
