Verkada AC42 - Installation; Connecting a Door 5;5; Wiring the REX With the Door Strike; Wiring the REX With an Electromagnetic Lock

18
DRY
Configuration
WET
Configuration
DRY
Configuration
WET
Configuration

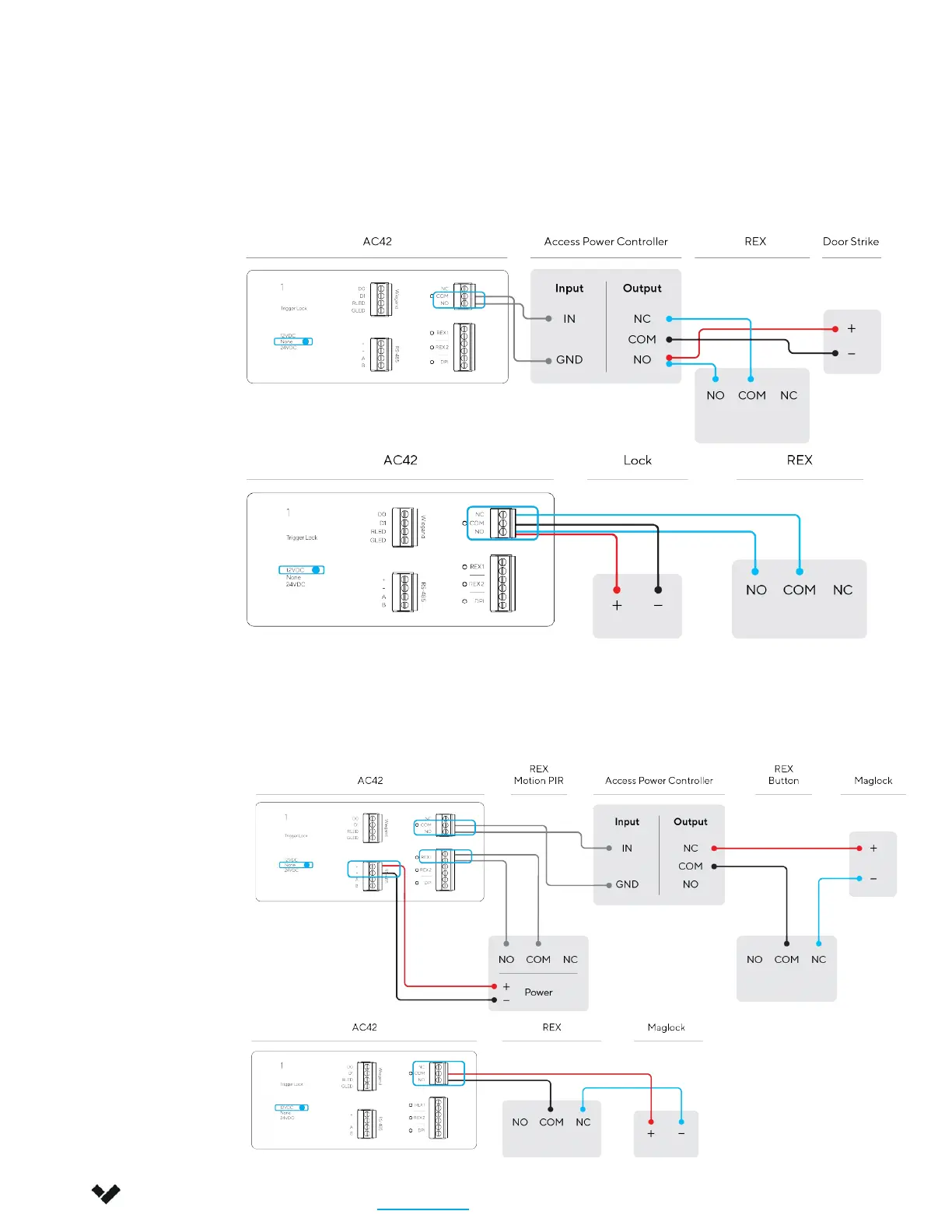

5a. Wiring the REX With the Door Strike
For safety-related applications, wire the REX in parallel with the Door Strike. You can wire additional
REX switches and sensors to the door cassette if needed.
5b. Wiring the REX With an Electromagnetic Lock
For safety-related applications, wire the REX directly to the mag lock. You can wire additional REX
switches and sensors to the door cassette if needed.
Installation
Connecting a Door 5/5
