19
With the AC42’s AUX inputs you can hook up devices such as intercoms and panic
buttons. All associated events will be logged in Command.
The AUX Inputs can be programmed in Command to initiate a lockdown or unlock a door
(or a set of doors). We will be expanding support for more auxiliary devices in the future.

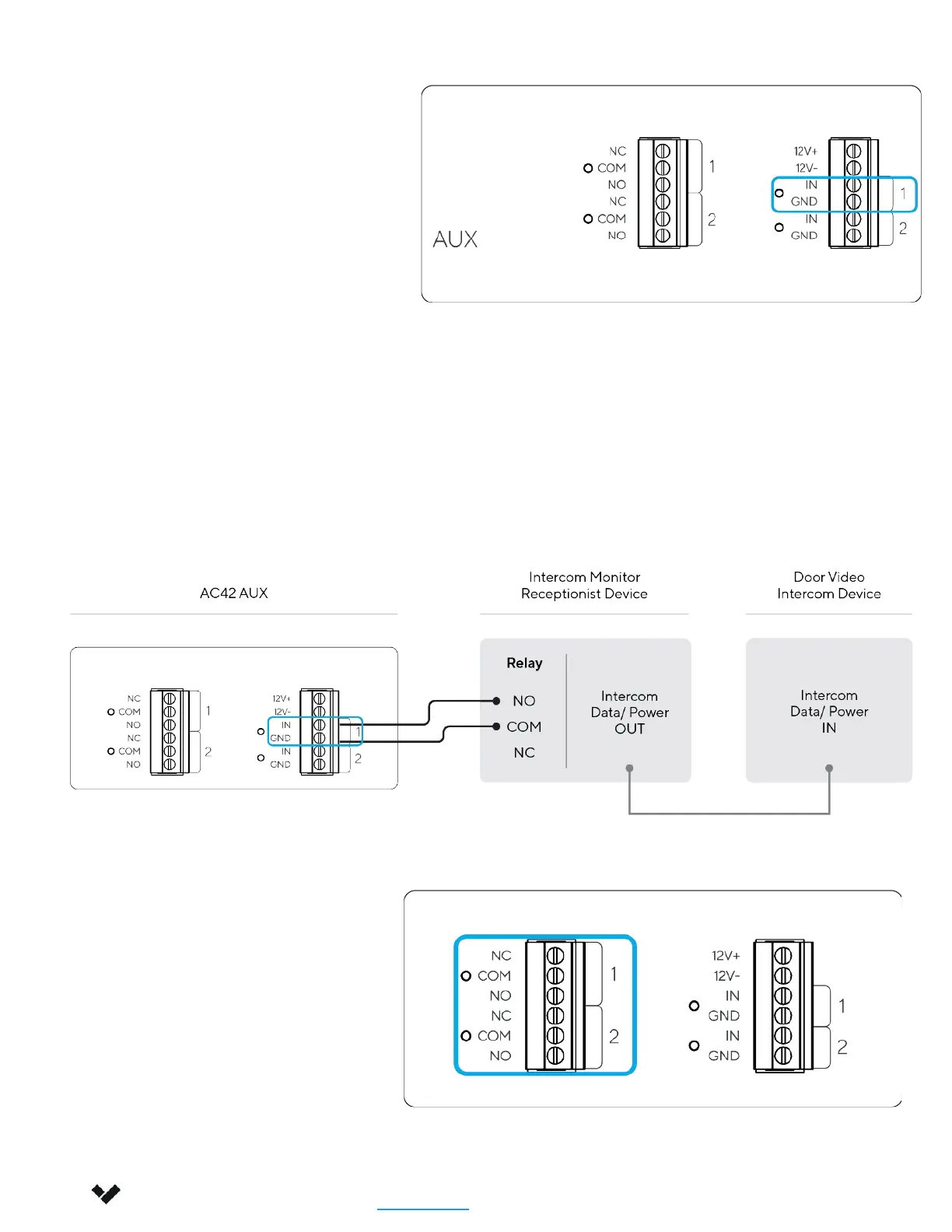

Example AUX Intercom Wiring Diagram
AUX Inputs
The Verkada AC42 has two AUX inputs.
The AC42 expects by default both AUX
inputs to be NORMALLY OPEN (NO)
however this behaviour can be
changed to NORMALLY CLOSED (NC) in
command
AUX Outputs
Additionally, the AC42 has two AUX
Form C relays. These two AUX relays
can be programmed to trigger an
output during a lockdown. This allows
you to activate a dialer, strobe light,
sounder, etc. when a lockdown is
initiated.
Installation
AUX
