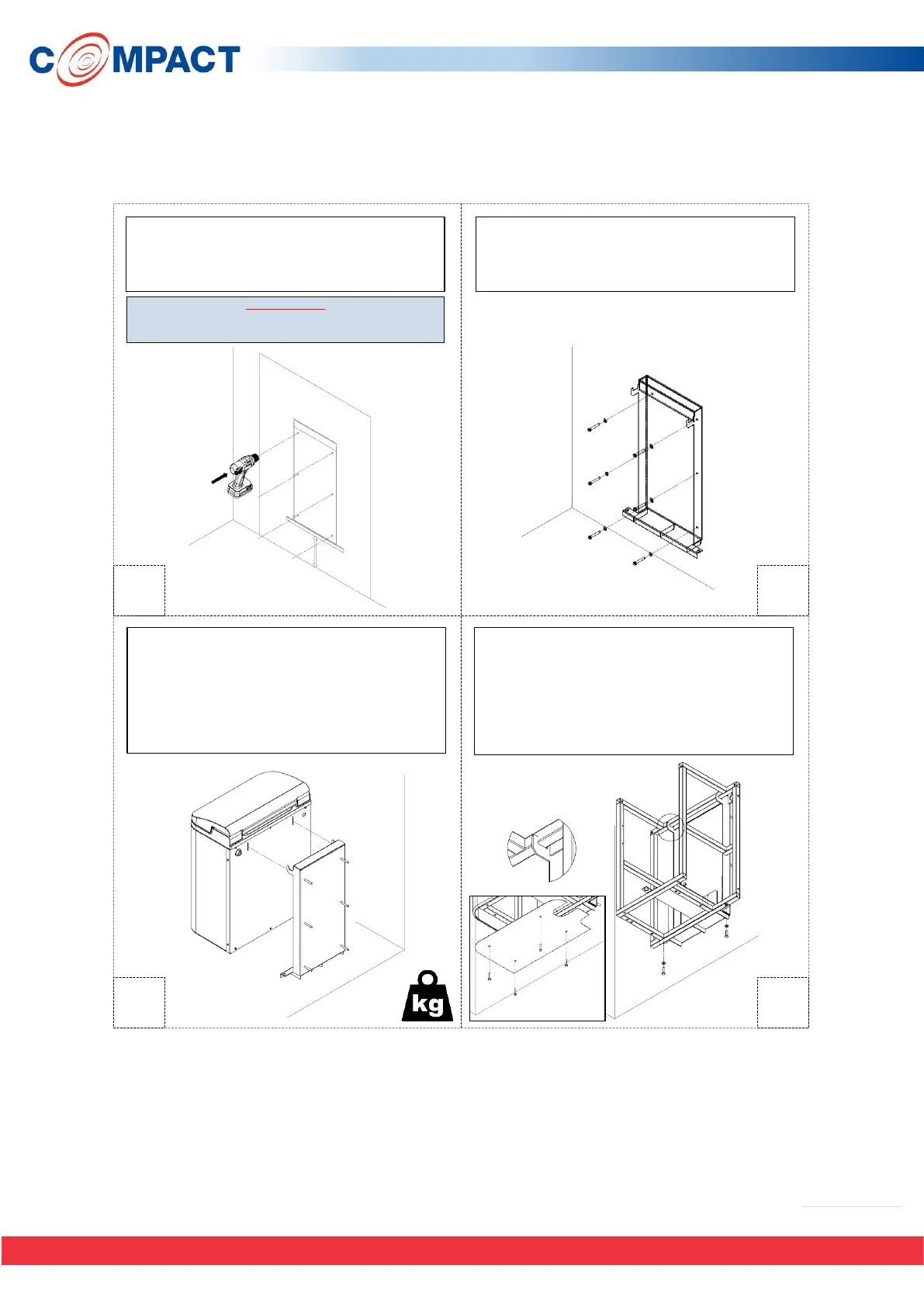

1.
· Place the template provided in the desired Compact
location.
· Use the identified holes as a drilling template for your
wall fixings.
3.
2.
4.
· Use the 6 holes to secure the bracket to the wall.
· The holes suit M8 size fasteners, these are not
supplied or specified by Vernacare as building
materials vary upon location.
!IMPORTANT!
If your unit requires a support stand, please follow the
instructions on the next page.
· Remove the front cover from the machine.
· Remove the 2 rubber strips from the bottom of the
frame.
· The Compact can now be hung onto the wall bracket,
the 2 hooks on the bracket locate within the slits on
the unit back panel as shown.
· Note that the Compact exceeds 50Kg in weight and is
too heavy for a single person to lift without an aid.
· Check that the frame is properly seated within the
hooks as shown.
· Use the 2 provided M8 x 25 bolts and washers to
fasten the Compact to the bracket as shown.
· Fasten the base plate to the machine (shown bottom
left) using the 4 M6 x 15 screws.
· Fit the front cover back onto the machine, the
installation is now complete.
