14105 Avalon Boulevard, Los Angeles, CA 90061 | Tel 800-465-1660 x1 | Fax 310-353-7109
www.Versatables.com

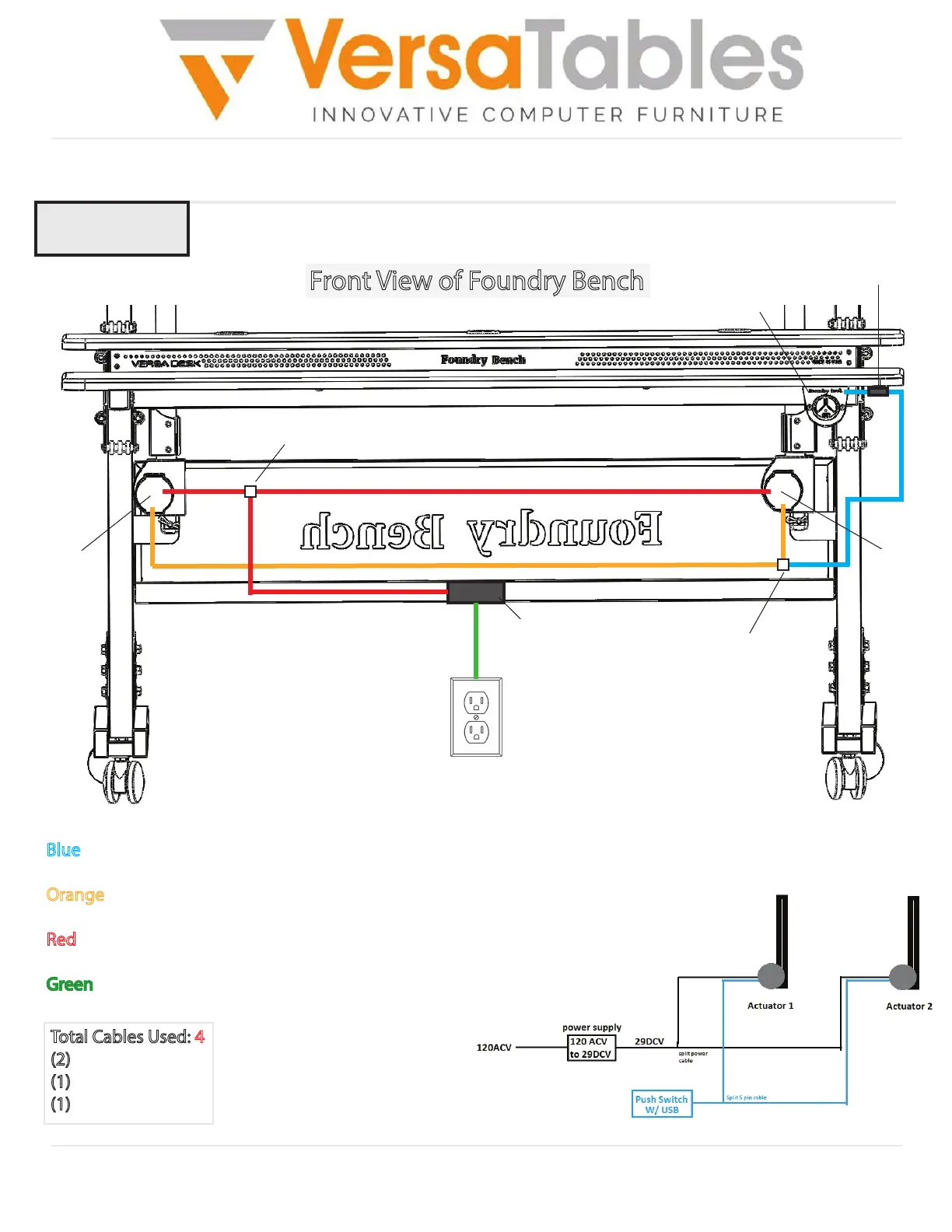

Assembly
Wiring
Blue - USB Switch goes into Splitter Cable #1
Orange
- Splitter Cable #1 (Left Actuator + Right Actuator + USB Switch)
Red
- Splitter Cable #2 (Left Actuator + Right Actuator + Power Supply)
Green
- Power Cord connected to outlet
Left
Actuator
Right
Actuator
Wall
Outlet
Power
Supply
USB
Switch
USB Switch Box
Total Cables Used: 4
(2) Splitter Cables
(1)
USB Switch
(1)
Power Cord
Splitter Cable #1
Splitter Cable #2
Front View of Foundry Bench
