Assembly

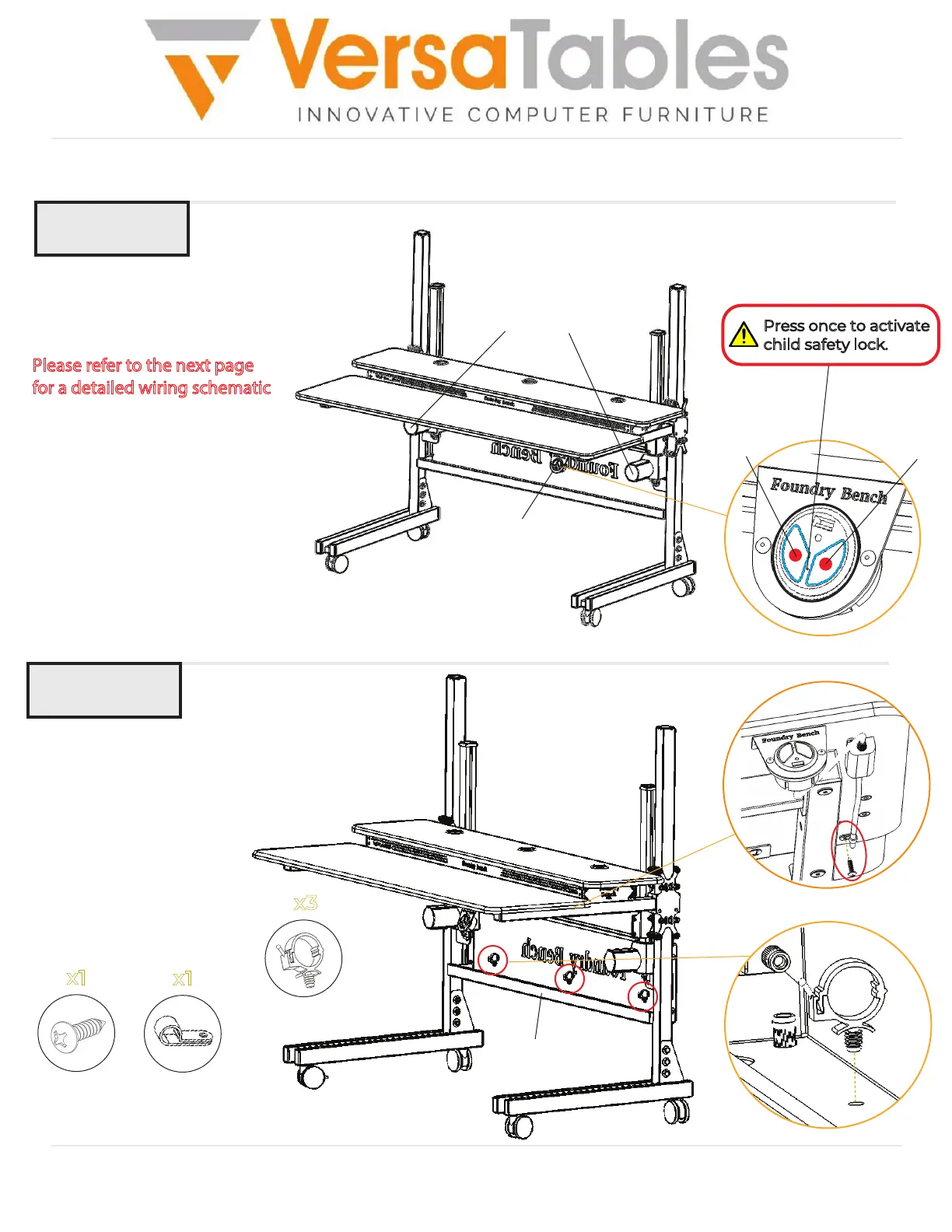

Step 13

Step 14

Insert (3) Cable Holders into

the bottom of the Back

Panel as shown and

organize the cables from

the previous step.

Use a wood screw and

P Clip to hold the control

switch’s cable as shown.

Back Panel

Cable Holder

Connect both Actuators to

the USB Switch, and the USB

Switch to a power supply.

Please refer to the next page

for a detailed wiring schematic.

Then, press the Down button and

Up button on the USB Switch to

ensure the actuators are functioning

properly.

Down

USB Switch

Actuators

Press once to activate

child safety lock.

Cables

Cable Holders

8A x 5/8”

Wood Screw

P Clip
