Assembly

Step 2

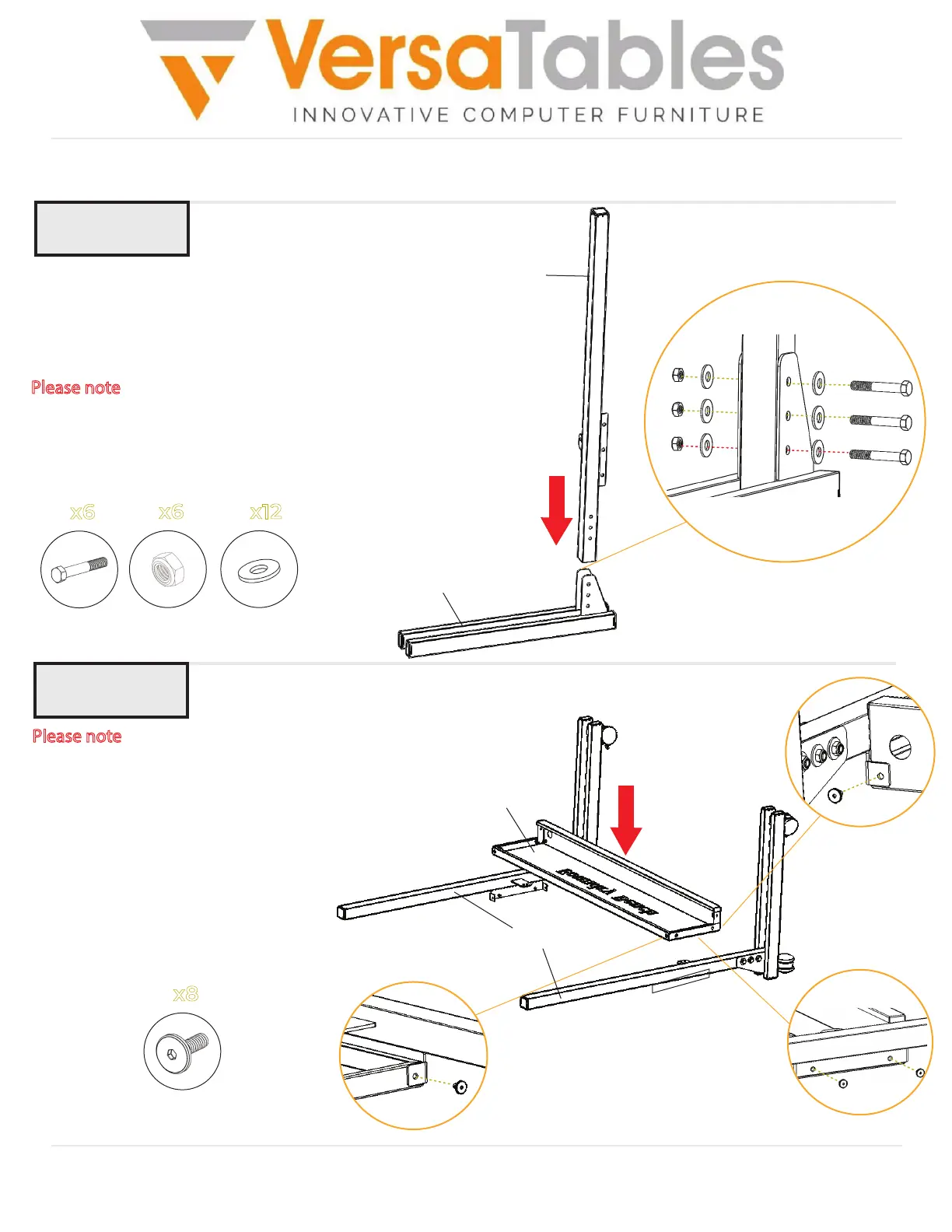

Attach the Leg Upright to the Foot using

(3) 3/8-16 x 2 1/2 Hex Bolts, (3) 3/8-16 Washers

and (3) 3/8-16 Hex Nuts as shown.

Repeat for other side.

Please note: Insert the bottom Hex Bolt

rst and secure it with the nut. Then,

move your way up and tighten all bolts

at the end.

3/8-16 x 2 1/2

Hex Bolt

3/8-16 Hex

Nut

3/8-16 Washer

x12

Foot

Leg Upright

Step 1

12mm Furniture Bolt

Please note: We highly recommend

that you place a cardboard or soft

material beneath the parts in this

step to avoid damage from scraping.

Place both Leg Uprights on the ground

as shown. Then, attach the Back Panel

to the uprights using (4) 12mm

Furniture Bolts. Repeat for

other side.

Back Panel

Leg Uprights

Back Panel
