EVX-5300/-5400 OpErating Manual
8

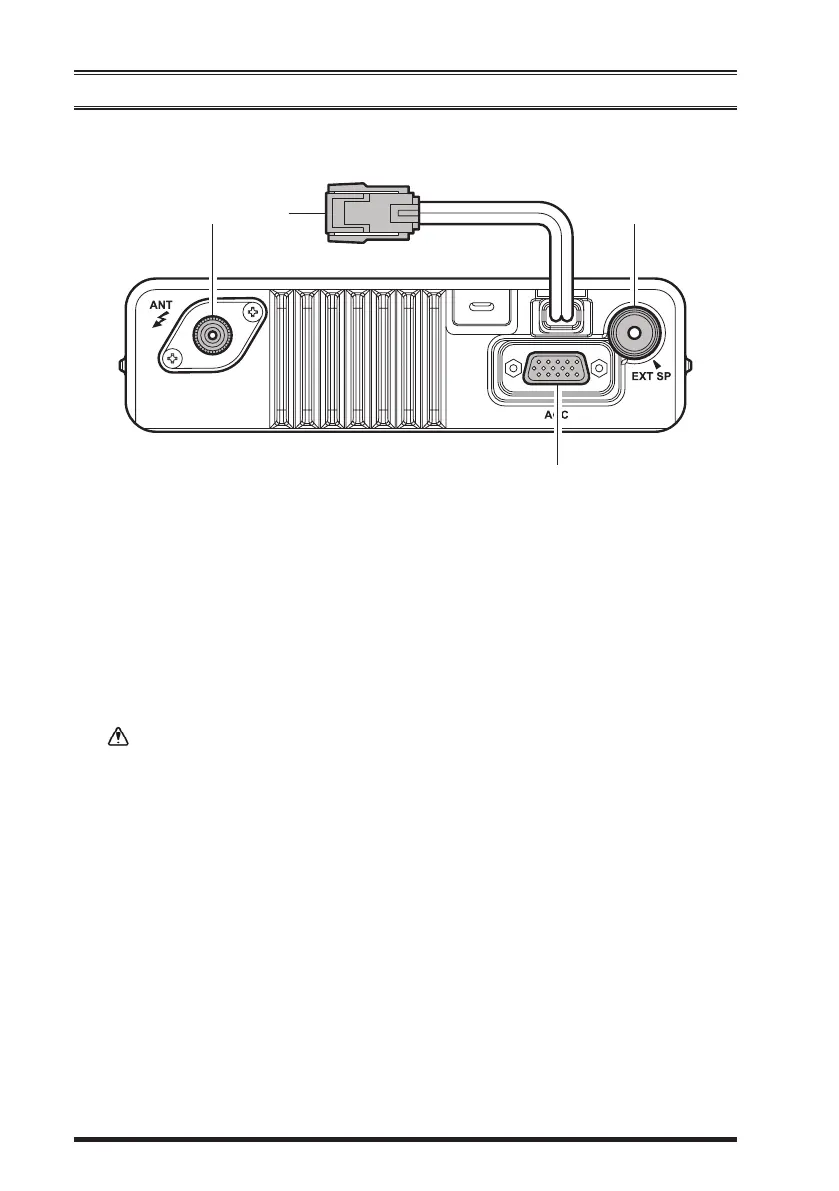

Rear Panel
controls & connEctors
Antenna Jack
The 50-Ohm coaxial feedline to the antenna must be connected here, using a
mini-UHF plug.
13.6V DC Cable Pigtail with Connector
The supplied DC power cable must be connected to this 2-pin connector. Use
only the supplied fused cable, extended if necessary, for power connection.
Replace only with the same or equivalent type fuse.
External Speaker Jack
An external loudspeaker may be connected to this 2-contact, 3.5-mm mini-
phone jack.
Caution: Do not connect either wire of this line to ground, and be certain that
the speaker has adequate capability to handle the audio output (12 W) from
the radio.
D-Sub 15-Pin Accessory Connector
External TX audio line input, PTT (Push To Talk), Squelch, and external RX
audio line output signals may be obtained from this connector for use with ac-
cessories such as data transmission/reception modems, and external Channel
control input, etc.
