EVX-5300/-5400 OpErating Manual
6
controls & connEctors
(
EVx-5400
)

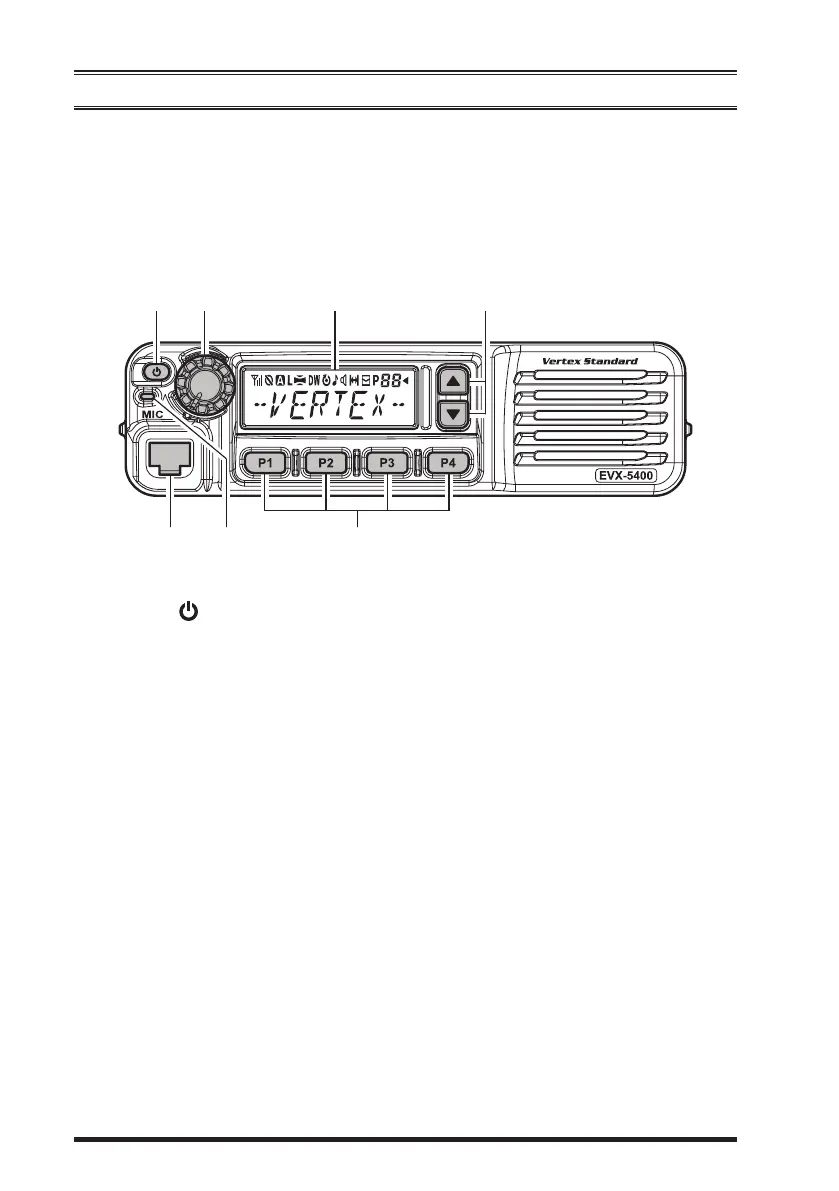

Front Panel
Important! - All buttons located on the Front Panel are Programmable Function
(
PF
) keys, congured according to your network requirements and programmed
by your Vertex Standard dealer. The instructions below describe a typically-cong-
ured radio.

PWR
( )
Button
Press and hold in this button for 2 seconds to toggle the transceiver’s power
“on” and “off”.

VOL Knob
Turn this control clockwise to increase the volume.

Microphone Jack
Connect the microphone plug to this jack.

TX/BUSY Indicator
Indicates transceiver’s Transmit/Receive Status.

[
P1
] - [
P4
]
Keys
(
Programmable Function Keys
)
These keys can be set up for special applications, such as High/Low power
selection, Monitor, Talk-Around, etc., as determined by your network require-
ments and programmed by your Vertex Standard dealer.

[

]
/
[

]
Keys
(
Programmable Function Keys
)
In the factory default, pressing either key changes the current channel.
 
 

