Vertex Standard EVX-531 Service Manual

EVX-531 UHF Service Manual 4

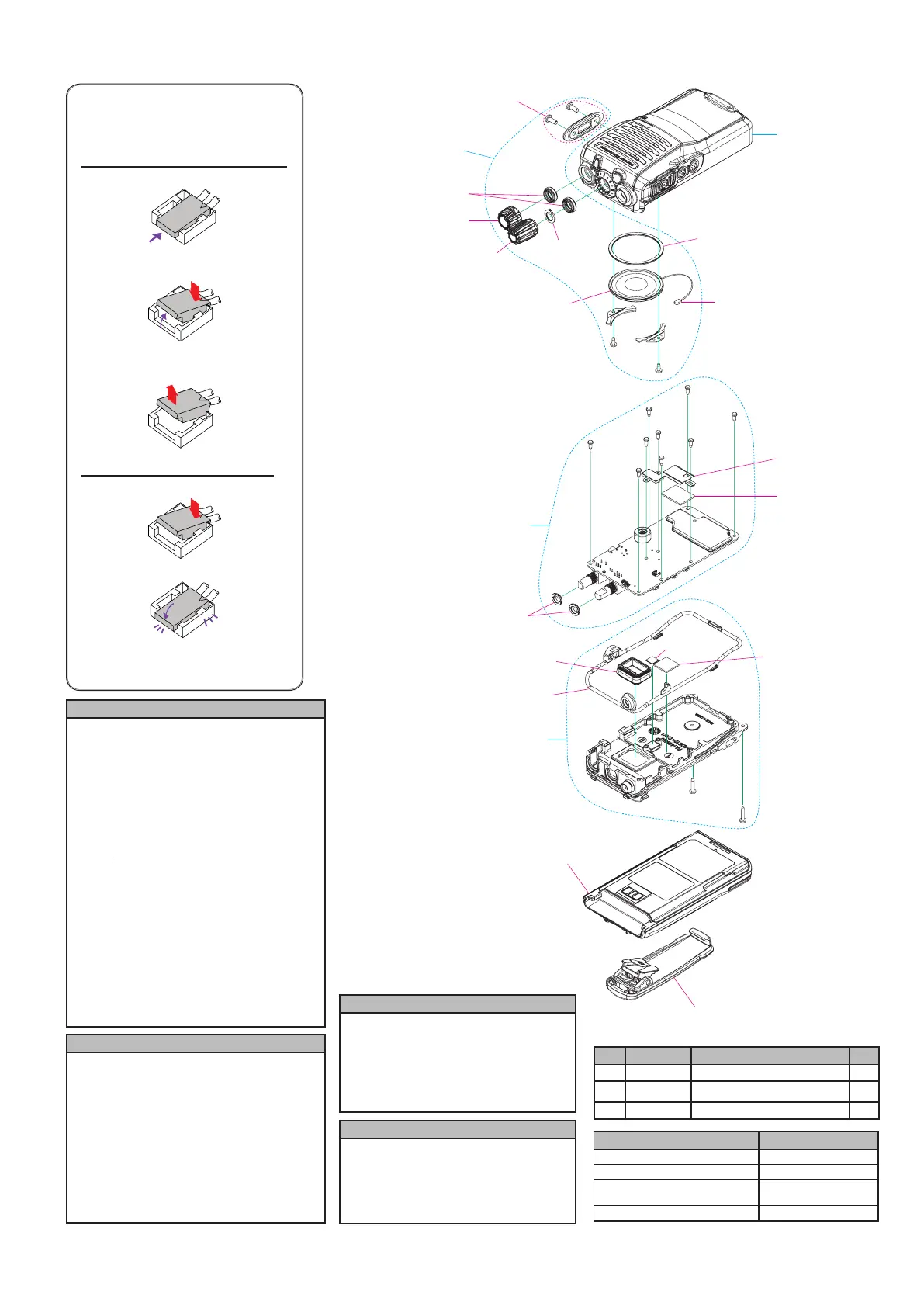

Exploded View & Miscellaneous Parts
(
w/o Option Connector
)
DESCRIPTION VXSTD P/N
Battery Pack FNB-V133LI-UNI AAJ67X001
Desktop Charger CD-58 AAJ72X001
AC Adapter PA-55C or PA-55U
PA-55C: AAJ71X003
PA-55U: AAJ71X004
Belt Clip CLIP-20 AAH12X101
Disconnect the Speaker Connector
from the MAIN Unit when remove
the Front Case of the transceiver.
To DisconnecTing The speaker connecTor:
1. Hook the lever.
2. Pull up and friction lock is re-
leased.
3. Positive lock is released and re-
moval completes.
To connecTing The speaker connecTor:
1. Insert the cable side rst.
2. Press down at the lever side.
Note: Horizontal mating could dam-
age the connector.
BELT CLIP
CLIP-20
(
AAH12X101
)
Non-designated parts are available only as part of a designated assembly.
MAIN UNIT / MAIN-2 UNIT
(
componenT
)
Printed Circuit Board with Components
HOLDER RUBBER (MIC)
SHIELD COVER (FET)
SHEET (HEAT8X8t1)
NUT (C065) (2 pcs)
PAN HEAD TAPTITE-B (M2X5) (9 pcs)
CHASSIS ASSY
(
componenT
)
CHASSIS
CONNECTOR (SMAP-BT4WP)
RUBBER PACKING (CHASSIS)
RUBBER BOOTS
PAD ( EMI-ABSORBER ) (TYPE “G6” only)
SHEET (6x6)
BIND HEAD TAPTITE-B (2X10) (2 pcs)
FRONT CASE SUB ASSY
(
componenT
)
KNOB
(
VOL
)
KNOB
(
FREQ
)
WASHER
BUSH
(
2 pcs
)
CAP
(
MIC/SP
)
SPEAKER
WIRE ASSY
SPEAKER HOLDER
(
2 pcs
)
RUBBER PACKING
(
SP
)
O RING
(
CAP
)
O RING
(
0.8x2.2
) (
2 pcs
)
BINDING HEAD SCREW
(
M2.6X6B
) (
2 pcs
)
FRONT CASE ASSY
(
componenT
)
FRONT CASE
MODEL LABEL
NAME PLATE
ESCUTCHEON
(
16CH
)
DOUBLE FACE TAPE
(
ECS
)
PLATE
(
FREQ
)
RUBBER
(
TOP SEL
)
SUPPORT
(
TOP SEL
)
LIGHT GUIDE
SP NET
RUBBER
(
PTT
)
FRAME
(
PTT
)
SHEET
(
PTT
)
RUBBER
(
SIDE
)
LATCH NAIL
LATCH PLATE
COIL SPRING
(
2.2x12x0.25
) (
2 pcs
)
SPONGE RUBBER
(
LED
)
SHEET
(
M-TEX 9x4.5
)
O RING
(
3.0x0.9
)
PAN HEAD SCREW
(
M2X3BSUS#2
)
BIND HEAD TAPTITE-B
(
M2X5
) (
2 pcs
)
CB6341000
FRONT CASE ASSY
RA066320A
RUBBER PACKING
(
SP
)
M4090157
SPEAKER
(
36N-D2114B
)
T9207535A
WIRE ASSY
RA125110A
KNOB
(
FREQ
)
RA125100A
KNOB
(
VOL
)
RA125090A
(x 2 psc)
BUSH
CB6388000
FRONT CASE SUB ASSY
RA1448500
RUBBER PACKING
(
CHASSIS
)
RA090590A
(x 2 psc)
NUT
(
C065
)
RA1458000
RUBBER BOOTS
RA1483000
SHIELD COVER (
FET
)
RA037690B
SHEET
(
6x6
)
CB6613000
CHASSIS ASSY
Li-Ion BATTERY PACK
FNB-V133LI-UNI
(
AAJ67X001
)
or FNB-V134LI-UNI
(
AAJ68X001
)
j
k
l
RA1483100
SHEET (
HEAT8X8t1
)
j
k
RA1396900
WASHER
l
l
l
l
l
l
l
l
CB6338000 (TYPE “G6”)
MAIN-2 UNIT
CB6389000 (TYPE “G7”)
MAIN UNIT
RA1364100
PAD
(
EMI-ABSORBER
)
(TYPE “G6” only)
CB6343000
MIC/SP CAP ASSY
REF. VXSTD P/N DESCRIPTION QTY.
j
U24105001 BIND HEAD TAPTITE-B M2X5 2
k
U24110001 BIND HEAD TAPTITE-B 2X10 2
l
U44105001 PAN HEAD TAPTITE-B M2X5 9
