EVX-S24 UHF Digital/Analog Transceiver Service Manual 12
3. TX POWER
This parameter is to align the “High Power,” “Low3 Power,” “Low2 Power” and “Low1 Power” for the selected channel.

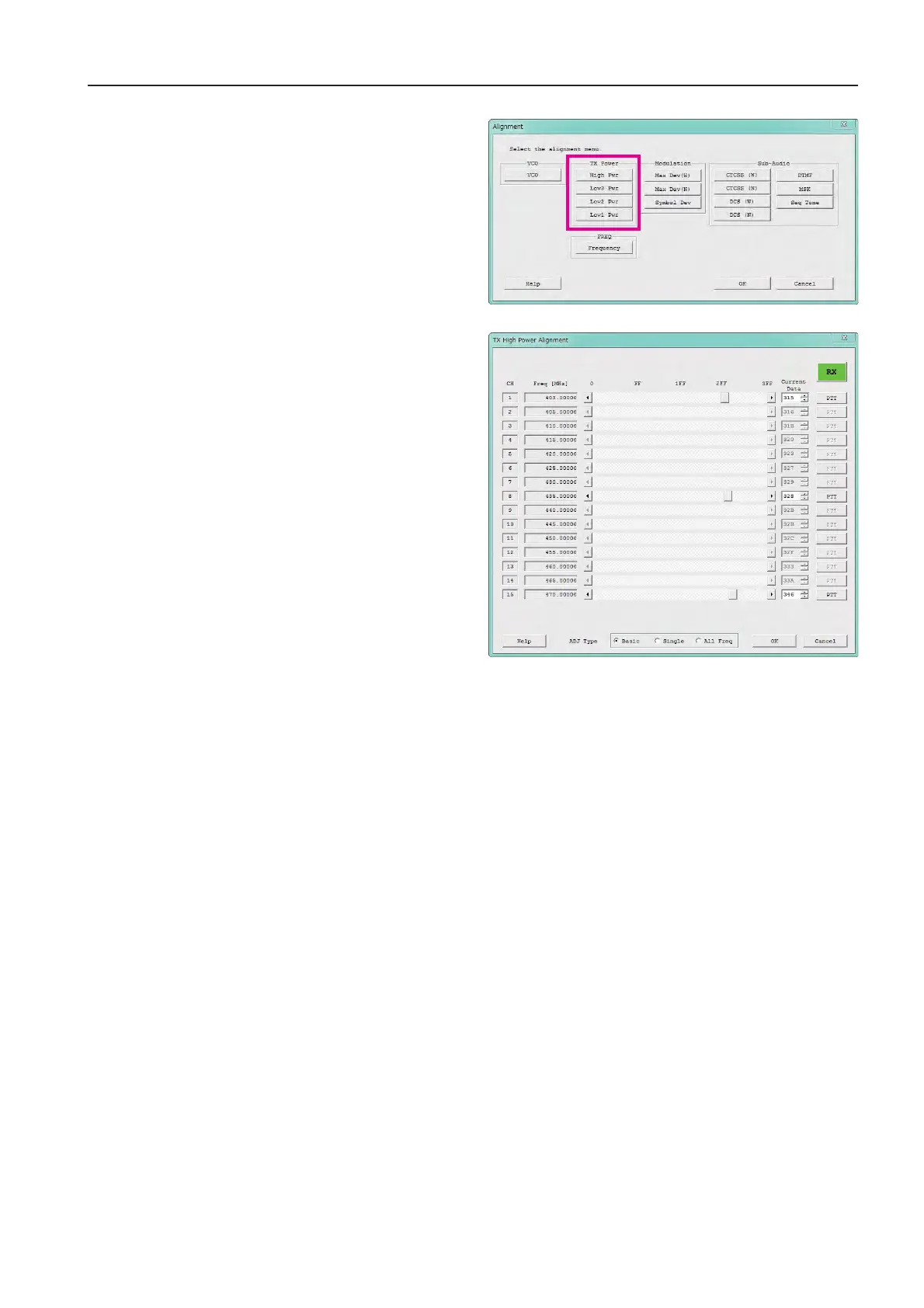

1. Click the “TX Power (High Pwr / Low3 Pwr / Low2
Pwr / Low1 Pwr)” button to open the “TX Power Align-
ment” window.
2. Click the “PTT” button on the desired channel. The ra-
dio starts to transmit on the selected channel.
3. Set the value to get desired output power (High Pwr: 3 W,
Low3 Pwr: 2 W, Low2 Pwr: 1 W, Low1 Pwr: 0.5 W) on
the Power Meter according to the following ways:
Dragging the slide bar
Clicking the arrow
(
/
)
buttons
Pressing the left/right arrow key of the computer’s
keyboard
Entering the value (“000” - “3FF”) in the “Current
Data” box from the computer’s keyboard
4. After getting the desired output power, click the “PTT”
button or press the “SPACE” bar to stop transmitting.
5. Click the “OK” button to fi nish the TX Power alignment
and save the data.
You may select the adjusting type from the “Radio” button
(ADJ Type) located at the bottom of the screen, as needed.
Basic: “Low-edge / band center / high-edge” and se-
lect the channel for alignment (Default).
Single: Alignment value changes only on the selected
channel.
All Freq: Alignment value changes on all channels.
Alignment
