VX-2100/-2200

(

VHF

)

Service Manual

Alignment

F-3

1. RX VCO Tune Voltage (RX VCO)

This parameter is to align the “Tune Voltage” of RX VCO. This alignment will be done automatically between the radio

and PC.

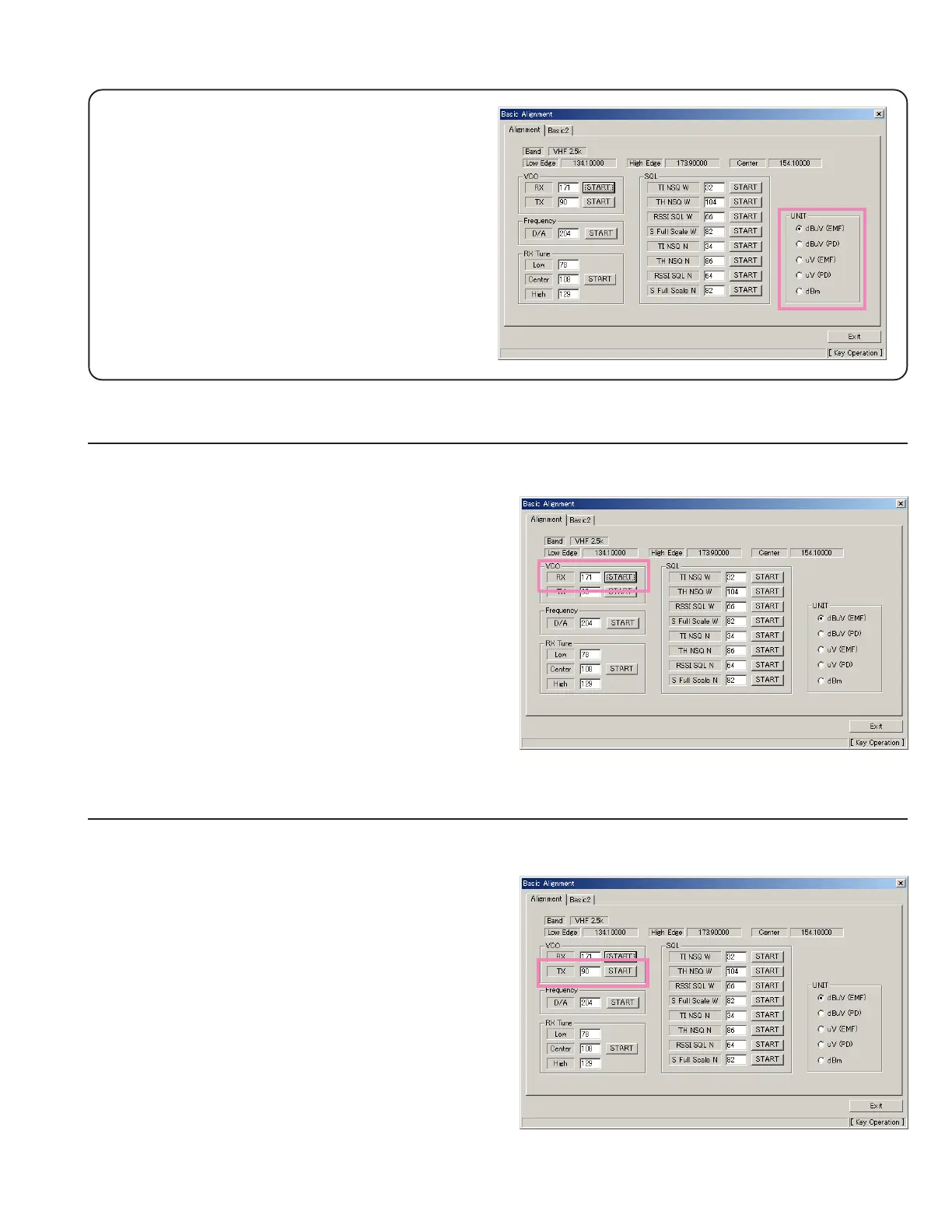

1. Press the “Start” button on the “Basic Alignment” win-

dow to open the RX VCO Adjustment window.

2. Press the “Start” button to start the alignment then the

“OK” and “Cancel” buttons are inhibited during the

alignment.

3. The aligned value will appear and the “OK”, “Can-

cel” buttons come alive when auto-alignment is fin-

ished.

4. Press the “OK” button on the window, the value of the

alignment for RX VCO will be saved in the radio.

2. TX VCO Tune Voltage (TX VCO)

This parameter is to align the “Tune Voltage” of TX VCO. This alignment will be done automatically between the radio

and PC.

1. Press the “Start” button on the “Basic Alignment” win-

dow to open the TX VCO Adjustment window.

2. Press the “Start” button to start the alignment then the

“OK” and “Cancel" buttons are inhibited during the

alignment.

3. The aligned value will appear and the “OK”, “Can-

cel” buttons come alive when auto-alignment is fin-

ished.

4. Press the “OK” button on the window, the value of the

alignment for TX VCO will be saved in the radio.

Unit

During alignment, the values of dBμV or μV (EMF

or PD) can be selected or dBm.
