Vertex Standard VX-2200 Series Service Manual

H-7

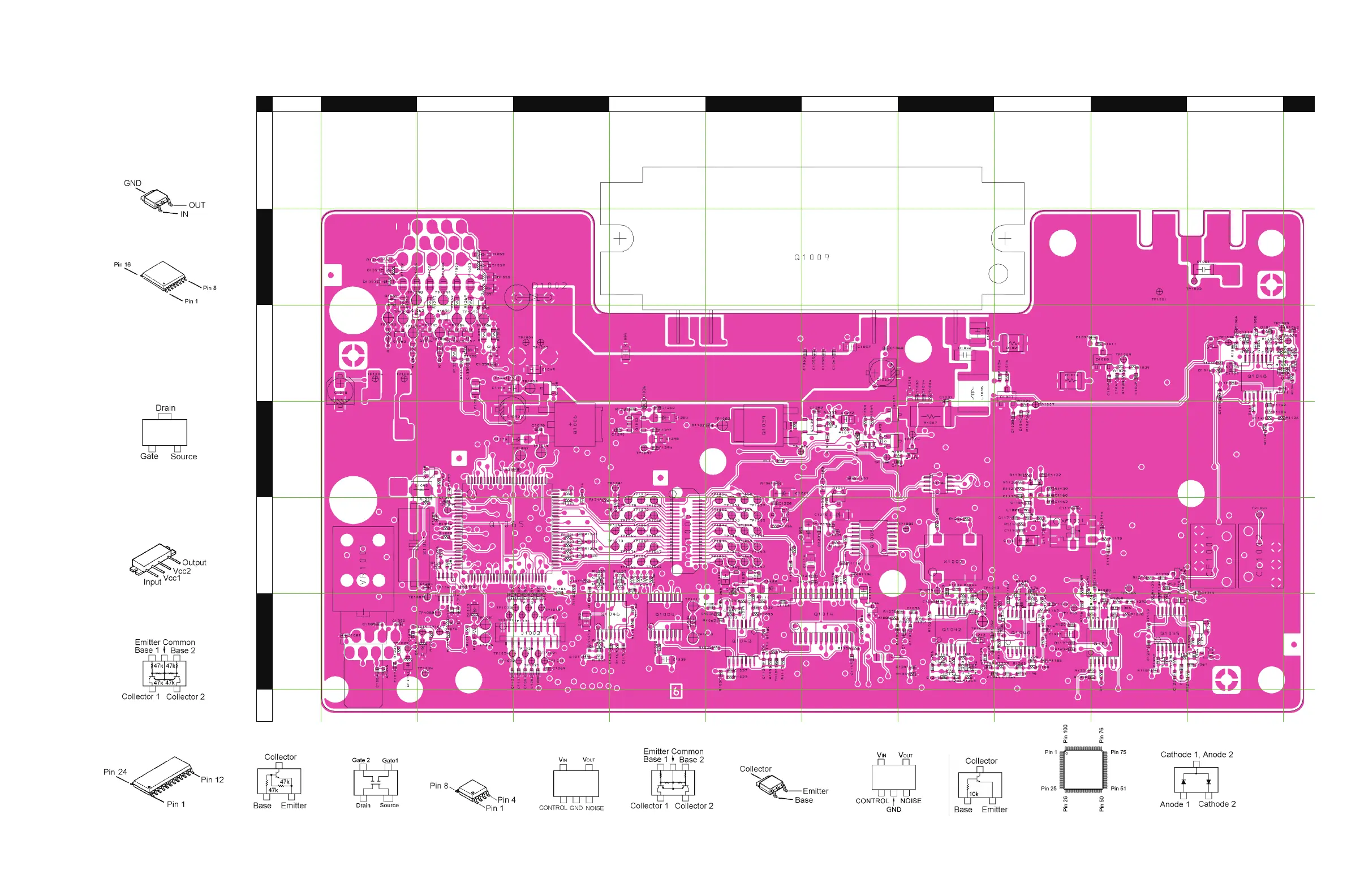

MAIN Unit (Lot. 5~8)
Parts Layout (Side A)
BA DCEFHGIJ
1
2
3
4
5
6
K
MTM231230L (BL)
(Q 1008, 1011, 1012)
2SK397300L
(Q1050, 1055, 1060,
1063, 1070)
NJM7808DL1A
(Q1006)
S-AV32
(Q1009)
UMG2N
(Q1013)
SN74LV4053APWR
(Q1004, 1005)
NJM12902V
(Q1040, 1042, 1043,
1045, 1046, 1048,1049)
LM2902PWR (Lot. 7~)
(Q1045)
M62364FP
(Q1014)
6
HSM88AS (C1)
(D1007, 1008)
MC2850 (A7)
(D1042, 1060, 1061)
2SB1201S-TL
(Q1039)
3SK293 (UF)
(Q1025)
BH2220FVM
(Q1034)
BR93L66RFVM
(Q1061)
LC87F5CC8A
(Q1065)
RT1N441U (N3)
(Q 1016, 1017, 1026,
1041, 1053, 1057,
1062, 1064, 1067)
XN1501 (R5)
(Q1038)
TAR5S50
(Q1052)
TAR5S35(3V5)
(Q1035)
RT1N140U
(Q1058)
VX-2100/-2200
(
VHF
)
Service Manual
