VXR-7000 Programming Setup

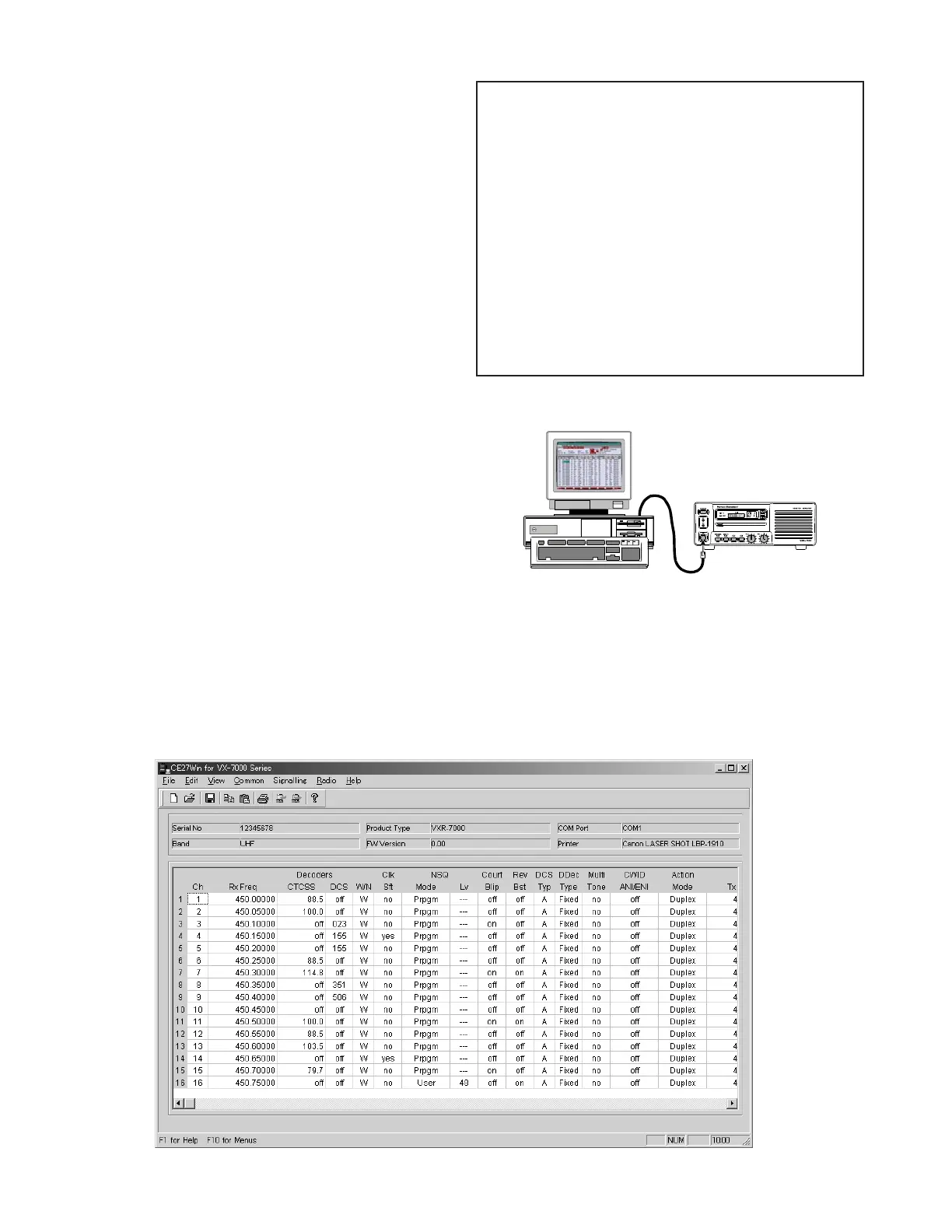

CE27 Main Screen (Left)
CE-27 Programming Software Instruction
With the CE27 Programming Software, you can quick-
ly and easily program the Vertex Standard VXR-7000 re-
peater’s channels and configuration from your personal
computer. In the event of an accidental memory failure,
repeater memory and configuration data may be re-load-
ed in a matter of minutes.
Before connecting the VXR-7000 for programming,
turn off both the computer and the VXR-7000. Now con-
nect the FIF-10A (or FIF-12) + CT-104A USB Program-
ming Interface to the computer’s USB port and the VXR-
7000’s MIC jack.
Then it will be safe to restart the computer; turning off
the equipment during interconnection avoids the poten-
tial for damage to the electronics caused by voltage spikes.
Install the CE27 Programming Software onto your com-
puter’s hard disk drive.
Browse to where the files were saved on the Hard Drive
in above step, then double-click the left mouse button on
the “CE27Win.exe” to start the program. The introducto-
ry screen will appear.
Choose the “Help” contents option (F1) from the pro-
gram’s Menu for assistance with channel programming or
setting of parameters.
Important Note!
 Do not run the original CE27 programming soft-
ware directly. Copy the programming software
to your computer’s hard disk, then run the soft-
ware from the copied software only. Keep the
original software in a safe place in case you need
to make another copy of it at a later date.
 Before creating the programming data for your
VXR-7000 via the CE27 programming software,
upload the current factory hardware environ-
ment data from the VXR-7000, using the [F5]
(ReadRom) command. Use this data profile to
create the programming data for this repeater.
