41VXR-7000 UHF Service Manual

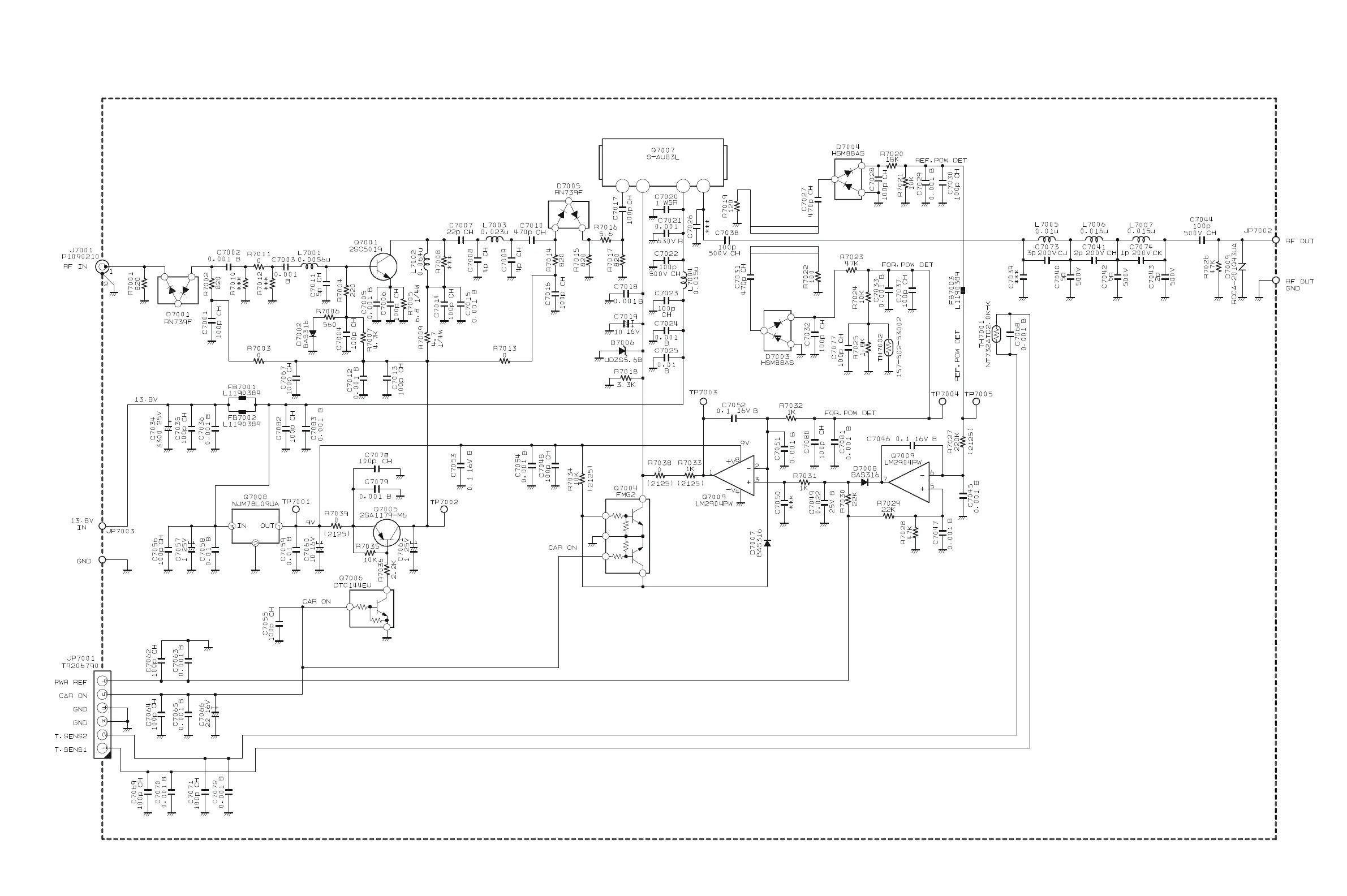

Circuit Diagram

NOTE:

RESISTOR VALUES ARE IN . 1/16W ;

CAPACITOR VALUES ARE IN μF. 50V ;

(T) CAPACITOR VALUES ARE TANTALUM ;

ELECTOROLYTIC CAPACITORS ARE IN μF. 16V ;

INDUCTOR VALUES ARE IN H ;

COIL VALUES ARE IN H ;

UNLESS OTHERWISE NOTED.

PA-2 Unit (Lot. 62~)
