49VXR-7000 UHF Service Manual

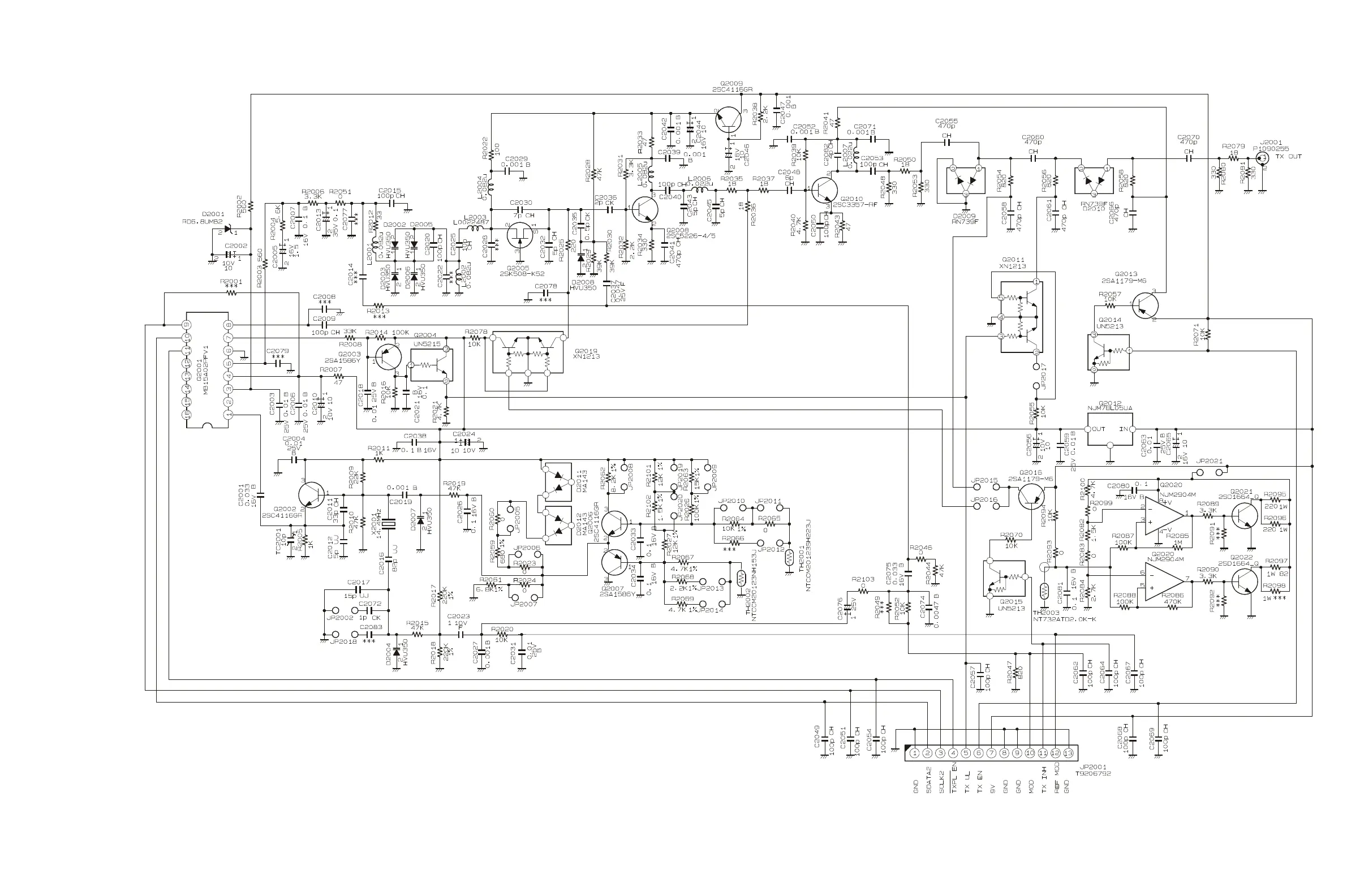

Circuit Diagram (Lot. 1-17)

NOTE:

RESISTOR VALUES ARE IN . 1/16W ;

CAPACITOR VALUES ARE IN μF. 50V ;

(T) CAPACITOR VALUES ARE TANTALUM ;

ELECTOROLYTIC CAPACITORS ARE IN μF. 16V ;

INDUCTOR VALUES ARE IN H ;

COIL VALUES ARE IN H ;

UNLESS OTHERWISE NOTED.

TX Unit (Lot.1-59: Replaced by TX-2 Unit)
