106 VXR-7000 UHF Service Manual

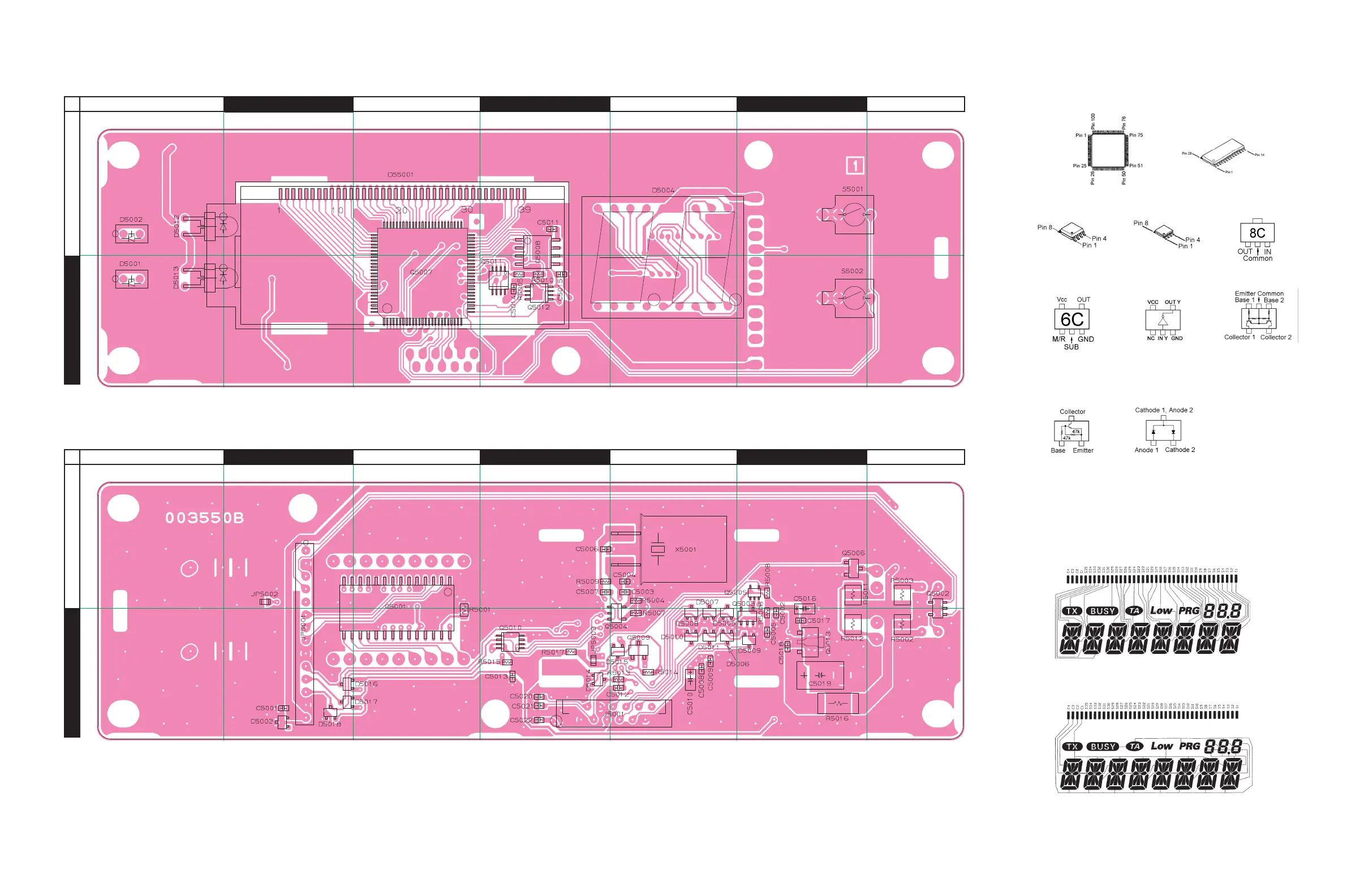

Parts Layout (Lot. 1-107)
2
1
A B C D E F
Display Unit
MA143 (MC)
(D5003, 5005, 5006, 5007,
5008, 5009, 5010, 5011,
5014, 5015, 5016, 5017,
5018)
DN8657S
(Q5001)
NJM78L05UA (8C)
(Q5013)
NM93C86AM
(Q5008)
PST596CNR (6C)
(Q5003)
TC7S04FU (E5)
(Q5005)
TC7W125FU
(Q5010, 5011, 5012)
DTC144EK (26)
(Q5006, 5009)
XN1213 (9L)
(Q5002, 5004)
HD4074829TF
(Q5007)
LCD Display Segmentation Diagram
LCD Display Backplane Diagram
G
2
1
a b c d e f g
Side A
Side B
