Court Blip: Courtesy Blip
Double-click the left mouse button to toggle “on” or
“off.”
When this parameter is set to “on,” this function caus-
es the VXR-7000 to send out a “blip” on the portable/
mobile radio is frequency each time the portable radio is
unkeyed. This provides audible confirmation to the user
that the VXR-7000 was able to receive the transmission
from the portable.
Rev Bst: Reverse Burst.
Double-click the left mouse button to toggle “on” or
“off.”
When this parameter is set to “on,” the CTCSS tone
signal’s phase is inverted just before the repeater turns to
receive. This allows the portable/mobile station’s CTCSS
Decoder to begin switching off, thus reducing the transi-
tion time required.
DCS Typ: DCS Format
This command is effective only when DCS is chosen for
squelch control.
A = “Normal” DCS
B = “Inverted” (complement) DCS
Double-click the left mouse button to select the de-
sired DCS Type.
DDec Type: DCS Decoder Type
This command selects the manner in which DCS is to
be decoded.
Fixed = Decodes only the type selected in above pa-
rameter (DCS Typ: Normal or Inverted).
Auto = Both types (Normal and Inverted) will be de-
coded.
Double-click the left mouse button to select the de-
sired DCS Decoder Mode.

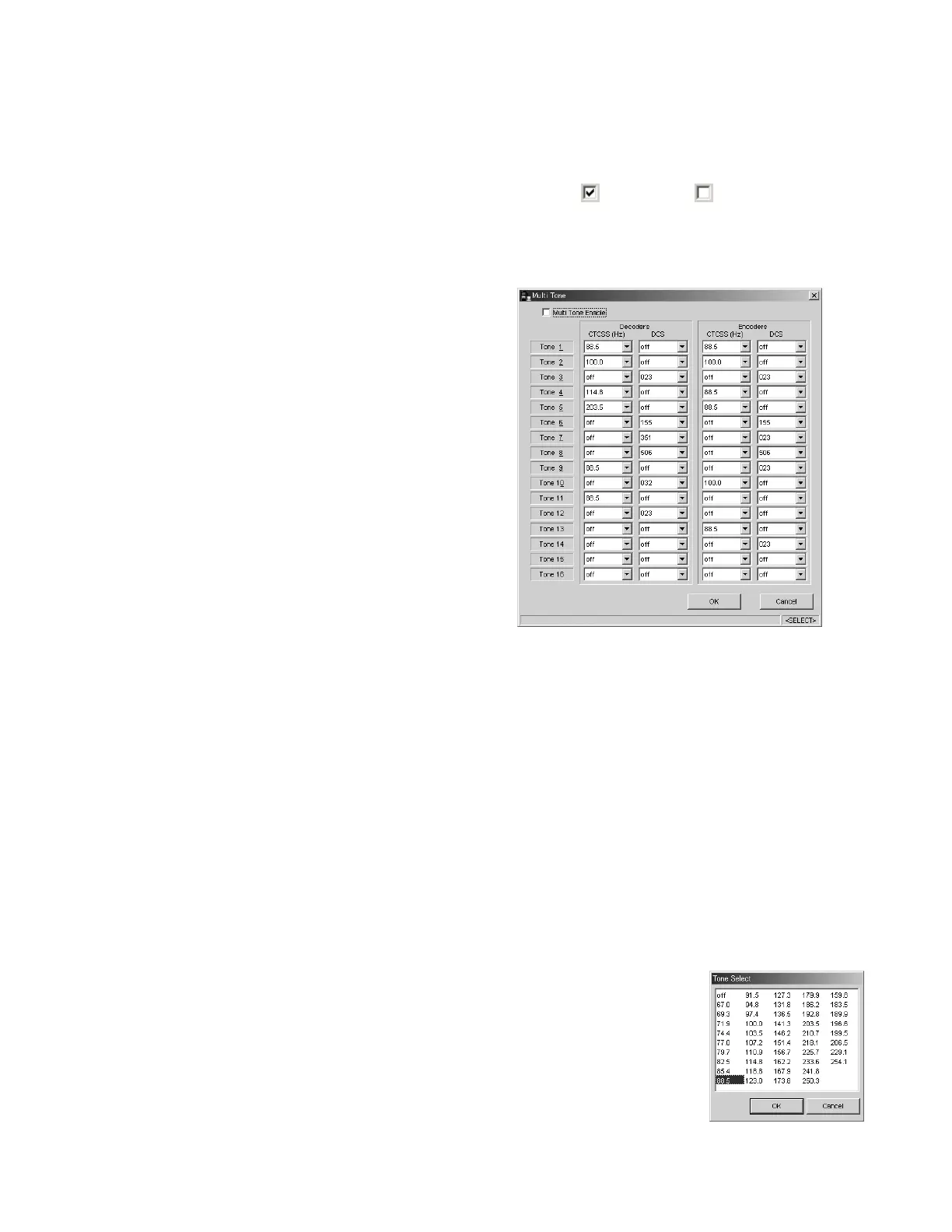

Multi Tone: Enable/disable Multi Tone Operation
Double-click the left mouse button to display the
“Multi Tone” window.
Double-click the left mouse button on the “Multi Tone
Enable” to toggle the Multi Tone Operation between se-
lections “yes (“
”)” and “no (“ ”).”
Click the left mouse button on the appropriate field to
open the “Drop Down List”. Now select the desired CTC-
SS tone or DCS code. You may set as many as 16 CTCSS
tones and/or DCS codes.
CWID ANI/ENI: Select the Identifier mode
Double-click the left mouse button to toggle the selec-
tions “CW ID,” “ANI/ENI,” or “Off.” To select this fea-
ture to the “CW ID” or “ANI/ENI,” the “CW ID” param-
eter must be enabled via the dealer programming.
Action Mode: Select the repeater operation mode
Double-click the left mouse button to toggle between
“Duplex” operation or “Simplex” operation.
Tx Freq.: Edit Transmit Frequency
Use the
[
0
]
-
[
9
]
keys to enter the desired channel fre-
quency directly, and press the
[
E
NTER
]
key.
CTCSS Encoders: Toggle CTCSS Encoder ON/OFF, sets
CTCSS Frequency
Double-click the left mouse
button to display the “Tone Se-
lect” window, click the left mouse
button on the desired tone, then
click the left mouse button on the
[
OK
]
switch to accept the select-
ed tone.
