125VXR-7000 UHF Service Manual

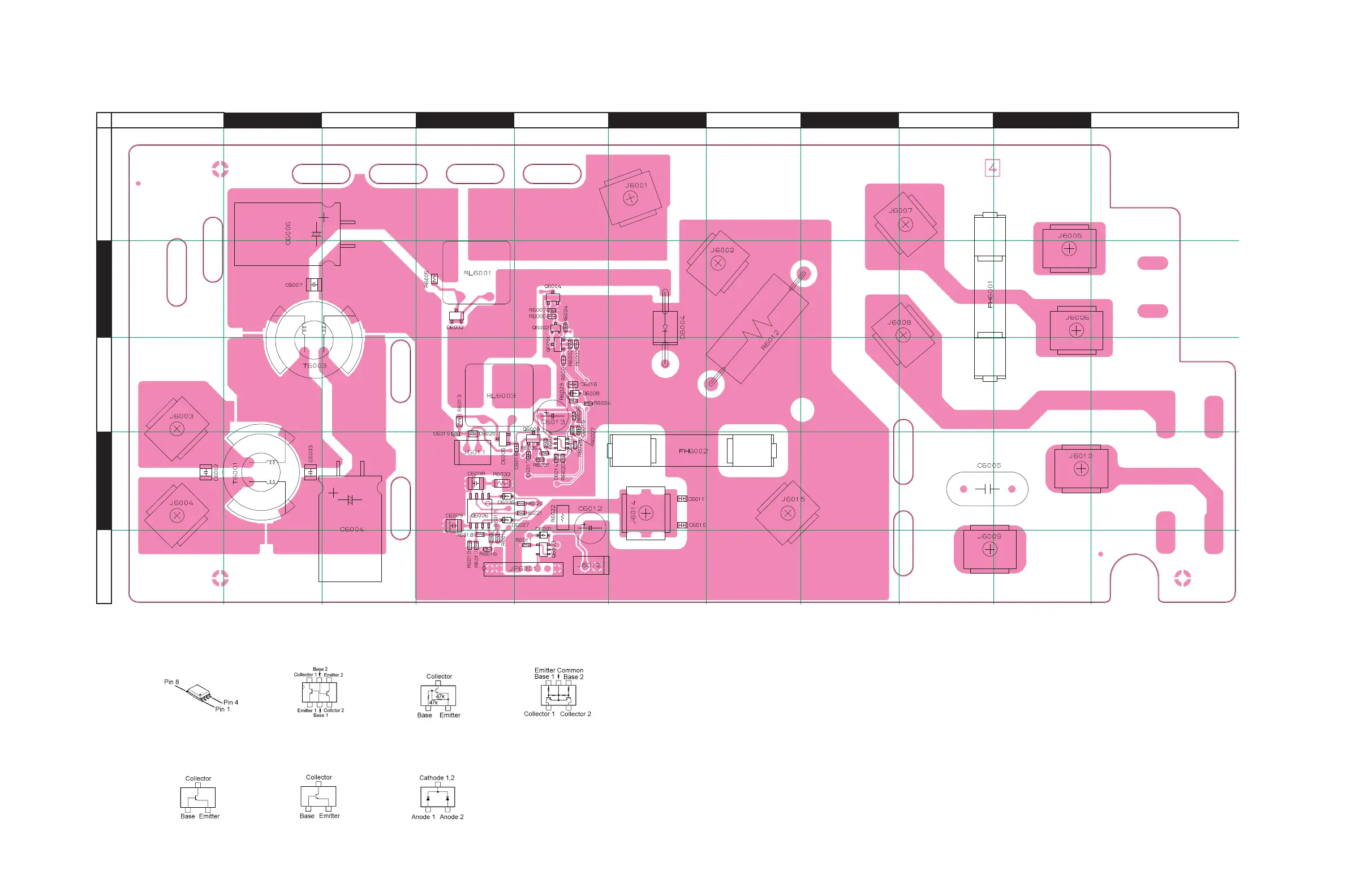

Parts Layout (Side A)
DAN202K (N)
(D6002, 6005)
NJM2904M
(Q6006)
2SA1179 (M6)
(Q6001)
2SC2812 (L6)
(Q6004, 6008)
UN5213 (8C)
(Q6002)
XN1213 (9L)
(Q6003)
IMX1 (X1)
(Q6007)
Filter Unit (50W Type)
Side A
2
1
3
A B C D E F G H I J K
4
5
