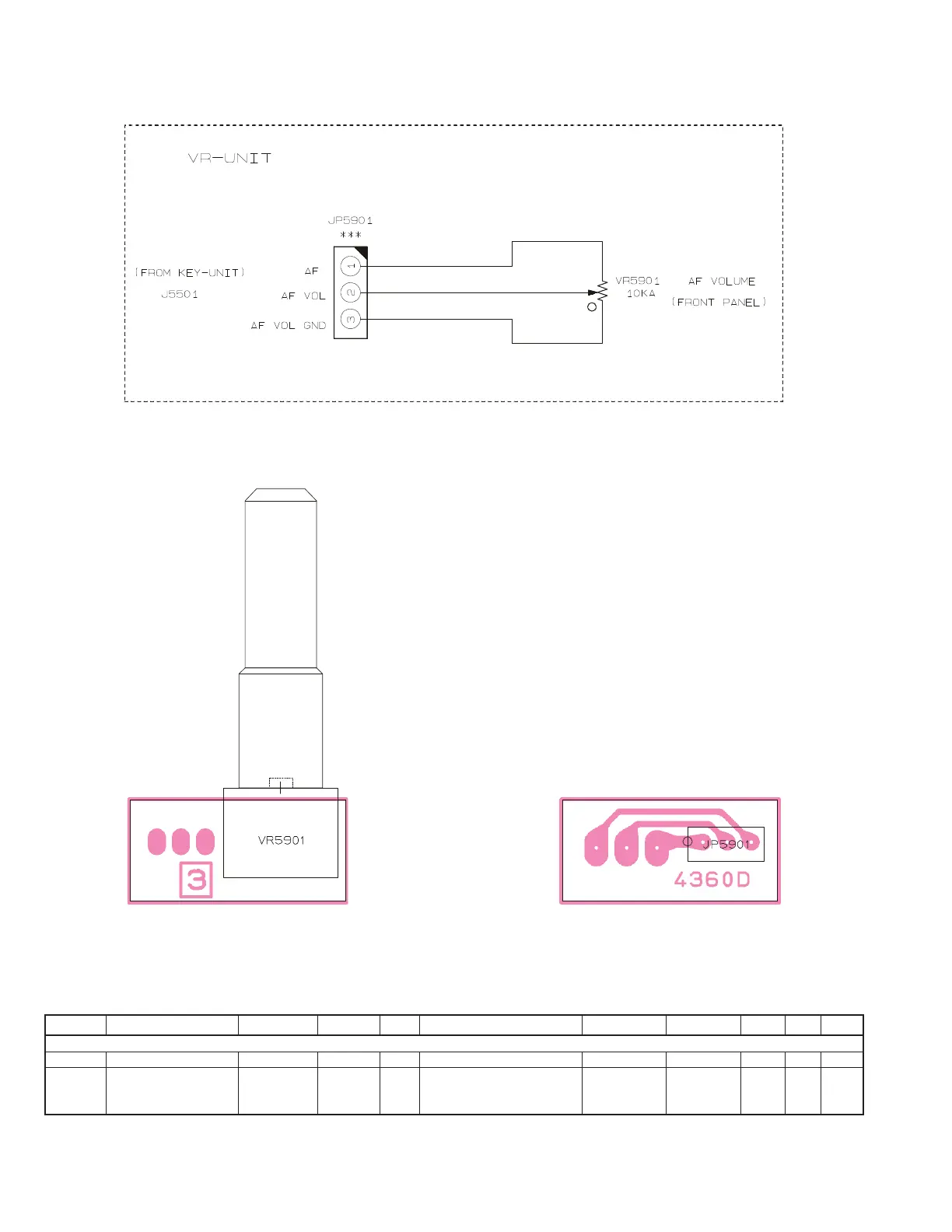

138 VXR-7000 UHF Service Manual

VR Unit

PCB with Components

(

w/o JP5951

)

CS2349101

JP5951 WIRE ASSY T9206811 1- B

VR5901 POT. RK0971110 10KA (L=25) J60800241 1- A

Parts List

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

LAYADR

Circuit Diagram (Lot. 108-)

Parts Layout(Lot. 108-)

Side A Side B
