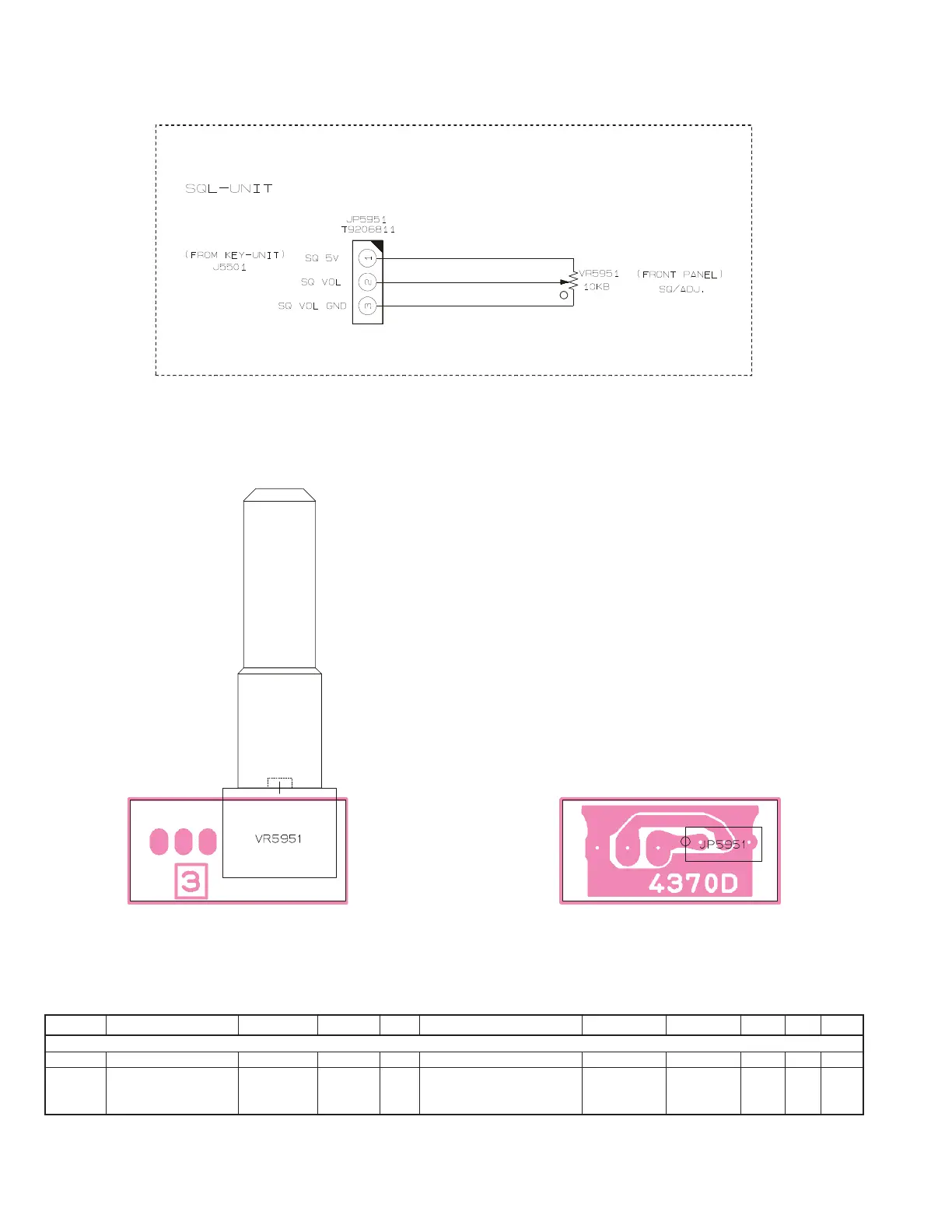

140 VXR-7000 UHF Service Manual

SQL Unit

Parts List

PCB with Components

(

w/o JP5951

)

CS2320101

JP5951 WIRE ASSY T9206811 1- B

VR5951 POT. RK0971110 10KB(L=25) J60800242 1- A

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS. LOT.REF. SIDE

LAYADR

Side A Side B

Circuit Diagram (Lot. 108-)

Parts Layout(Lot. 108-)
