35VXR-7000 UHF Service Manual

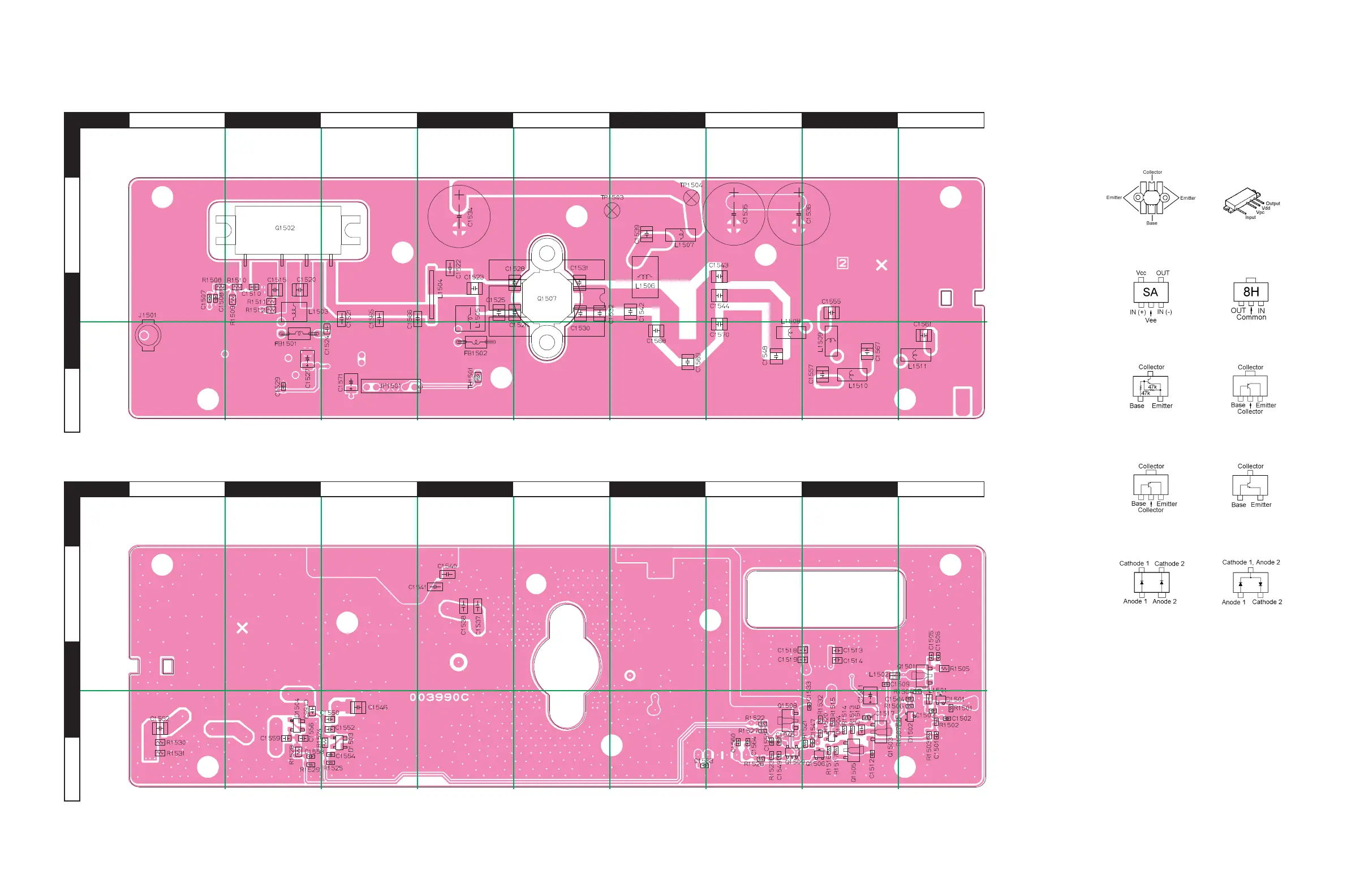

Parts Layout
1SS319 (A4)
(D1503, 1504)
MA143 (MC)
(D1502)
RN739F (5F)
(D1501)
NJM78L09UA (8H)
(Q1508)
TA75S01F (SA)
(Q1509)
PF0342A (Ver. D)
PF0341A (Ver. A)
(Q1502)
2SB1122S (BE)
(Q1503, 1505)
2SC3357 (RK)
(Q1501)
2SC4116GR (LG)
(Q1504)
2SC3102
(Q1507)
UN5213 (8C)
(Q1506)
2
1
Side A
A CEDB
PA Unit (Lot. 1-61: Replaced by PA-2 Unit)
GF IH
3
Side B
2
1
a cedb gf ih
3
