43VXR-7000 UHF Service Manual

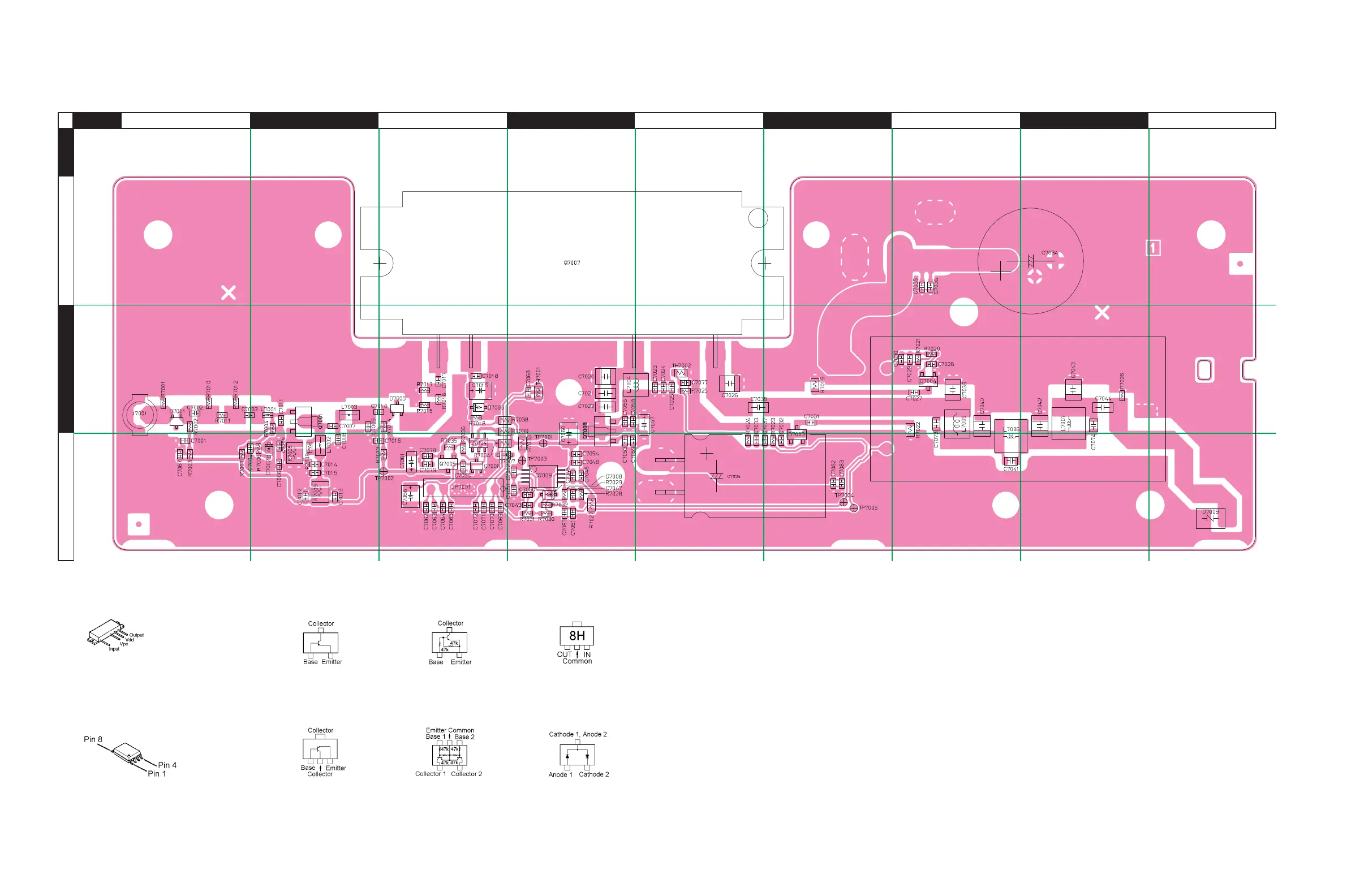

Parts Layout (Side A)
2
1
A CEFDB
PA-2 Unit (Lot. 62~)
G H I
3
HSM88AS (C1)
(D7003, 7004)
RN739F (5F)
(D7001, 7005)
NJM78L09UA (8H)
(Q7008)
S-AU83L (25 W Version: Lot 63-70)
S-AU83L (25 W Version TYP BS1: Lot 71-)
RA30H4452M (25 W Version TYP D: Lot 71-)
S-AU93 (50 W Version)
(Q7007)
2SA1179M6 (M6)
(Q7005)
DTC144E (26)
(Q7006)
LM2904PWR
(Q7009)
2SC5019 (1W)
(Q7008)
2SC5415 (EA)
(Q7001)
FMG2 (26)
(Q7004)
