51VXR-7000 UHF Service Manual
b
RN739F (5F)
(D2009, 2010)
MB15A02PFV
(Q2001)
NJM78L05UA (8C)
(Q2012)
2SA1586Y (SY)
(Q2003)
2SC3357 (RK)
(Q2010)
2SC4116GR (LG)
(Q2002, 2006, 2009)
2SC5226 (R22)
(Q2008)
2SK508 (K52)
(Q2005)
UN5213 (8C)
(Q2014, 2015)
UN5215 (8E)
(Q2004)
XN1213 (9L)
(Q2011, 2019)

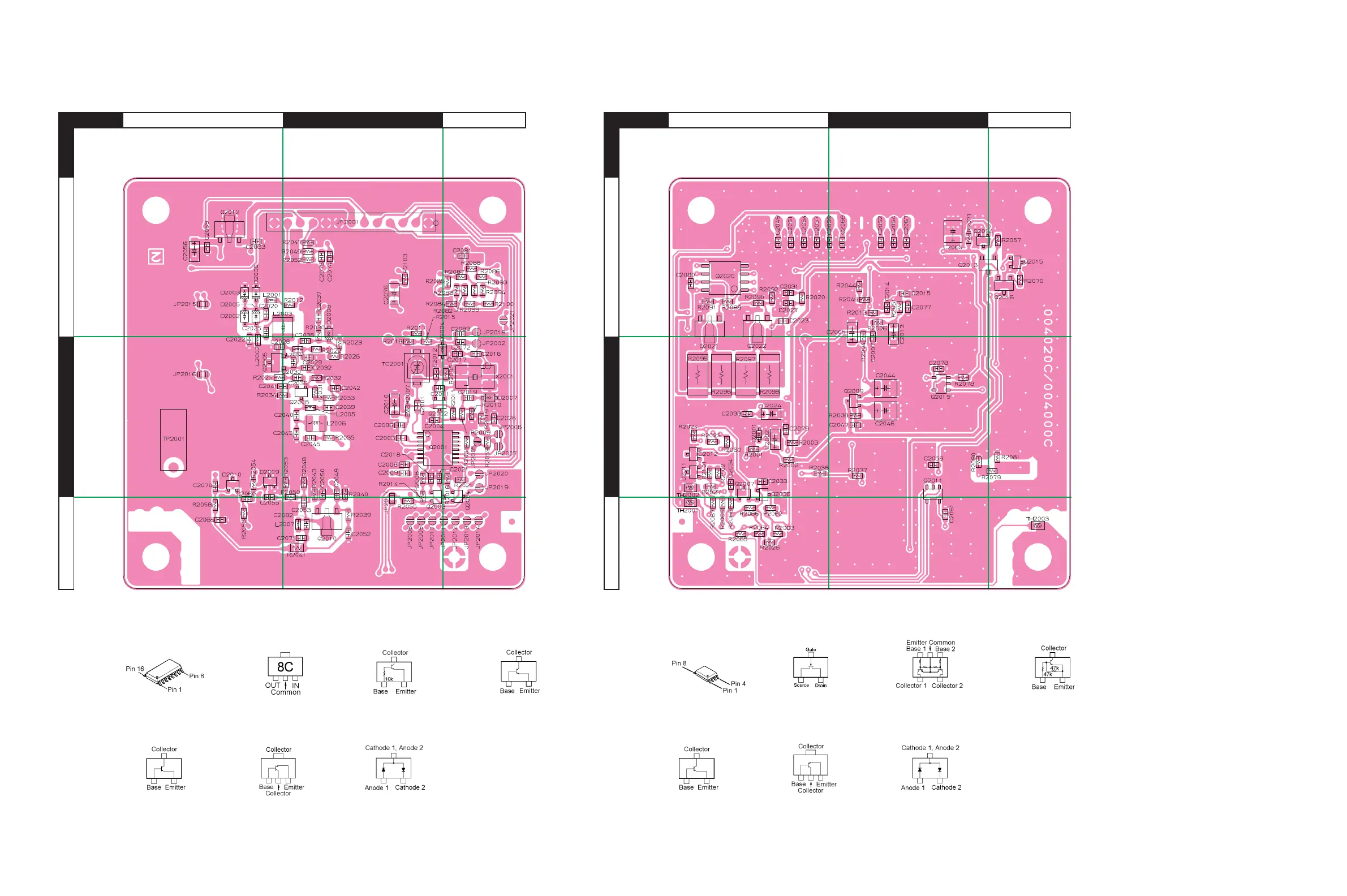

Parts Layout
Side A Side B
1
3
2
1
3
2
2SA1179 (M6)
(Q2013, 2016)
2SA1586Y (SY)
(Q2007)
MA143 (MC)
(D2011, 2012)
NJM2904M
(Q2020)
2SD1664 (DA)
(Q2021, 2022)
TX Unit (Lot.1-59: Replaced by TX-2 Unit)
ac
BAC
