Vertex Standard VXR-7000 Service Manual

79VXR-7000 UHF Service Manual

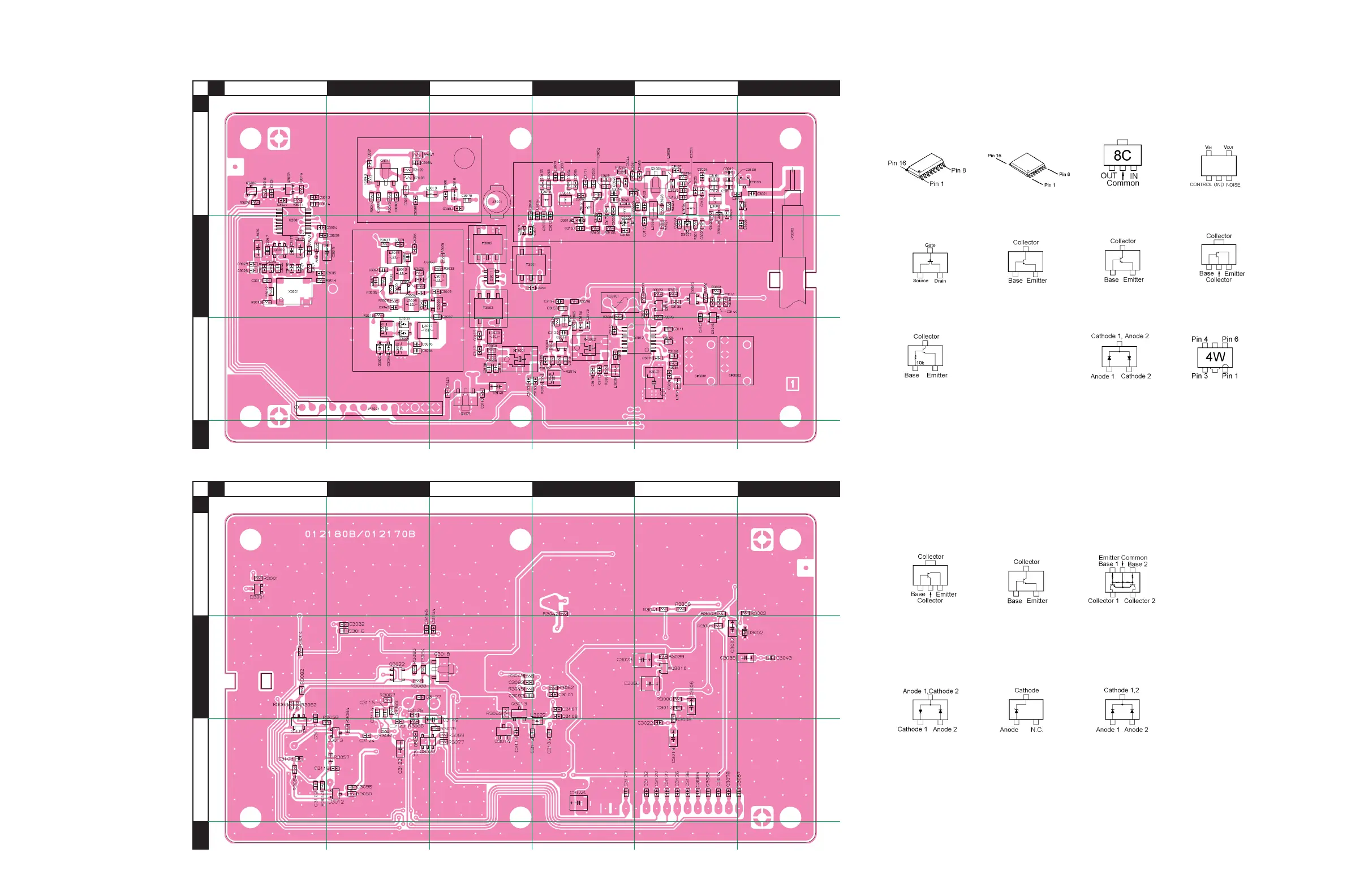

Parts Layout
Side A
Side B
MA142WK (MU)
(D3012, 3013)
XN1213 (9L)
(Q3016, 3020, 3022)
MA143 (MC)
(D3015, 3016)
RN739F (5F)
(D3003)
GN2011-Q (4W)
(D3011)
MB15A02PFV
(Q3001)
TA31136FN
(Q3012)
NJM78L05UA (8C)
(Q3021)
2SC3357 (RK)
(Q3005, 3011)
UN5215 (8E)
(Q3004)
2SC2812 (L6)
(Q3013)
2SC4116GR (LG)
(Q3010)
HZM5.6NB2 (562)
(D3014)
2SK508 (K52)
(Q3008)
2SA1586Y (SY)
(Q3003)
2SC4116GR (LG)
(Q3015)
2SC5226 (R22)
(Q3009, 3014)
RX-2 Unit (Lot. 60-)
A B C D
1
2
2SB1122S (BE)
(Q3018)
1SS302 (C3)
(D3001)
E F
4
3
a
b
c
d
1
2
e
f
4
3
TAR5S30 (SY)
(Q3002)
