Vertex VT4826+ User Manual

8
If A2FU=None, it means alarm function is cancelled.
bd.Hi, bd.Lo
t.on, t.oFF

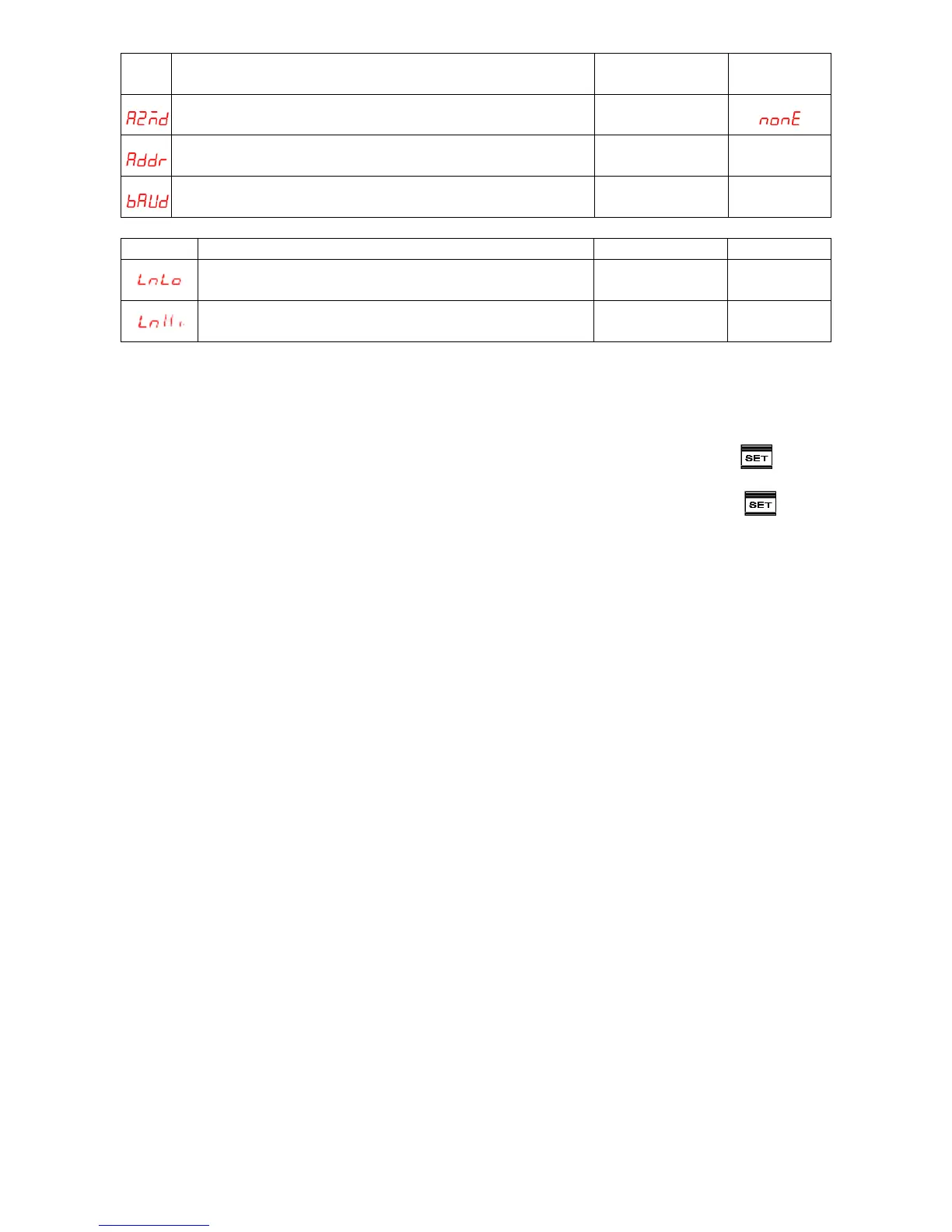

Alarm 2 mode. Refer to alarm mode section for detail.
none, Stdy,
Lath, St.La
Address of controller when communication with
master device.
0 - 255
1
Communication baud rate. 2.4k=2400bps, 4.8k=4800
bps, 9.6k=9600 bps, 19.2k=19200 bps
2.4k, 4.8k
9.6k, 19.2k
9.6k
Code
Description
Range
Default
Low Scale of Linear Input
-1999~9999(-
199.9~999.9)
0.0
High Scale of Linear Input
-1999~9999(-
199.9~999.9)
100.0
Scaling for Linear Input
1. Press the UP and DOWN keys simultaneously for 5 seconds to access “LnLo”
parameter.
2. Adjust “LnLo” setting to correspond the low scale and after adjustment press key
once to access “LnHi” parameter.
3. Adjust “LnHi” setting to correspond the high scale and after adjustment press key
once for normal operation.
■ ALARM FUNCTION
Select the alarm function
nonE – Alarm action off.
Hi – Process high alarm with Form A contact
Lo – Process low alarm with Form A contact
diF.H – Deviation high alarm with Form A contact
diF.L – Deviation low alarm with Form A contact
bd.Hi – Deviation band high alarm with Form A contact
bd.Lo – Deviation band low alarm with Form A contact
t.on – On-timer with Form A contact
t.oFF –Off-timer with Form A contact
b noE – Alarm action off
b.Hi – Process high alarm with Form B contact
b.Lo – Process low alarm with Form B contact
b.diH – Deviation high alarm with Form B contact
b.diL – Deviation low alarm with Form B contact
b.bdH – Deviation band high alarm with Form B contact
b.bdL – Deviation band low alarm with Form B contact
b.ton – On-timer with Form B contact
b.toF –Off-timer with Form B contact
