To connect a device from the wing to the electronics bay using 3 wires, 2 connector pairs will need to be
extended and thus 2 sets will be required. The connectors from the fuselage to the VTOL modules have 5
positions available for expansion. The connectors from the VTOL modules to the wings have 3 positions
available for expansion.
The connector pins are attached to 600mm 26AWG wire. This wire can be inserted through the front of the
housing. Before inserting the connector some adhesive must be applied to the outside of the pin, ensure the
adhesive does not cover the contact surfaces. Even if the pin inserts firmly into the housing it could become
detached when the temperature changes and no adhesive was applied.
The connector housings can be unscrewed from the wing joiners for ease of access.
Note: Vertical Technologies can not be held responsible for any damage or failure resulting from improper
use of the connector system.
This chapter covers the command and control features of the vehicle.
Ground Control Station overview
Planning a mission
Survey missions
Pre-flight checks
Executing and monitoring a mission
Post flight

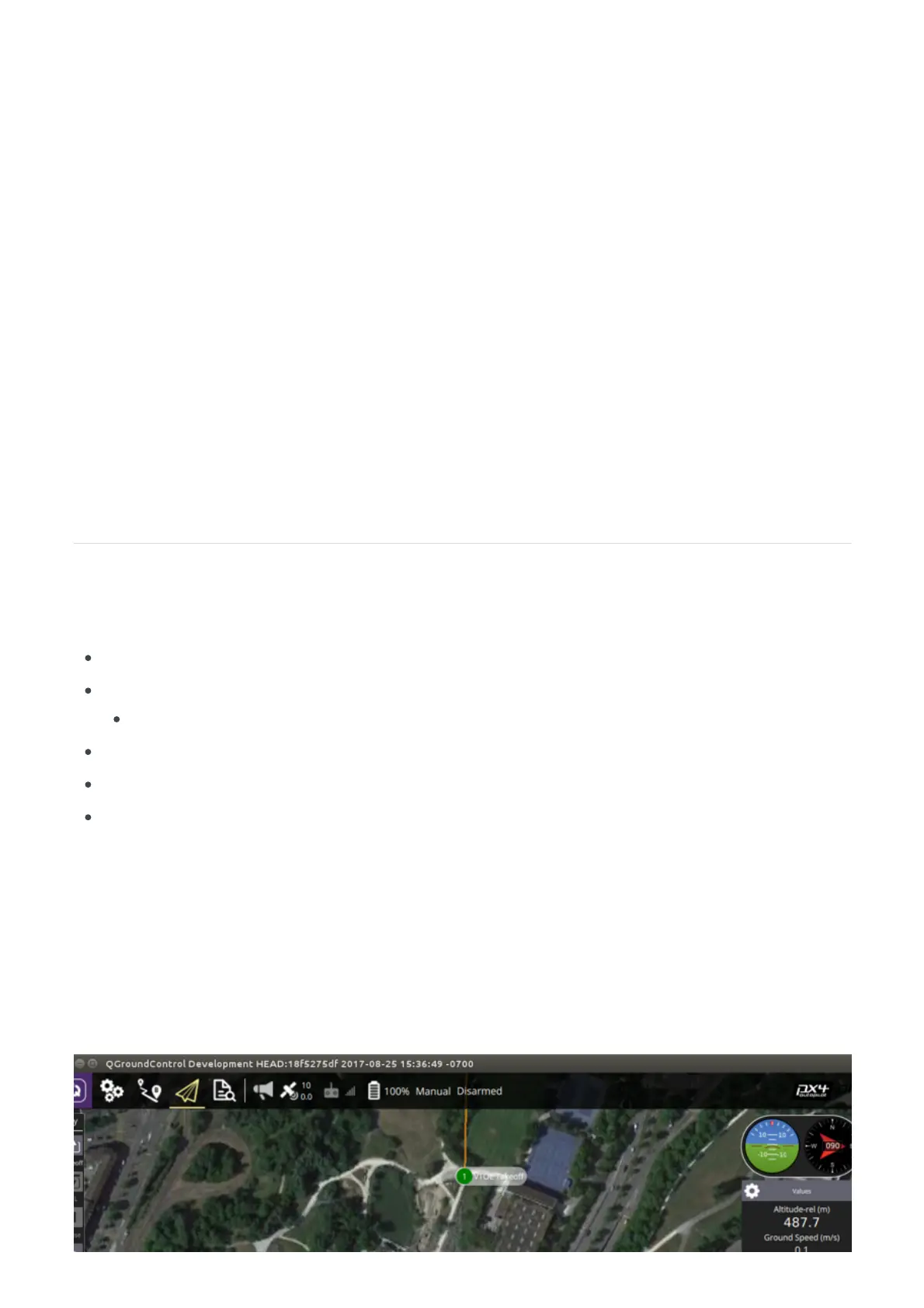

Ground Control Station overview
The DeltaQuad uses QGroundControl as its primary Ground Control Station (GCS). After
you will see the primary interface. The GCS consists of buttons and has been
optimized for use with touch screen devices.
installing and
connecting your GCS
