Vertiv Liebert DA265 - Page 66

REV : 2
REV DATE : 1/20
DPN004368
Page :1 /1
DA250, DA265
Form No.: DPN001040_REV4

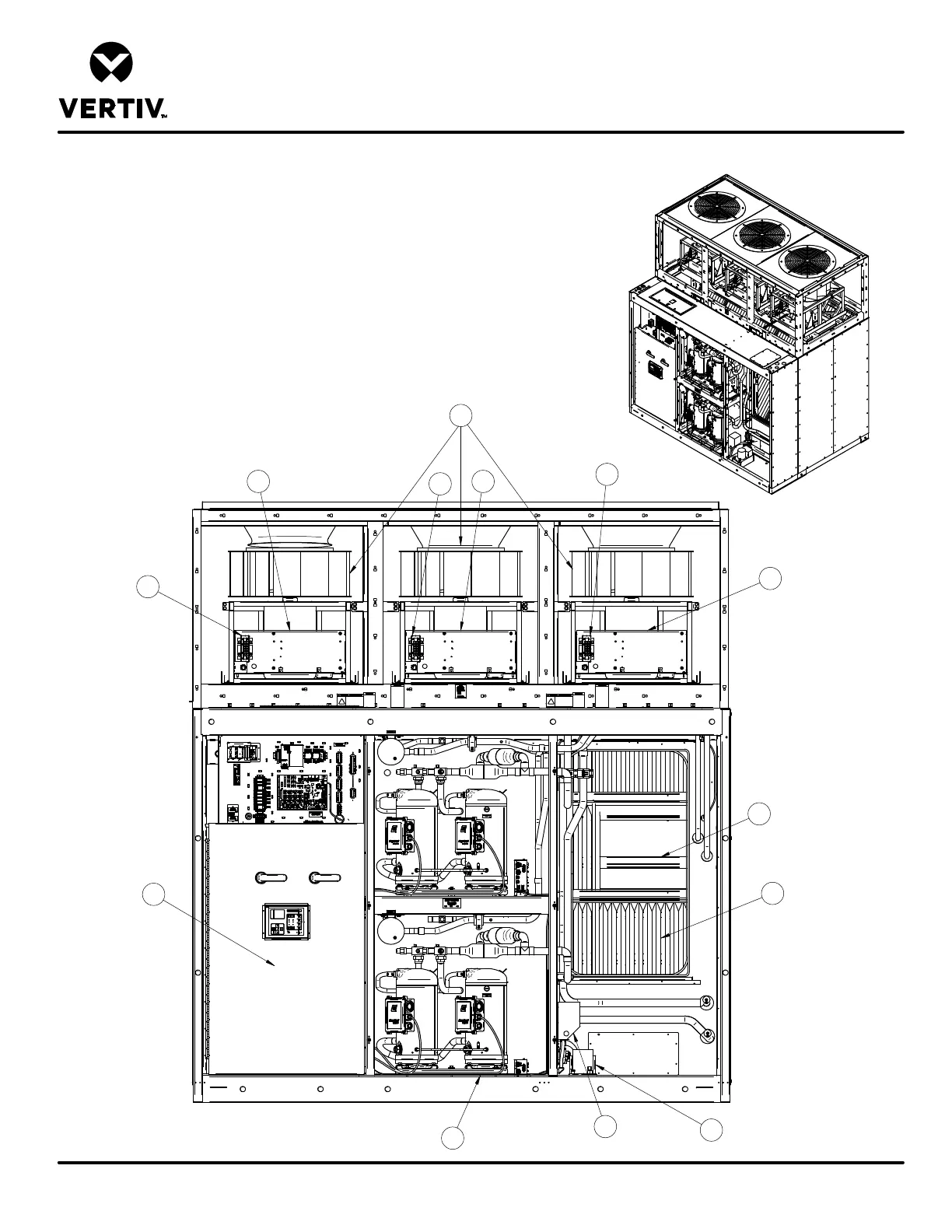

COMPONENT LOCATION DIAGRAM
LIEBERT
®
DSE
1. Blower/Motor (Typical 3)
2. Line Reactor Transformers (Typical 3)
3. Evaporator Coil
4. Air Filters
5. Condensate Pump (optional)
6. Compressor Compartment
7. Electric Panel
8. 575v Step Down Transformer
9. VFD Assemblies (Typical 3)
1
4
5
6
7
8
3 Filter removed for clarity
2
2
2
9 9
9
