DA250, DA265 W/ HORIZONTAL DISCHARGE
Form No.: DPN001040_REV4

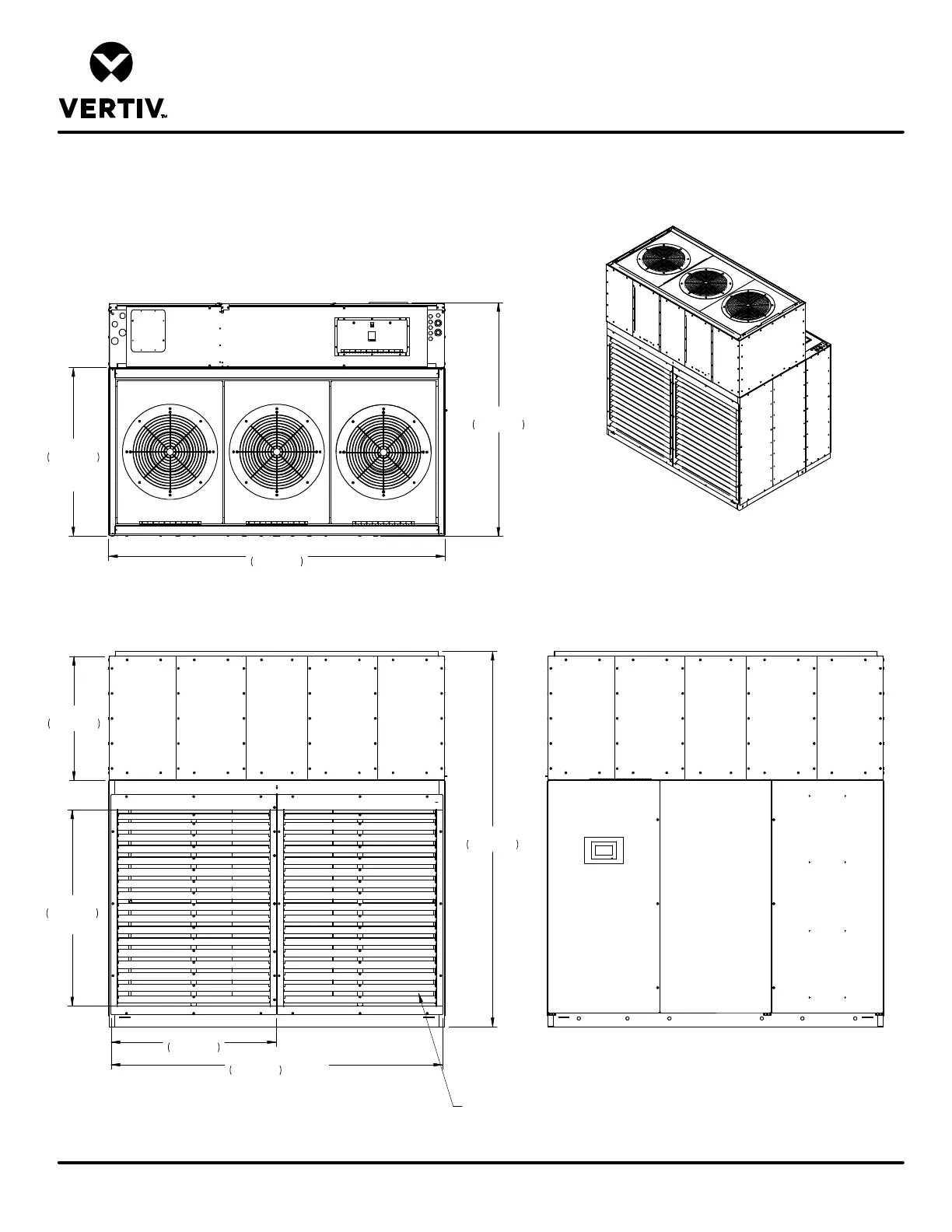

CABINET DIMENSIONAL DATA
LIEBERT
®
DSE
Notes:
1. Louvers in non-raised floor application.
Front View
(Data Hall Side)
Top View
Rear View
(Service on Gallery Side)
For Unit Disassembly Data
Refer to DPN004369
83 1/2"
2122mm
120 1/8"
3051mm
60 1/8"
1528mm
Fan
Section
134 1/8"
3406mm
70"
1779mm
Louvers
44 3/8"
1127mm
59"
1499mm
118 3/8"
3007mm
Louvers
