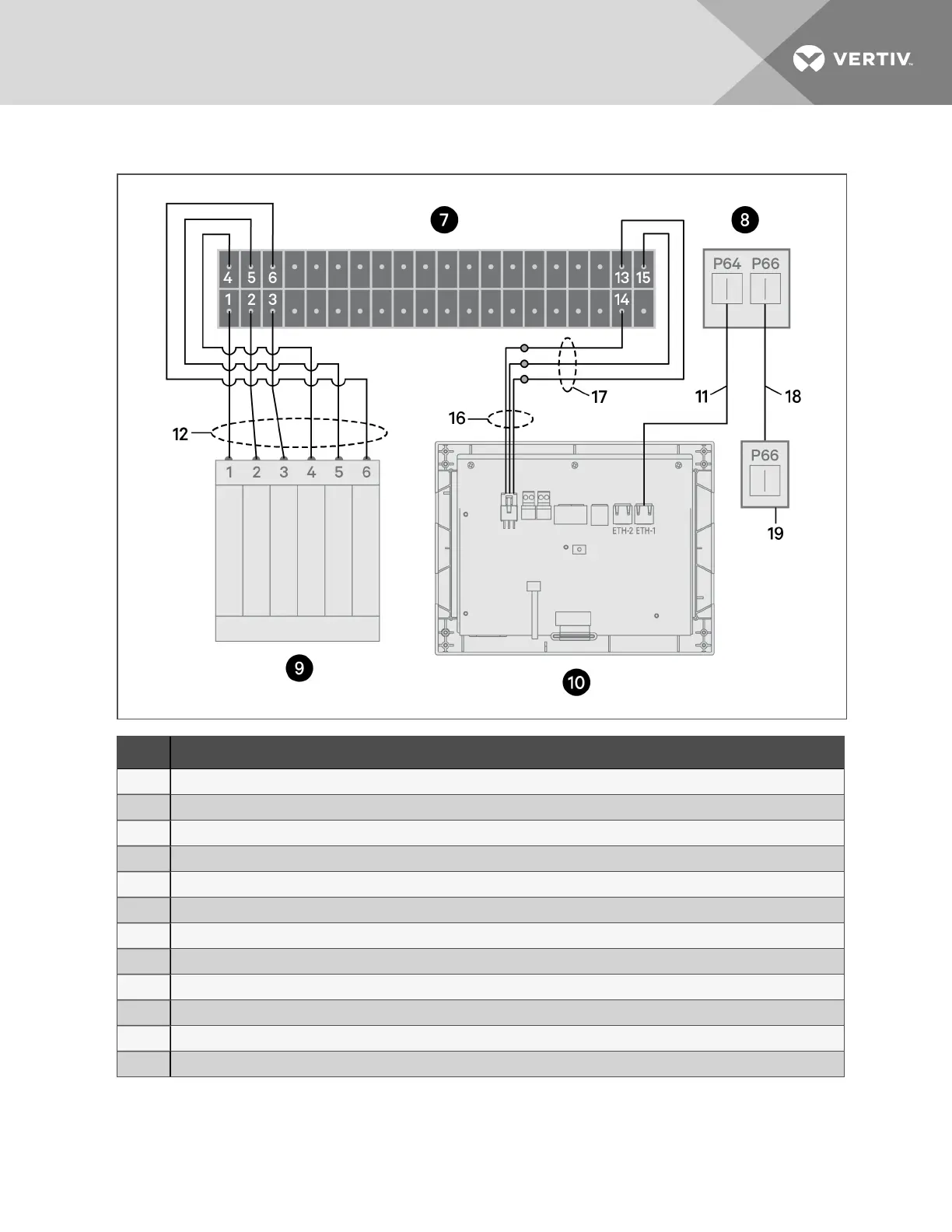

Figure 5.1 Typical Electrical Field-connection Overview
Item Description
1 to 6 Terminal connections between the evaporator module and the condensing unit
7 Terminal strip in the evaporator module
8 iCOM-control board in the evaporator module
9 Condensing unit
10 iCOM-display, field-mounted
11 Field-supplied CAT5 cable
12 Field-supplied, shielded Class 1 wiring
13 to 15 Terminal-strip connections on evaporator module for wiring connected to the harness wires from the wall-mount display.
16 Factory-supplied wiring harness with plug. Wires are identified as TS-13, TS-14, and TS-15 and are 8-in. (203-mm) long.
17 Field-supplied, shielded Class 1 wiring
18 Factory-supplied CAT5 cable, 30ft(9m)
19 Temperature/Humidity sensor, field-mounted
5 Electrical Connection Requirements 25
