Vertiv Liebert Mini-Mate MT048 - 4 & 5 ΤΟΝ OPTIONAL SUPPLY GRILLE DIMENSIONAL DATA

REV : 0
REV DATE : 7/18
DPN004842
Page :1 /1
Form No.: DPN001040_REV4
LIEBERT MINI-MATE
VARIABLE CAPACITY

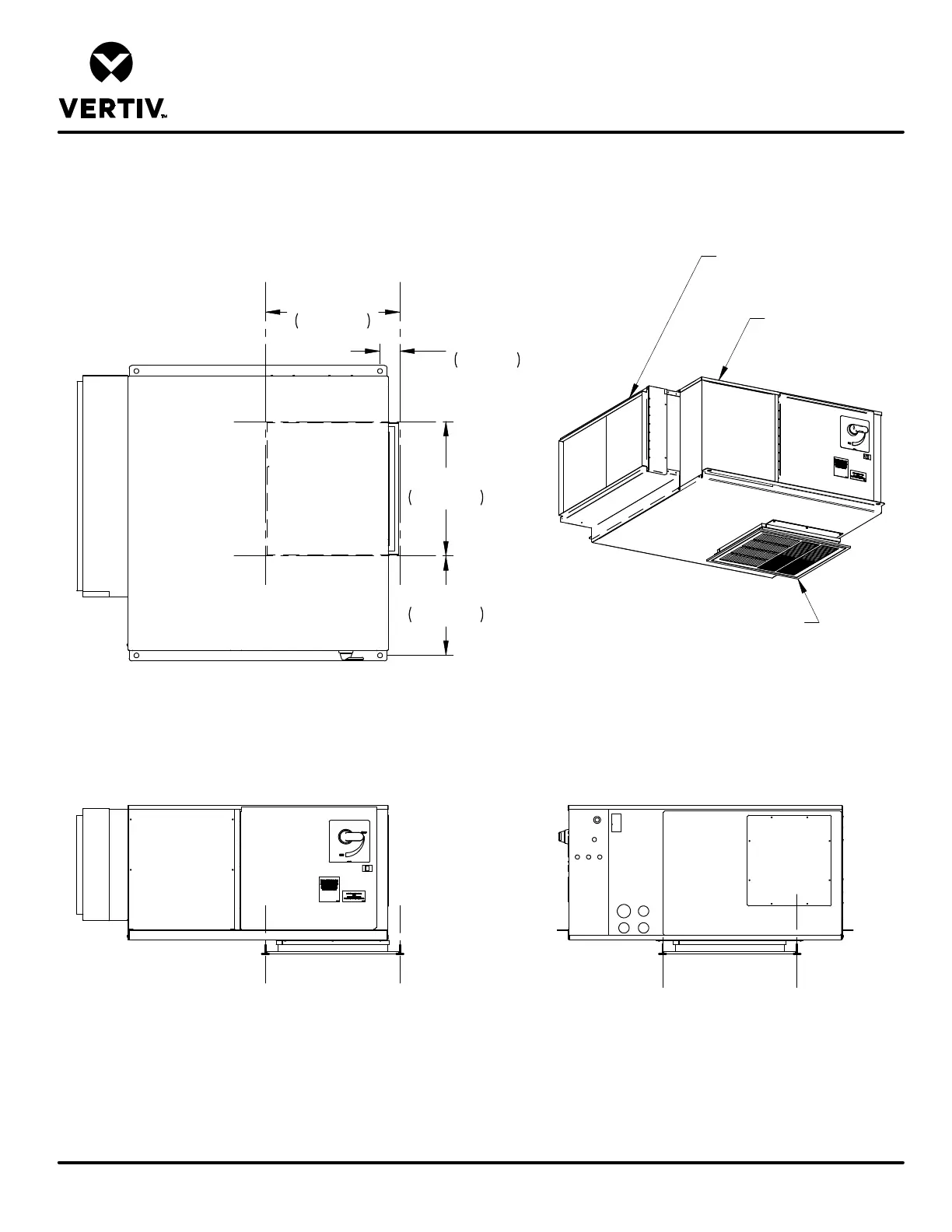

4 & 5 TON OPTIONAL SUPPLY GRILLE DIMENSIONAL DATA
Front of
Unit
24"
610mm
17 3/4"
451mm
3 9/16"
90mm
24"
610mm
24" (610 mm) X 24" (610 mm)
Three Way Supply Grille
supported by Drop Ceiling
T-Bars
Optional Return
Air Filter
T-BAR
‰
T-BAR ‰
See DPN004055 for
cabinet dimensions.
Top of Unit
T-BAR ‰ T-BAR ‰
T-BAR ‰
T-BAR ‰
Front of Unit
T-BAR ‰
T-BAR ‰
Right Side of Unit
