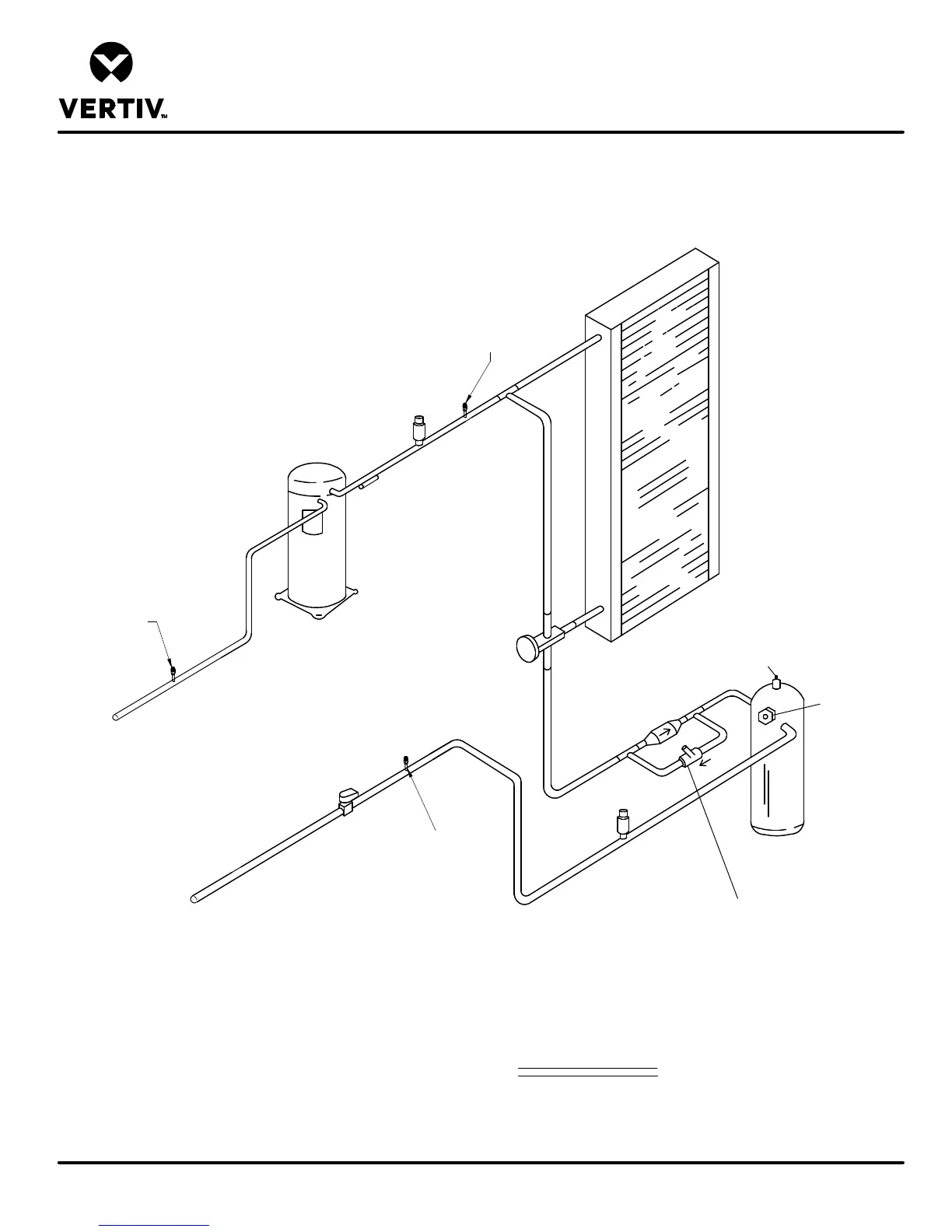

GENERAL PIPING ARRANGEMENT
CONDENSING UNIT
REV : 1
REV DATE : 08/17
DPN004062
Page :1 /1
Form No.: DPN001040_REV4
LIEBERT PFD
Condenser Coil
High Pressure
Switch
Digital
Compressor
3 - Way Head
Pressure
Control Valve
Check Valve
Atmospheric
Pressure Relief Valve
Sight Glass
Lee - Temp
Receiver
Liquid Line
Solenoid Valve
Liquid Line
Suction Line
Receiver Heater
Pressure Limiting
Switch
Pressure Balancing
Valve
FACTORY PIPING
Discharge
Temperature
Thermistor
Schrader
Port
With Valve Core
Schrader
Port
With Valve Core
Schrader
Port
With
Valve Core
