Vertiv Liebert PFD - Page 46

REV : 2
REV DATE : 3/18
DPN004180
Page :1 /1
Form No.: DPN001040_REV4

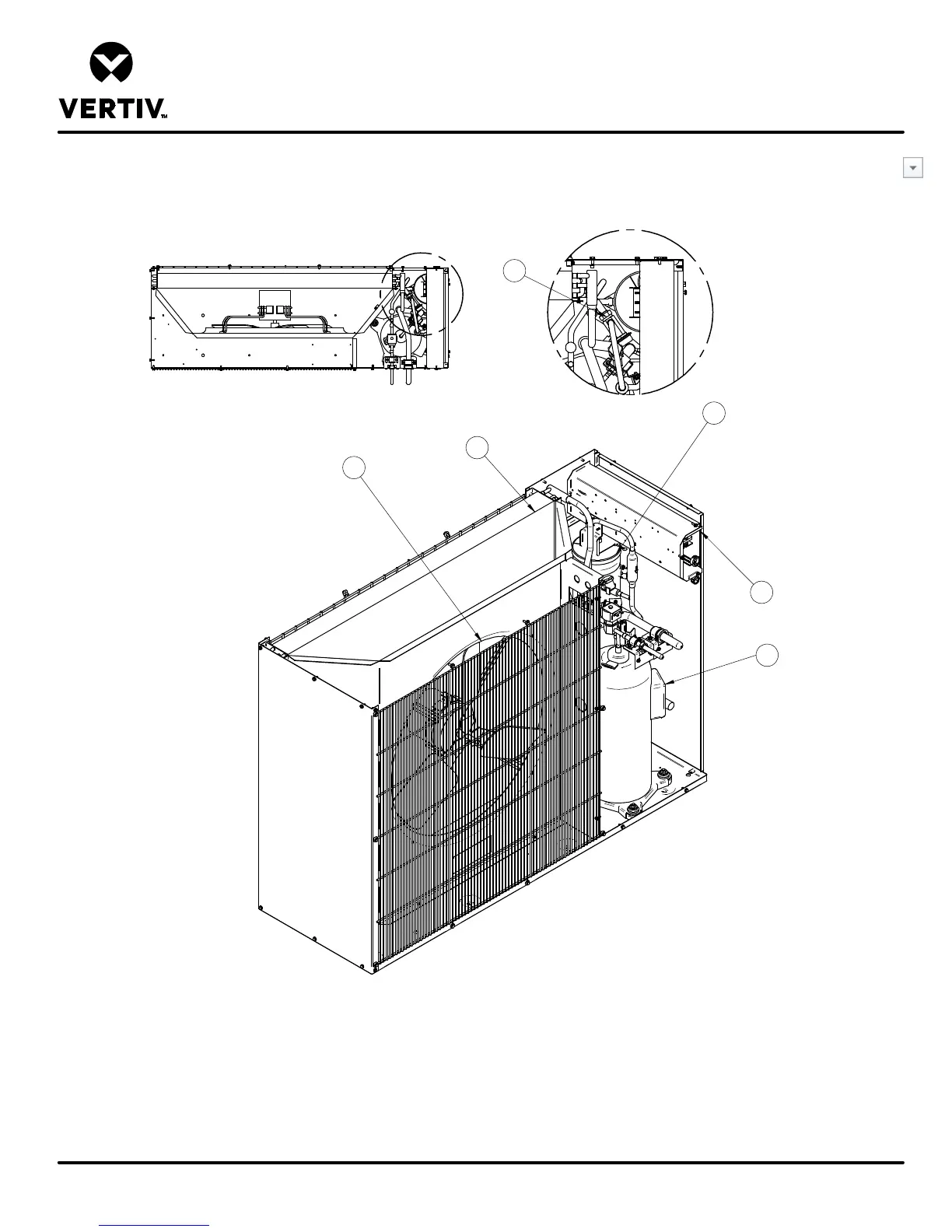

COMPONENT LOCATION DIAGRAM
TYPICAL HORIZONTAL DISCHARGE CONDENSING UNIT
LIEBERT PFD
1
2
3
4
5
1
Fan with Direct-drive motor
2
Condenser coil
3
Electric box
4
Heated Receiver
5
Variable-Capacity Digital Scroll Compressor
6
Head Pressure Control Valve (Lee-Temp)
Top View
A
DETAIL A
6
