Vertiv Liebert RX - Figure 5 Input Electrical Field Connection Location for Units Without Main Panelboard Breaker

Vertiv | Liebert
®
RX
™
Remote Distribution Cabinet User Manual | 11

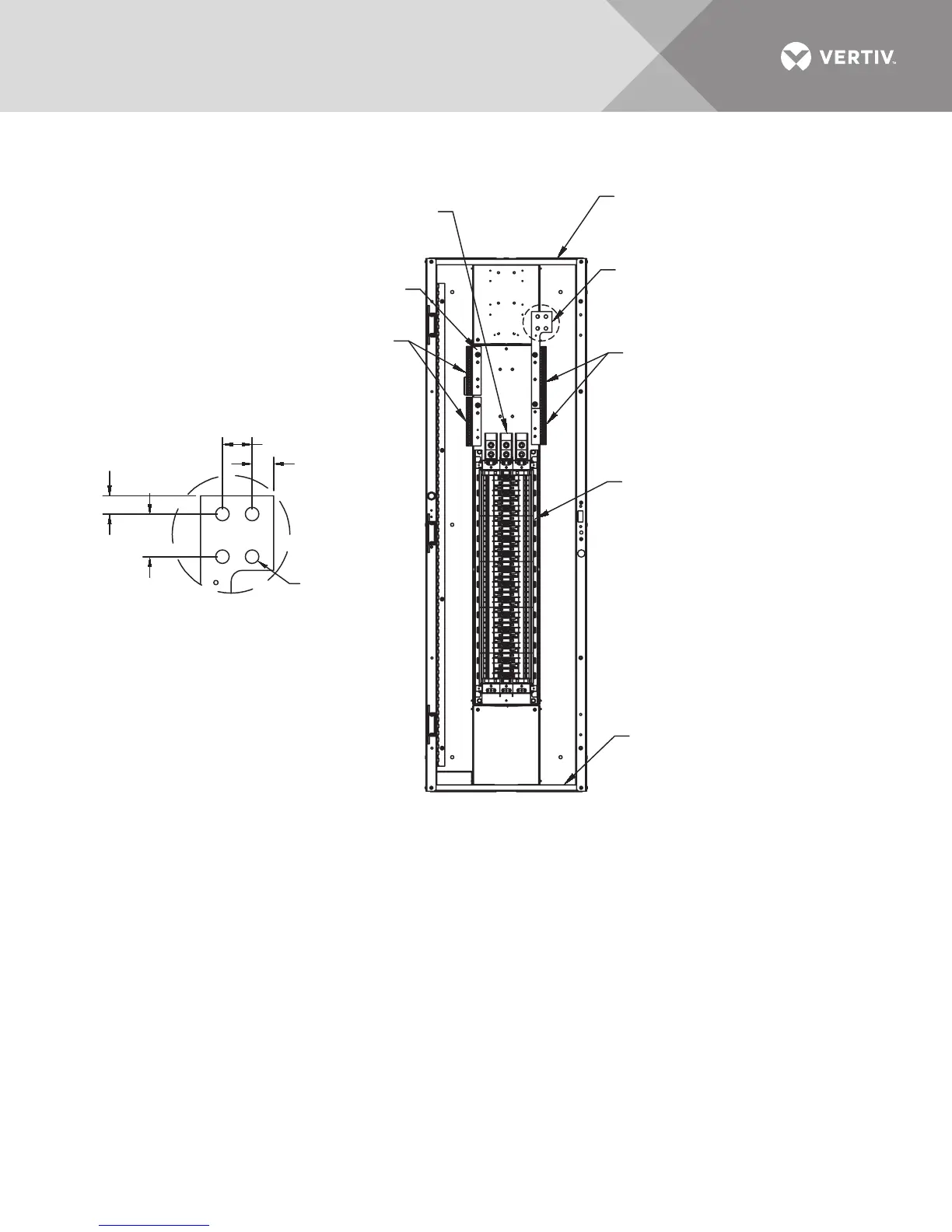

Figure 5 Input electrical field connection location for units without main panelboard breaker
Ground
Busbar
Neutral
Busbar
Input Ground Connection
5/16-18 x 1.5" Stud
Input Neutral Connection
See Detail A
Input Power Connection
Mechanical lug for
(2) 1/0-750kCMIL
Distribution Cable Conduit
Plate; 56 knockouts, each Ø 0.875"
for 1/2" conduit and 28 knockouts,
each Ø 1.125" for 3/4" Conduit
84-Pole
Distribution
Panelboard
Distribution Cable
Conduit Plate
84 knockouts, each Ø 0.875"
for 1/2" conduit
DETAIL A
RX15005
Rev. 2
Ø 0.563
(14.29mm)
4 Places
0.75"
(19.1mm)
1.75"
(44mm)
0.89" (23mm)
1.22" (31mm)
