6. Measure the voltage at the Liebert SiteLink-E’s power input terminals to verify that the voltage
is within the operating range of 21.6-26.4 VAC.
7. Insert the screw terminal connector into the Liebert SiteLink-E’s power terminals.

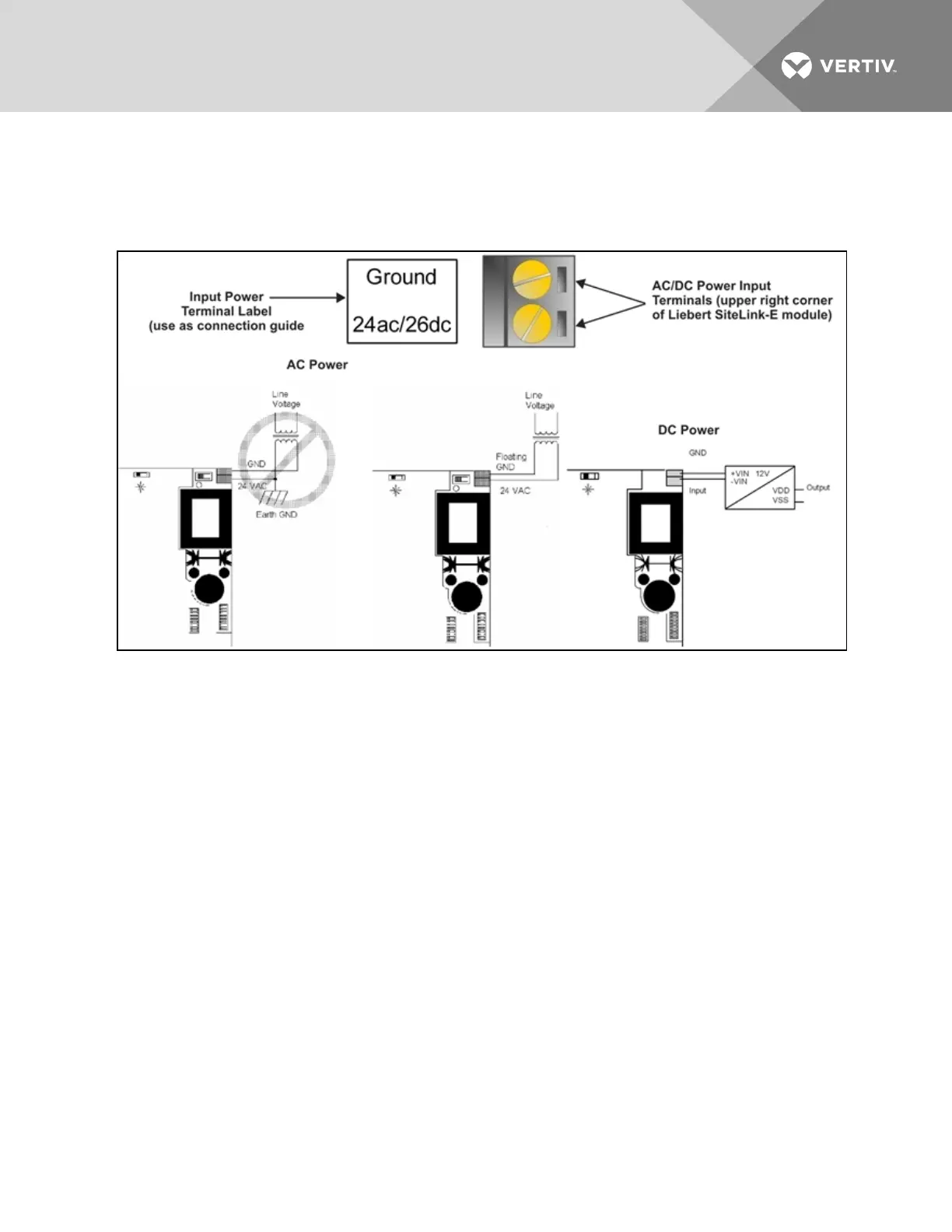

Figure 3.1 Power connections
