2 INSTALLING THE LIEBERT SITELINK-E MODULE
The Liebert SiteLink-E module comes in an enclosure for mounting on the wall or floor.
2.1 Preparations for Mounting the Module
2.1.1 Choose a Location to Install the Liebert SiteLink-E
The Liebert SiteLink-E module’s installation location must be easily accessible, within the allowable
cable-run distances for communication wiring and have about 2 in. (51mm) on all sides for wiring and
service.
• Refer to the following drawings in Enclosure Diagrams below:
Enclosure dimensions—overall on the next page
Enclosure dimensions—Wall mount on the next page
Enclosure dimensions—Floor mount on page9
2.2 Enclosure Diagrams

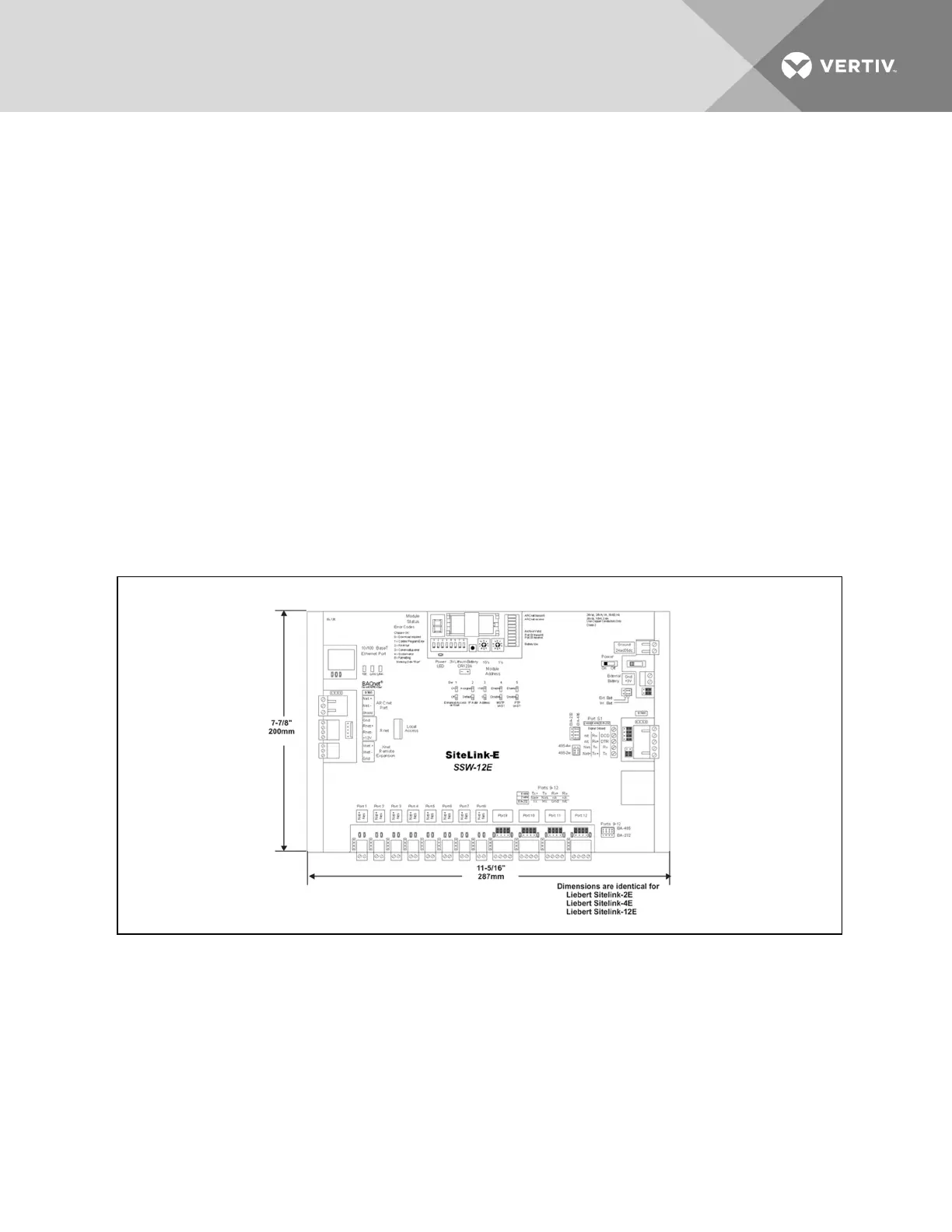

Figure 2.1 Module dimensions, without enclosure
Vertiv | Liebert® SiteLink-E™ Installation Manual | 7
