AC Load Distribution Disconnect Circuit Breakers (if equipped with Optional Inverter System)
The distribution shelf(s) contains front panel AC load distribution disconnect circuit breakers. For the NEMA output AC load
distribution shelf, there is a circuit breaker for each outlet. For the bulk output AC load distribution shelf, there is a circuit breaker for
each bulk output. See Figure 3.4.

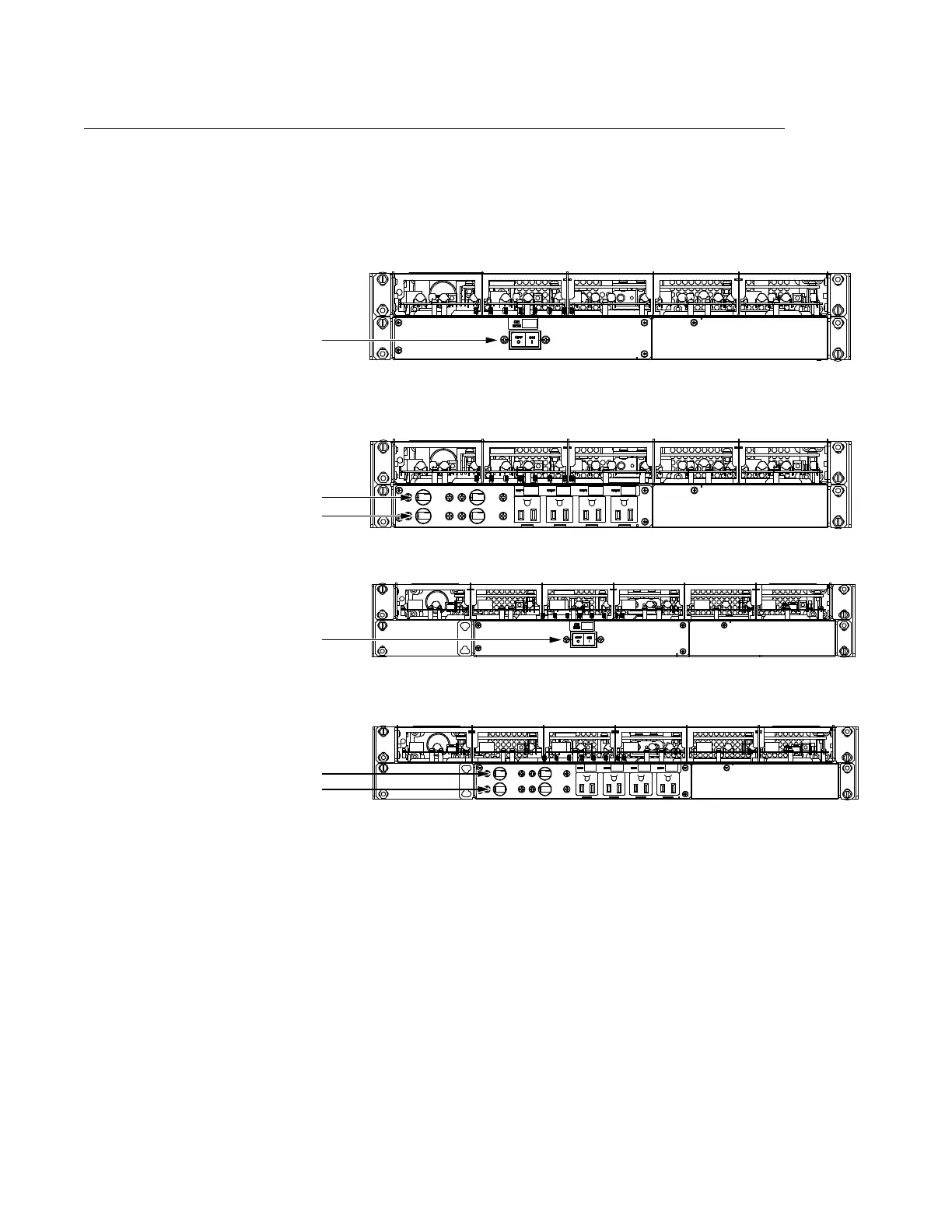

Figure 3.4 AC Load Distribution Disconnect Circuit Breakers (cont’d on next page)
Front
Front
Front
Front
Bulk Output Load Disconnect
70 A Circuit Breaker
Bulk Output Load Disconnect
70 A Circuit Breaker
NEM
A 5-15R Output Load Disconnect
15 A Circuit Breaker (each)
NEM
A 5-15R Output Load Disconnect
15 A Circuit Breaker (each)
NEM
A 5-15R Output Load Disconnect
15 A Circuit Breaker (each)
NEM
A 5-15R Output Load Disconnect
15 A Circuit Breaker (each)
582137100 List 50
582137100 List 51
582137100 List 52
582137100 List 53
