Vertiv™ NetSure™ 5100 Series -48 VDC Power System User Manual
Proprietary and Confidential © 2022 Vertiv Group Corp.
13. For List 26 only:
For List 33, two sets of converter polarity caution labels are provided loose. Based on the converter output voltage, apply the
correct label to right three converter slots of the expansion shelf: “-48 VDC OR +24 VDC” label (P/N 60037065) for use with
+24 VDC converters; “-48 VDC OR -58 VDC” label (P/N 60037064) for use with -58 VDC converters. A sample of this labeling
is provided in
Figure 4.7.

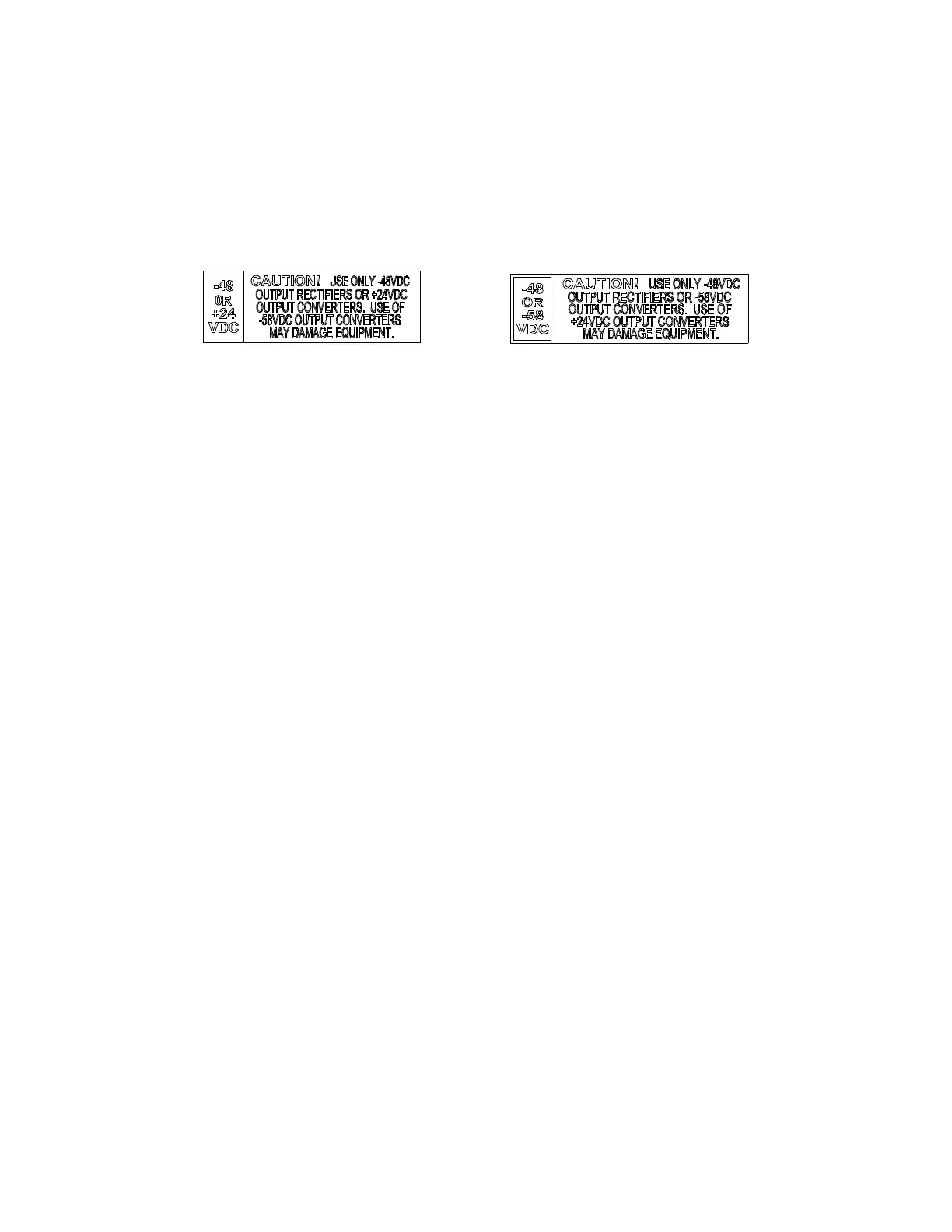

Figure 4.7 Caution Labels
60037065 (-48VDC OR +24VDC Label) 60037064 (-48VDC OR -58VDC Label)
