Appendix 4 Schematic Diagram 32
NetSure 531 A41, NetSure 531 A91 Subrack Power system User Manual
Battery 1
QFB1
Battery 2
QFB2
H1
CAN
RS1
QFD8
PL
Controller:
M820B
QFD5
DC Distribution Unit
H2
H3
H4
KMD1
LLVD Contactor
NPL
QFD4
KMD2
MA4C5U31
PD1
MB
AC Distribution Unit
Positive Busbar
QFD1
BLVD Contactor
Temperature Sensor
ST1
Temperature Sensor
ST2
Optional
L
QFA1
N
PE
User interface borad
M820B/M830B

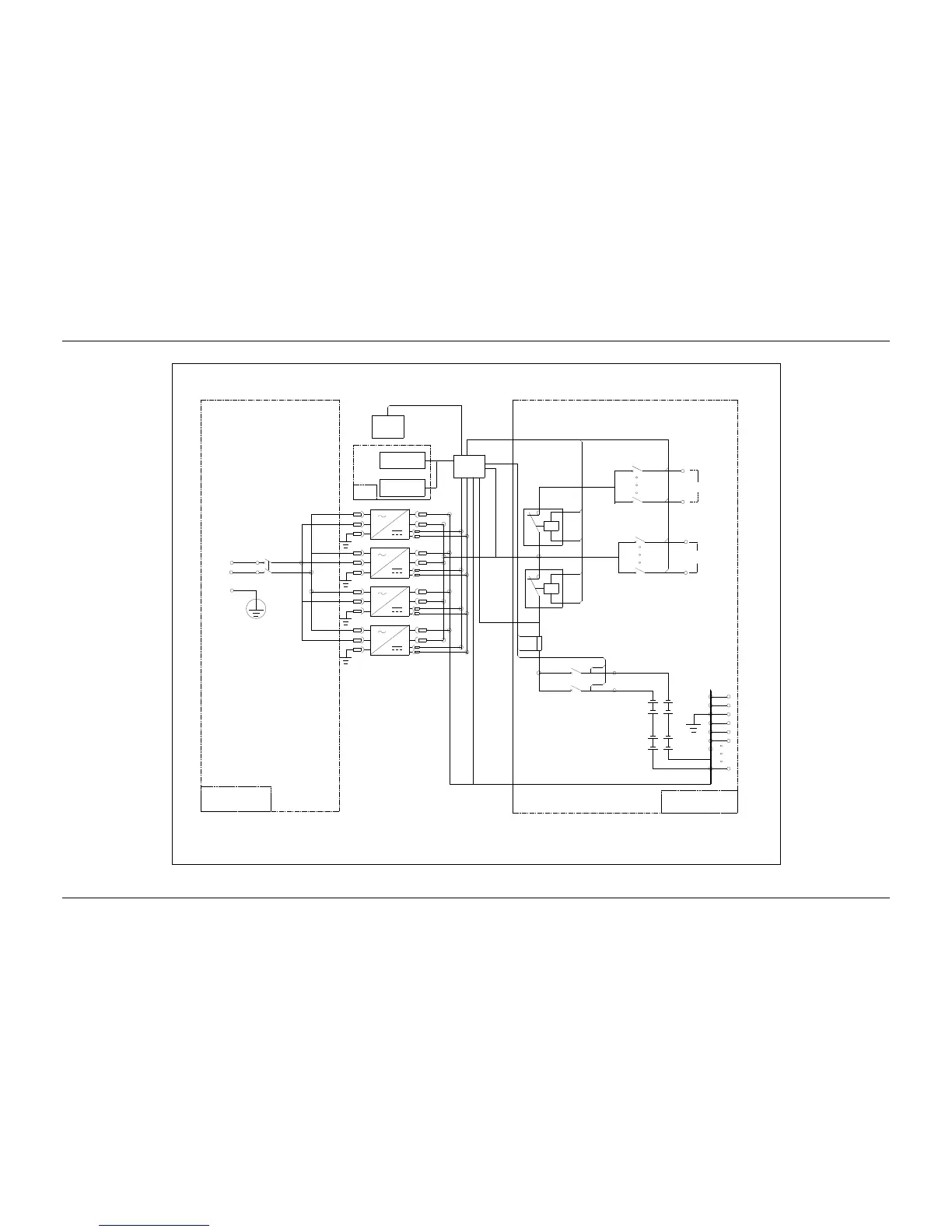

Figure 14 Schematic diagram of NetSure 531 A41-S3
